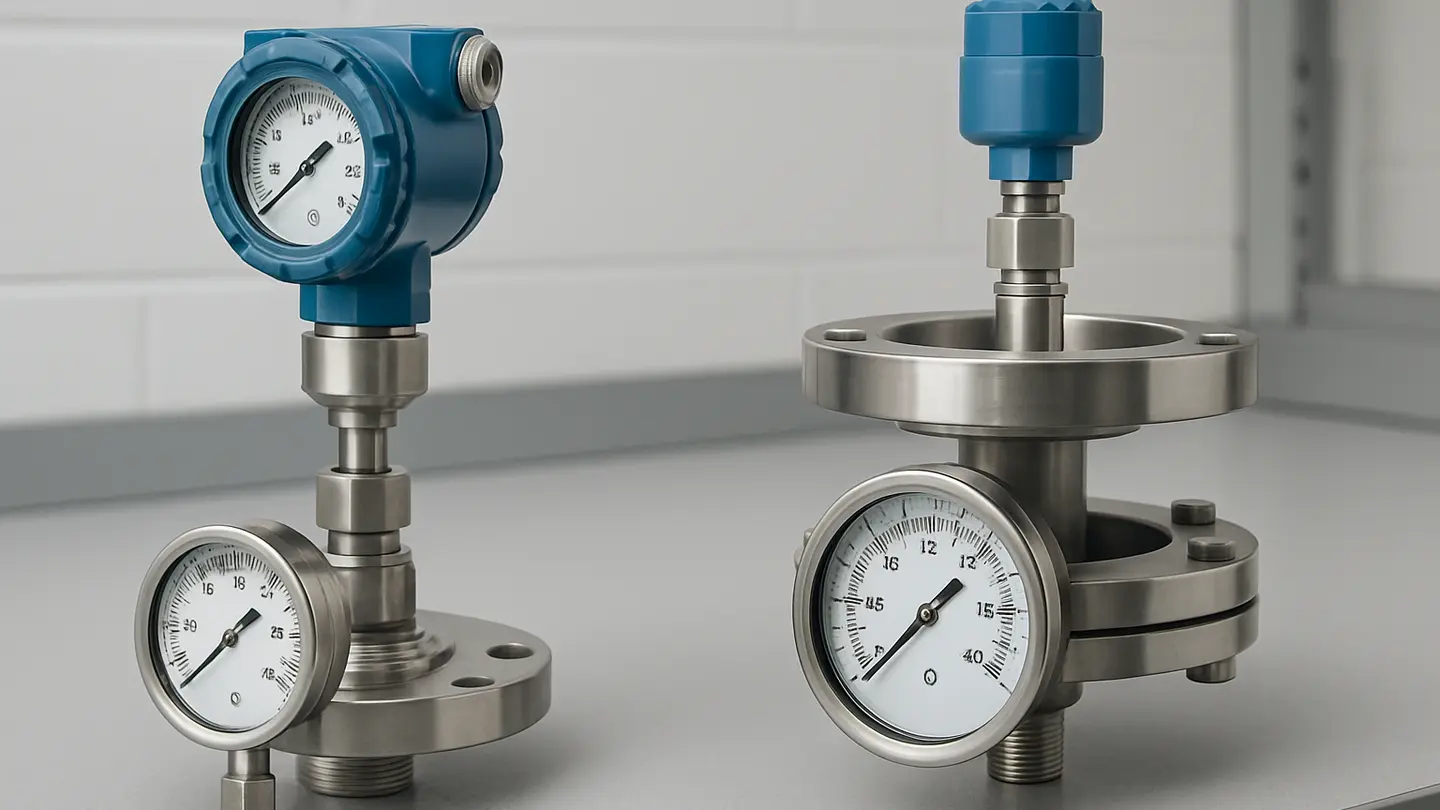

When an Isolation Ring Is the Wrong Choice

Where isolation rings work best

An isolation ring is usually a good fit when the main threat to a pressure instrument is clogging. In services with sludge, slurry, viscous liquids, fibrous material, or large suspended solids, a conventional small process connection can plug quickly. Once that happens, the pressure gauge, switch, or transmitter may no longer see true line pressure. The reading can lag, freeze, or become misleading even though the instrument itself is still functional.

This is the service range where isolation rings are most useful. They are common in water and wastewater treatment, mining, pulp and paper, and similar processes where the line contains material that would be difficult to measure through a narrow impulse line or a small diaphragm seal cavity. Typical examples include sludge transfer, slurry pipelines, thickened process streams, filtrate systems, and lines carrying solids that can settle or pack into dead spaces.

The basic design is inline. The isolation ring is installed between pipe flanges or in another inline configuration so that the process flows through the ring bore. One or more instruments can be mounted to the ring body. Depending on the assembly, this may include a pressure gauge for local indication, a pressure switch for alarm or control, or a transmitter for remote monitoring.

The sensing element is a flexible liner positioned around the inside diameter of the ring. Process pressure acts on this liner. As the liner deflects, it transfers pressure to a sealed fill-fluid system, commonly using silicone fill fluid. The fill fluid then transmits that pressure to the attached instrument. The instrument is therefore isolated from direct contact with the process media, while still responding to the pressure in the pipe.

Because the bore remains open to the flowing process, an isolation ring can reduce the dead-leg and plugging problems that occur with smaller instrument connections. The process does not need to enter a narrow gauge socket or long impulse line. In slurry service, that difference can be significant. A properly selected isolation ring can keep the pressure measurement active in lines where ordinary connections would require frequent cleaning.

The most suitable conditions are generally moderate. Isolation rings are associated with low-pressure slurry service rather than severe high-pressure applications. Many suitable applications are below about 160 psi, and isolation rings are often discussed as a practical solution for relatively low-pressure systems with ambient or moderate temperatures. The exact limit depends on the ring design, liner material, end-plate material, flange rating, fill fluid, instrument, and manufacturer ratings, but the general pattern is clear: isolation rings are strongest where clogging resistance matters more than extreme pressure or temperature capability.

That application profile is also the reason the question of when not to use an isolation ring matters. An isolation ring can be a very effective anti-clogging device, but it is not a universal isolator. If the process is chemically aggressive, the pipe is very large, the pressure is high, or the pressure span is extremely low, another isolation method may be more practical or more reliable.

Key limits of isolation rings

Isolation rings reduce clogging by placing a flexible sensing liner directly in the flow path, but that same construction creates limits. The process media contacts the liner and the ring end plates. The ring must match the pipe size. The assembly must be mechanically practical to install and remove. The pressure range must be compatible with the liner, fill system, and attached instrument. These are not minor details; they often determine whether the installation is maintainable.

A different isolation method, especially a diaphragm seal, may be more appropriate in three common situations:

• aggressive chemical service where wetted material compatibility is the dominant issue;
• very large piping where ring size, cost, availability, and handling become disadvantages;
• high-pressure service or very low pressure spans where the isolation ring may not provide the best containment or response.

The decision should not be based only on whether the fluid is dirty. It should consider process chemistry, pipe size, pressure range, temperature, instrument type, switch set point, flange class, installation space, maintenance access, and replacement logistics. A slurry line at modest pressure may be ideal for an isolation ring. A corrosive chemical line, a very large pipeline, or a system with a very low switch set point may call for a different approach.

Service with aggressive chemicals

Chemical compatibility is one of the most important reasons not to use an isolation ring. In an isolation ring, both the flexible liner and the end plates are wetted by the process. If either material is incompatible, the assembly may swell, soften, crack, corrode, leak, or lose calibration performance. The instrument may be isolated from direct process contact, but the isolation ring itself is still part of the pressure boundary and must survive the media.

Common liner materials include PTFE, Viton, Buna, EPDM, and natural rubber. These materials cover many water, wastewater, slurry, and general process applications, but they are not universal. Elastomers and polymers can be sensitive to solvents, oxidizers, oils, acids, caustics, temperature, and concentration. A material that works well in one slurry may fail quickly in another because the liquid phase is different.

The end plates also require attention. Common end-plate materials may include stainless steel, painted carbon steel, Acetal, CPVC, PTFE, and PVDF, depending on the ring design and size. These options can be adequate for many services, but aggressive chemicals may require alloys or specialty materials that are not commonly available in isolation-ring construction. Even when a special material can be provided, it may increase cost, extend lead time, or restrict the available size and flange configuration.

This is where diaphragm seals often have an advantage. A diaphragm seal is not automatically better for every dirty service, but it is commonly available with a wider range of corrosion-resistant wetted materials. Options may include Hastelloy C276, titanium, tantalum, Monel, Hastelloy B, and other alloys or coatings selected for specific chemical environments. That broader material range can make a diaphragm seal the more practical choice when corrosion, chemical attack, or permeation is the main problem.

The distinction is useful:

This does not mean isolation rings cannot be used in chemical service. Some applications are chemically compatible with available liners and end plates. However, the material review must include every wetted component, not just the instrument connection. The liner, end plates, gaskets, fill system boundary, fasteners where applicable, and connected piping must all be suitable for the chemical, concentration, temperature, pressure, and cleaning conditions.

For harsh chemical service, the safer selection process is to begin with compatibility and pressure-boundary requirements, then choose the isolation method. If common isolation-ring materials are marginal, a diaphragm seal with appropriate corrosion-resistant wetted parts may be the better engineering choice.

Very large pipe installations

Isolation rings are inline devices, so the assembly grows with the pipe. That is an advantage in smaller and moderate pipe sizes because the ring can provide a full-bore sensing arrangement with little opportunity for solids to plug an instrument tap. In very large pipe installations, however, the same geometry can become a disadvantage.

As pipe size increases, the isolation ring requires more material. Larger liners, larger end plates, larger bodies, and larger flange patterns all add cost. Availability may also become more limited. Large rings may require specialized components, custom fabrication, or longer lead times. A design that is routine in a smaller size may become expensive or difficult to source in a much larger size.

The benefit can also diminish. If the primary goal is to avoid clogging at one pressure measurement point, installing a large inline ring across the entire pipe diameter may be more hardware than the application requires. A local tap-off arrangement with an appropriate flush diaphragm seal may provide the required pressure measurement with less material, easier access, and simpler replacement.

Isolation rings over about 14 inches may introduce practical disadvantages in cost, availability, installation, removal, repair, and replacement. The ring may still be technically possible, but the total installed burden changes. The pipe may need to be opened to install or remove the ring. The assembly may require lifting equipment. Replacement may involve longer downtime. If the ring is damaged or the liner needs attention, the maintenance task can be more involved than replacing a smaller external seal assembly.

Design style can also be limited at larger diameters. Wafer-style isolation rings may be limited to about 20 inches. Larger sizes generally require bolt-through designs. That affects flange bolting, installation procedure, available space, and the way the assembly is handled during maintenance. Very large pipe sizes may also restrict material availability, flange class options, and ring designs. In some cases, the practical material choices for large rings may narrow to common metals such as 316L stainless steel or carbon steel, even if smaller sizes offer more options.

Handling is another practical issue. A heavy ring assembly can create shipping and installation concerns, especially when instruments remain attached. Around 25 pounds or more, the assembly may no longer be convenient to handle as a simple instrument accessory. The pressure gauge, switch, or transmitter mounted on the ring can be vulnerable to impact during shipment or lifting. Weight also affects how technicians support the assembly during bolting and alignment.

These issues do not make large isolation rings impossible. They simply change the trade-off. For a large slurry pipeline, an inline ring may still be justified if clogging is severe and other sensing methods fail. But the selection should account for more than measurement performance. It should include procurement time, spare-part strategy, lifting access, removal clearance, flange rating, material availability, and the cost of opening the line.

Generic alternatives for large piping include:

• tap-off connections fitted with flush flanged diaphragm seals;
• flanged diaphragm seals with flushing connections to help clear solids;
• saddle-style diaphragm seal designs for large pipe walls;
• remote-mounted transmitters connected through a suitable sealed system, where temperature and response requirements allow.

These alternatives can place the sensing diaphragm where it is accessible without requiring a full-diameter inline ring. They may also make it easier to select corrosion-resistant wetted materials or higher pressure ratings. The best choice depends on whether clogging, corrosion, pressure, access, or replacement cost is the controlling problem.

High pressure or extremely low pressure ranges

Pressure range is another major limit. Isolation rings are mainly intended for heavy slurry service at relatively low pressures. They are often associated with applications below about 200 psi, where the flexible liner and fill-fluid system can provide clog-resistant pressure transfer without the demands of high-pressure containment.

When pressure rises above about 200 psi, a traditional diaphragm seal should be considered, especially where containment risk is important. High pressure increases the mechanical demands on the liner, end plates, seals, and instrument connection. The consequences of leakage or failure also increase. In liquid slurry service, a leak can be messy and hazardous; in gas or compressed-air testing, stored energy can create additional safety concerns. High-pressure testing with air or gas should therefore be evaluated carefully rather than treated as equivalent to low-pressure liquid service.

A diaphragm seal may be more appropriate because it can be selected as a pressure-rated assembly for the specific service. Traditional diaphragm seals are available for applications over 1000 psi, and some designs are rated much higher depending on the selected seal, instrument, process connection, fill fluid, and pressure boundary materials. The point is not that every diaphragm seal is suitable for high pressure; it is that diaphragm seals are commonly offered in configurations intended for high-pressure selection, while isolation rings are generally tied to lower-pressure slurry applications.

Extremely low pressure can be a different kind of problem. A low-pressure instrument must respond to very small force changes. Any stiffness in the isolation element, fill-fluid effects, trapped air, temperature influence, mounting orientation, or added volume can become significant compared with the pressure span. With isolation rings, spans below about 15 psi may be challenging to calibrate. The assembly may work in some cases, but it should not be assumed to behave like a direct-connected low-pressure instrument.

Mechanical pressure switches are especially sensitive to this issue. A pressure switch needs enough force and movement to actuate repeatably at the set point. Mechanical switches with set points below about 6 psi may not respond reliably on isolation ring assemblies. Set points as low as 1 psi should not be assumed reliable. Even if a bench adjustment appears possible, field performance can be affected by installation position, process temperature, vibration, fill-fluid behavior, and the mechanical characteristics of the ring liner.

This is an important selection point. A user may choose an isolation ring to prevent plugging, then attach a low-pressure switch expecting precise low-set-point operation. If the set point is below the reliable operating range of the assembly, the switch may chatter, fail to actuate, actuate late, or show poor repeatability. In such cases, a different sensing arrangement may be required, such as a transmitter with an appropriate low-pressure range, a diaphragm seal designed for low-pressure service, or another level or pressure measurement method.

Temperature also interacts with pressure performance. Fill fluids expand and contract with temperature, and elastomeric or polymeric liners change stiffness as temperature changes. At moderate or ambient temperatures, these effects may be manageable. Near the limits of the liner, fill fluid, or instrument, they become more important. A high-temperature slurry, a cold outdoor installation, or a process with rapid temperature swings should be reviewed as a complete assembly rather than as separate components.

The practical rule is to avoid using an isolation ring simply because the process is dirty. Dirty service is only one part of the selection. For high pressure, a traditional diaphragm seal may offer better pressure-rated options. For very low pressure spans, the response and calibration behavior of the isolation ring assembly must be verified. For low switch set points, especially below about 6 psi, reliable actuation should not be assumed.

When an application is near any limit—pressure, temperature, chemical compatibility, pipe size, or switch set point—the pressure instrument manufacturer and the isolation-device manufacturer should be consulted. The review should cover the complete assembly: ring or seal, wetted materials, fill fluid, instrument range, switch set point, flange rating, installation orientation, process temperature, cleaning procedure, and expected maintenance method. That system-level review is the best way to decide when not to use an isolation ring and when a diaphragm seal or another pressure measurement arrangement is the better choice.
