Pressure Transducers: How They Work, Types, and Uses

What Is a Pressure Transducer?

A pressure transducer is an instrument that measures the pressure of a gas or liquid and converts that measurement into an electrical signal. The signal can then be displayed, recorded, transmitted to a control system, or used to trigger an alarm.

Unlike a purely mechanical pressure gauge, which usually moves a needle across a dial, a pressure transducer provides an electrical output that can be used by programmable logic controllers (PLCs), building-management systems, data-acquisition equipment, indicators, and other electronic devices. This makes transducers particularly useful where pressure must be monitored continuously or incorporated into automated control.

Most pressure transducers contain three functional parts:

A sensing element that responds physically to applied pressure.
A conversion method that translates the pressure-caused change into an electrical change.
Signal-conditioning electronics that produce a standardized output signal.

For example, pressure may deflect a diaphragm by a very small amount. That deflection can change electrical resistance, capacitance, or another measurable electrical property. Internal electronics convert the resulting change into an output such as 4–20 mA, 0–10 Vdc, or a millivolt-per-volt signal.

How Does a Pressure Transducer Work?

A pressure transducer works by exposing a sensing element to process pressure. The sensing element is commonly a diaphragm: a thin, flexible structure that moves slightly when pressure is applied. The amount of movement depends on the pressure level and the mechanical design of the sensor.

That small mechanical change is converted into an electrical signal. The method varies by sensor technology, but the overall sequence is similar:

Process pressure reaches the pressure port.
The pressure acts on a diaphragm or other sensing element.
The sensing element changes shape, position, resistance, capacitance, or another electrical characteristic.
Electronics interpret that change and scale it to the transducer’s calibrated output range.
The receiving device uses the output for indication, logging, alarms, or control.

For a transducer calibrated from zero to a specified full-scale pressure, the output generally changes in proportion to the applied pressure. A 4–20 mA transducer, for instance, commonly uses 4 mA to represent the low end of its calibrated range and 20 mA to represent full-scale pressure.

Common output formats include:

4–20 mA current loops: Widely used in industrial systems because current signals can be transmitted over relatively long cable runs and are less susceptible to some voltage-drop effects than voltage outputs. A current below the normal live-zero value may also help indicate certain wiring or device faults.
DC voltage outputs: Common examples include 0–5 Vdc and 0–10 Vdc. These outputs can be practical for shorter runs and systems designed to accept voltage inputs.
Millivolt-per-volt outputs: Often used with unamplified strain-gauge-based sensing elements. These signals require a stable excitation supply and compatible instrumentation.

The output type must match the input requirements of the controller, indicator, recorder, or data-acquisition system. A pressure transducer may measure correctly while still producing unusable system data if, for example, a voltage-output device is connected to a current-only input channel or if the supply voltage is unsuitable.

Where Are Pressure Transducers Used?

Pressure transducers are used wherever continuous pressure information is needed for monitoring, alarms, process control, equipment protection, or performance analysis. They can measure the pressure of air, water, hydraulic oil, refrigerants, gases, steam, chemicals, and other media when the wetted materials are compatible with the process.

Common applications include:

HVAC and refrigeration: Monitoring duct pressure, chilled-water pressure, refrigerant conditions, filter restrictions, and room pressurization.
Food and pharmaceutical processing: Tracking process pressure in sanitary piping, vessels, filtration systems, and packaging equipment.
Mobile machinery: Measuring hydraulic pressure in construction, agricultural, material-handling, and off-road equipment.
Hydraulic and pneumatic systems: Monitoring pumps, actuators, compressors, air receivers, and fluid-power circuits.
Semiconductor manufacturing: Supporting tightly controlled gas, vacuum, chemical-delivery, and process-environment systems.
Water and wastewater systems: Monitoring pump discharge, line pressure, tank levels derived from hydrostatic pressure, and filter condition.
Industrial automation: Providing feedback to control loops that regulate valves, pumps, compressors, and other equipment.

In many of these installations, the sensor is exposed to demanding conditions. Temperature extremes can shift the response of the sensing element and electronics. Vibration and mechanical shock can affect mounting hardware, connections, and long-term stability. Moisture ingress, corrosive media, electrical noise, and pressure spikes are also important considerations.

A suitable installation accounts for these operating conditions rather than selecting a transducer only by its nominal pressure range.

What Pressure Ranges Can Pressure Transducers Measure?

Pressure transducers are available for an exceptionally broad range of measurements. Low-pressure instruments can begin around 0.1 inches of water, while specialized high-pressure transducers can extend to approximately 72,000 psi.

The appropriate range depends on the process. A low-pressure ventilation application may require the ability to resolve small pressure differences, while a hydraulic test system may operate at pressures that would immediately damage a low-range sensor.

The selected calibrated range should be close enough to the expected operating pressure to provide useful measurement resolution, but high enough to accommodate normal fluctuations and expected overpressure events. Selecting an unnecessarily large range can make small process changes harder to detect. Selecting a range that is too low may expose the sensor to overload or permanent damage.

Important range-related considerations include:

Normal operating pressure: The pressure expected during ordinary operation.
Maximum process pressure: The highest pressure expected during startup, shutdown, transients, or fault conditions.
Overpressure capability: The amount of pressure the transducer can tolerate above its calibrated range without damage or unacceptable performance change.
Burst pressure: A higher limit associated with physical failure risk. This is not an operating limit.
Pressure spikes: Short-duration surges that can occur in hydraulic systems, pump operation, valve closure, or compressor systems.

Performance is not determined by range alone. Achievable accuracy, stability, resolution, and response can vary with sensor design, pressure reference, temperature, media, and installation conditions.

What Types of Pressure Can a Transducer Measure?

A pressure measurement always requires a reference point. Pressure transducers can be designed to measure absolute, gauge, vacuum, or differential pressure. The correct type depends on the process calculation and the way the sensor is constructed.

For example, a vessel-pressure measurement may only need pressure relative to local atmosphere, while a vacuum process may require an absolute reference. Differential pressure is useful when the condition of interest is the difference between two process locations rather than pressure at a single point.

Absolute Pressure

Absolute pressure is measured relative to a perfect vacuum reference. A perfect vacuum represents the theoretical absence of matter, including air.

An absolute pressure transducer uses a sealed reference that is intended to represent vacuum. Because its reference does not change with weather, altitude, or local barometric pressure, changes in atmospheric pressure do not affect the reading.

Absolute measurement is useful where atmospheric variation could affect the process calculation. Examples include vacuum systems, gas-density calculations, some aerospace applications, and processes in which pressure must be evaluated against a fixed physical reference.

Absolute pressure is often expressed with units such as psia, meaning pounds per square inch absolute.

Gauge Pressure

Gauge pressure is measured relative to local atmospheric pressure. A gauge-pressure transducer has a reference side that is vented, directly or indirectly, to the surrounding atmosphere.

A positive gauge-pressure reading indicates that process pressure is above atmospheric pressure. For example, a compressed-air line operating above ambient pressure is commonly measured in gauge pressure.

Gauge measurement is appropriate for many everyday industrial tasks, including hydraulic line pressure, pump discharge pressure, compressed-air systems, and water distribution lines. Gauge pressure is commonly expressed as psig.

Atmospheric pressure can vary with weather and elevation, but those changes are normally irrelevant when the process itself is also referenced to the surrounding atmosphere.

Vacuum Pressure

Vacuum pressure describes pressure below local atmospheric pressure. Atmospheric pressure serves as the reference for this measurement.

Vacuum can be represented in several ways depending on the industry and instrument design. A vacuum reading may show how far below atmospheric pressure a system is operating, while an absolute-pressure measurement shows the remaining pressure relative to a perfect vacuum.

Vacuum pressure measurement is used in applications such as packaging, material handling, aspiration systems, vacuum pumps, and certain laboratory or manufacturing processes. The required reference should be confirmed carefully, since a gauge-vacuum reading and an absolute-pressure reading describe related but different values.

Differential Pressure

Differential pressure is the pressure difference between two points in a system. A differential pressure transducer has separate high-pressure and low-pressure connections and measures the difference between them.

Differential pressure is commonly used to evaluate conditions across components or process points, including:

Filters and strainers
Flow restrictions, such as orifice plates
Heat exchangers
Pump suction and discharge points
Pressurized rooms and clean spaces
Vessels with liquid-level measurements based on hydrostatic head

For example, rising differential pressure across a filter can indicate that the filter is becoming loaded or restricted. In airflow systems, differential pressure can help evaluate fan performance, duct conditions, or room-pressure relationships.

How Accurate Are Pressure Transducers?

The necessary accuracy of a pressure transducer depends on the application. General monitoring may tolerate more measurement uncertainty than closed-loop process control, safety-related monitoring, research work, or calibration tasks.

A published accuracy specification may include several contributors to error, such as:

Nonlinearity: Deviation from an ideal straight-line relationship between pressure and output.
Hysteresis: A difference in output at the same pressure depending on whether pressure is increasing or decreasing.
Repeatability: The ability to produce similar results when the same pressure is applied repeatedly under similar conditions.
Zero offset: Output present when the applied pressure is at the low end of the calibrated range.
Span error: Error in the difference between low-end and full-scale output.
Long-term stability: Output change over time under specified operating conditions.
Temperature effects: Changes in zero, span, and other characteristics caused by temperature variation.

Temperature can materially affect installed measurement performance. A transducer calibrated under controlled conditions may behave differently when exposed to hot process media, cold outdoor equipment, or changing ambient temperatures. The pressure connection can also transfer process heat to the sensor.

Accuracy should therefore be evaluated as part of the complete measurement system. The pressure range, operating temperature, mounting arrangement, electrical noise environment, calibration practices, and receiving instrument all influence the quality of the final measurement.

What Sensing Technologies Do Pressure Transducers Use?

Pressure transducers use different sensing technologies to translate pressure-induced mechanical or electrical changes into usable electrical signals. No single sensing method is best for every application. Technology selection depends on the required pressure range, media compatibility, environmental exposure, output needs, and performance priorities.

The sensing method can influence:

Accuracy and repeatability
Long-term stability
Sensitivity at low pressure
Suitability for high-pressure service
Resistance to shock and vibration
Temperature behavior
Wetted-material compatibility
Response time and overload tolerance

Common pressure-sensing approaches include strain-gauge, piezoresistive, capacitive, piezoelectric, and thin-film designs. The following technologies illustrate how sensor construction can be matched to different pressure conditions.

CVD Thin-Film Sensor Technology

Chemical vapor deposition (CVD) thin-film sensing is used in some pressure transducers intended for mid- to high-pressure measurement. In this approach, thin resistive sensing elements are deposited onto a suitable substrate. Pressure-induced strain changes the electrical resistance of the sensing structure.

Thin-film designs may be selected where consistent pressure measurement is required under demanding pressure conditions. Their construction can be well suited to applications involving hydraulic pressure, industrial machinery, fluid-power systems, and other services where pressure levels are substantially higher than those encountered in low-pressure airflow measurement.

As with any sensing technology, the full suitability of a thin-film transducer depends on more than pressure range. Media compatibility, temperature, mounting stresses, electrical connection quality, and exposure to vibration or shock remain important.

Silicon Capacitive MEMS Sensor Technology

Silicon capacitive microelectromechanical systems (MEMS) technology can be suitable for exceptionally low-pressure measurement. A capacitive sensor detects pressure-related movement by measuring a change in capacitance between conductive elements.

Low-pressure applications often require the sensor to detect very small changes reliably. Silicon capacitive MEMS designs may be used in tasks such as:

Airflow measurement
Aspiration monitoring
Room-pressure control
Filter monitoring
Leak detection
Low-pressure pneumatic systems

For these applications, selection may prioritize accuracy, repeatability, and stability at the low end of the measurement range. Installation details are especially important because small pressure signals can be affected by tubing restrictions, leaks, mounting orientation, temperature changes, and pressure pulsation.

Key Factors When Selecting a Pressure Transducer

Selecting a pressure transducer starts with the process requirement rather than the output signal or physical package alone. A technically suitable device must measure the right pressure reference, survive the operating environment, and communicate correctly with the receiving system.

Key factors include:

Pressure type: Determine whether the application requires absolute, gauge, vacuum, or differential pressure.
Normal and maximum pressure: Select a calibrated range appropriate for expected operation while considering transients and safe overpressure conditions.
Required accuracy: Base the requirement on the purpose of the measurement, whether it is monitoring, control, protection, or calibration.
Output signal: Confirm compatibility with the controller, indicator, recorder, or data-acquisition hardware. Consider whether the system accepts 4–20 mA, voltage, or millivolt-per-volt inputs.
Process media: Verify that wetted materials are compatible with the gas, liquid, vapor, or chemical being measured.
Temperature: Consider both ambient temperature and process-media temperature, including their effect on sensor performance and electronics.
Environmental exposure: Account for moisture, dust, corrosion, washdown, outdoor exposure, and electromagnetic interference.
Vibration and shock: Mobile equipment, pumps, compressors, and machinery may require a sensor and mounting arrangement that can tolerate mechanical stress.
Electrical connections: Check supply requirements, connector type, cable routing, grounding, shielding, and ingress protection needs.

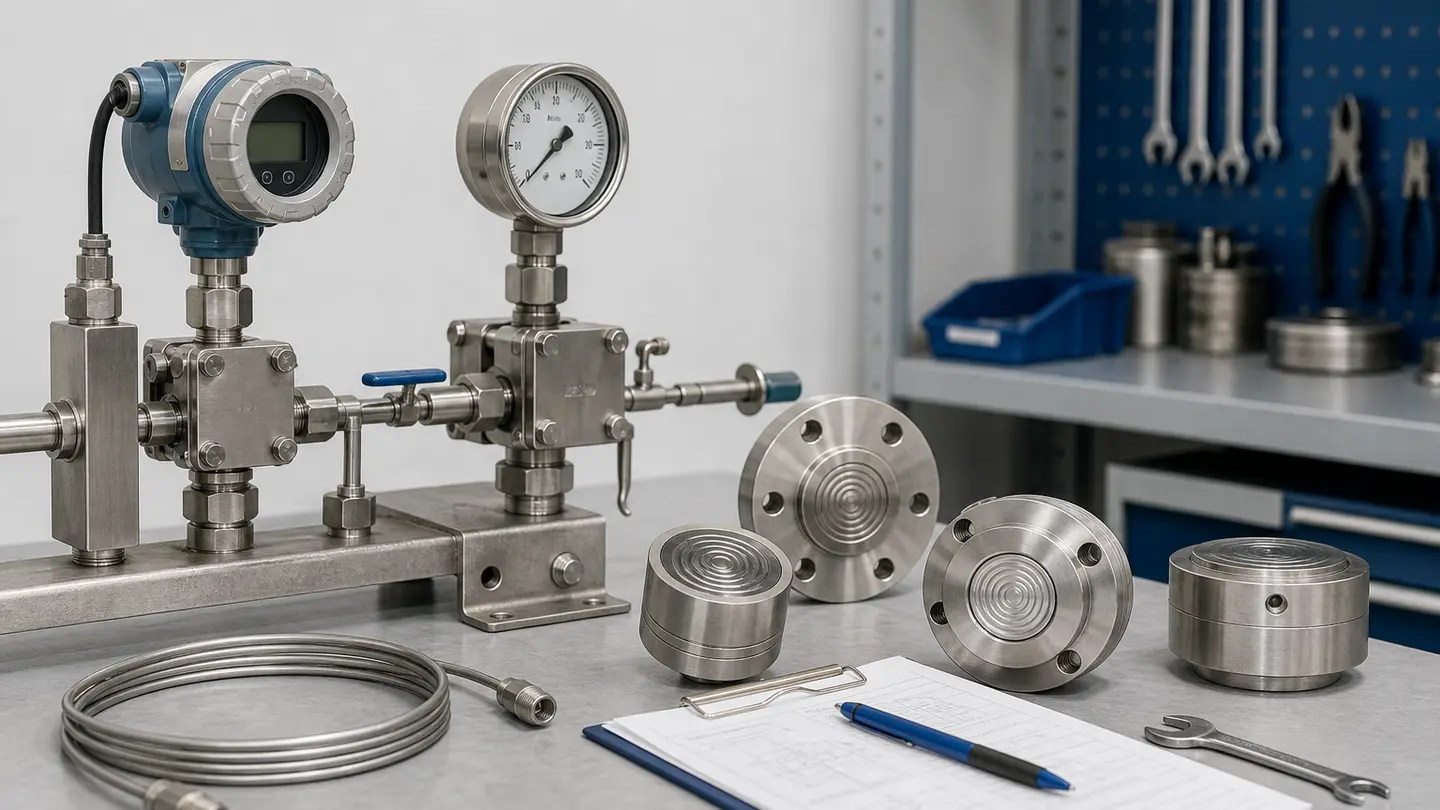

Mechanical connection: Confirm process-port size, thread type, sealing method, and whether isolation hardware or remote mounting is needed.

A pressure transducer is most effective when it is treated as part of a complete measurement loop. Correct pressure reference, range, sensor technology, installation, wiring, and control-system configuration all contribute to reliable pressure data.
