Selecting Electrical Connections for Pressure Transducers

Why the electrical connection matters in pressure transducer performance

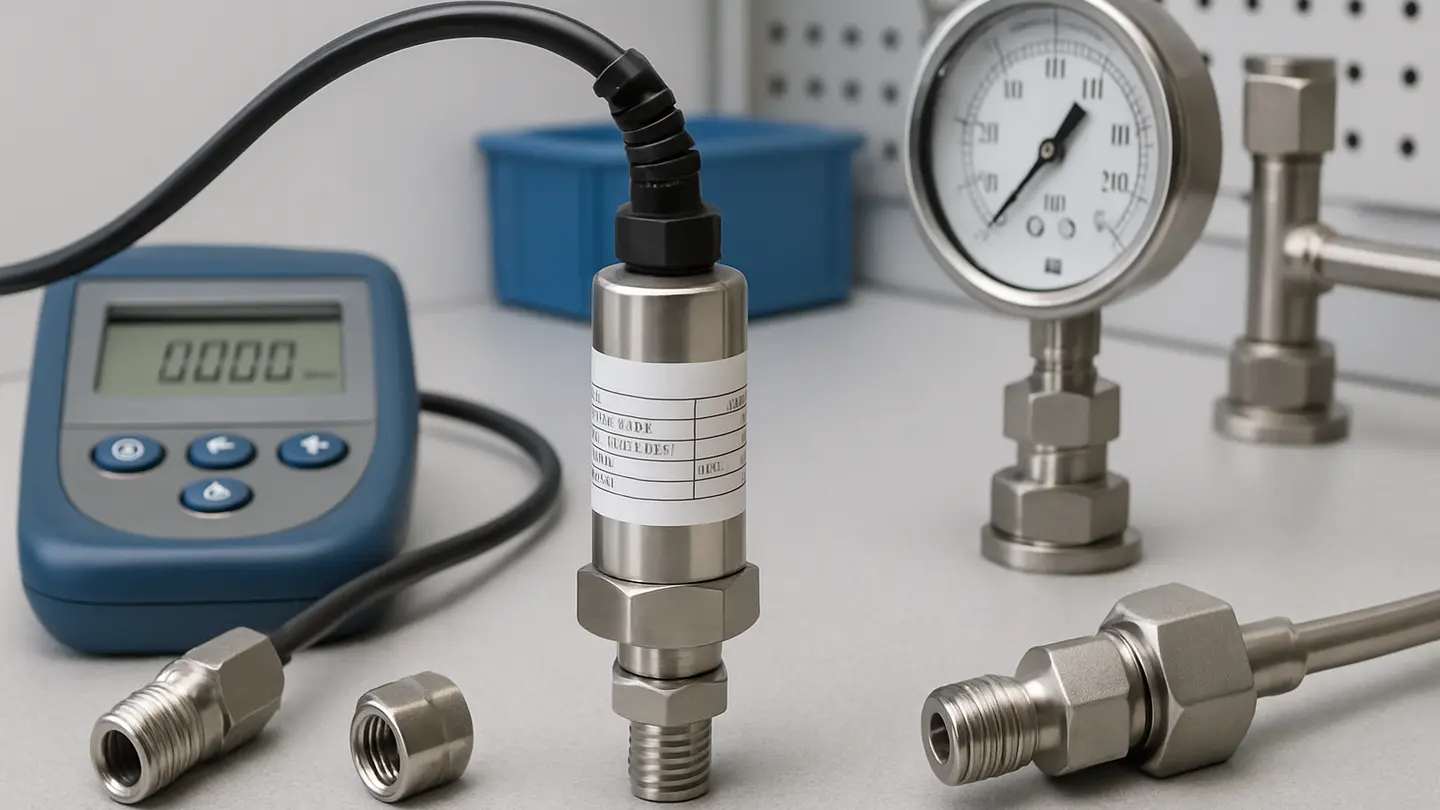

A pressure transducer converts pressure at the process connection into an electrical output that can be read by a controller, indicator, data acquisition system, or safety circuit. The electrical connection is the interface that makes this possible. It supplies the transducer with the required excitation or loop power and carries the pressure-dependent output signal back to the receiving equipment. Because it sits between the sensor electronics and the rest of the control system, the pressure transducer electrical connection is not a minor accessory; it is part of the measurement chain.

A connector that is poorly matched to the application can create problems that look like sensor drift, process instability, or control system faults. Loose contacts may cause intermittent readings. Moisture inside a connector may increase leakage current, corrode terminals, or create short circuits. Damaged insulation may allow signal conductors to contact the shield, housing, or adjacent pins. Contaminants such as oil mist, conductive dust, cleaning chemicals, or salt spray can attack contact surfaces and sealing materials. In severe cases, the result is not only signal loss but complete sensor failure.

This is especially important in demanding pressure measurement applications. Mobile hydraulic equipment, compressors, pumps, outdoor machinery, process skids, and exposed industrial installations often subject connectors to vibration, shock, thermal cycling, moisture, debris, and chemical contamination. Vibration can gradually loosen threaded couplings or strain unsupported wiring. Thermal cycling can expand and contract connector bodies, seals, and cable jackets at different rates, eventually reducing sealing effectiveness or contact pressure. Repeated wetting and drying can draw moisture into small gaps, particularly if the connector was not designed for the exposure or was installed without proper strain relief.

Connector selection therefore affects several practical outcomes:

• Signal reliability: Stable contact resistance and proper shielding help preserve the intended voltage, current, millivolt, or digital signal.
• Environmental sealing: The connector and cable entry must resist the liquids, solids, humidity, and contaminants present at the installation.
• Serviceability: A connector that can be disconnected and reconnected safely may simplify sensor replacement, calibration, or troubleshooting.
• Mechanical durability: The connection must tolerate cable movement, vibration, bending, and handling without loosening or damaging contacts.
• Safety: In classified or hazardous areas, the connection method must be suitable for the risk of explosive gases, vapors, or combustible dust.

The correct choice depends strongly on where and how the transducer is installed. A pressure sensor mounted inside a clean indoor control panel has very different connection requirements from one installed on an outdoor hydraulic power unit. Washdown areas may require resistance to hose-directed water and cleaning chemicals. Exposed machinery may need rugged connectors, secure locking mechanisms, and cable protection. Hazardous locations may require equipment and wiring methods designed to reduce ignition risk or contain an internal explosion, depending on the area classification and applicable codes.

No single connector style is best for all pressure transducers. Cable glands, integral cables, DIN-style connectors, circular connectors, conduit connections, and terminal enclosures each have advantages and limitations. The best choice is the one that matches the transducer output, supply requirements, environmental exposure, installation layout, maintenance practices, and safety classification.

Environmental factors that determine connector protection requirements

The operating environment should be defined before selecting the connector. A connection that works reliably in a dry laboratory or indoor panel may fail quickly when exposed to rain, washdown, dust, temperature extremes, sunlight, or high humidity. The connector body, coupling mechanism, cable jacket, seals, gaskets, potting materials, and contact plating all contribute to environmental performance.

Start with the basic exposure conditions. Determine whether the pressure transducer will be installed indoors or outdoors. Outdoor installations may face rain, ice, windblown dust, ultraviolet exposure, condensation, and wide temperature swings. Equipment installed near compressors, engines, hydraulic systems, or pumps may also be exposed to oil, fuel, coolant, and vibration. Food, beverage, pharmaceutical, and general washdown environments may expose the connection to hose-directed water and cleaning agents. Bulk handling, woodworking, grain processing, and powder handling systems may involve fine dust that can enter poorly sealed connectors or create hazardous combustible dust conditions.

Two common ways to describe enclosure and connection protection are NEMA ratings and IEC ingress protection ratings, usually written as IP ratings. These systems are not identical, but both help users interpret how well an enclosure or connection resists contact hazards, solids, liquids, and environmental contaminants. When reviewing a pressure transducer datasheet, it is important to check whether the rating applies to the whole instrument, the electrical connector, the cable assembly, or only when the mating connector is properly installed. A high rating on the sensor body does not guarantee equivalent protection if the mating cable connector, gasket, or cable entry is not rated for the same environment.

NEMA ratings are widely used in North America to describe enclosure protection for specific environmental conditions. Several ratings are especially relevant when selecting a pressure transducer electrical connection:

NEMA 4 and 4X are often considered when moisture, outdoor exposure, or washdown is a primary concern. The distinction between them matters: if the installation includes corrosive liquid splash, marine exposure, chemical cleaning, or corrosive gases, corrosion resistance may be as important as water resistance. A connector may keep water out initially but still fail over time if metallic parts corrode or seals degrade.

NEMA 7 and NEMA 9 are safety-related classifications for hazardous locations. They should not be treated as general ruggedness ratings. A pressure transducer installed where flammable gases, vapors, or combustible dust may be present must be selected as part of a complete hazardous-area design, including the sensor, connection method, power supply, wiring, barriers if used, and installation practices. The electrical connection can affect safety because arcs, hot surfaces, or fault energy at the connection may become ignition sources if the equipment is not suitable for the classified environment.

IEC ingress protection ratings use the familiar “IP” format followed by two digits. The first digit indicates protection against access to hazardous parts and ingress of solid objects such as dust. The second digit indicates protection against water ingress. For example, an IP67 rating indicates dust-tight construction and protection against temporary immersion in water up to 1 meter for 30 minutes. This does not automatically mean the connector is suitable for high-pressure washdown, steam cleaning, chemical exposure, continuous submersion, or all outdoor conditions. It means the device has met the defined IP67 test conditions.

Because ratings are test-based descriptions, they must be interpreted in relation to the actual application. A connector on a pressure transducer mounted horizontally may collect water differently than one mounted vertically. A cable that is pulled tight may compromise a seal even if the connector is rated for water ingress. A connector that is frequently disconnected may lose protection if the gasket is damaged or contamination enters the mating surfaces. An IP or NEMA rating should therefore be considered a minimum selection filter, not the only design decision.

Temperature and humidity also deserve close attention. Heat can harden cable jackets, accelerate seal aging, and increase electrical leakage. Cold can make plastics and elastomers less flexible, increasing the risk of cracking or loss of compression at seals. Rapid temperature changes can cause condensation, especially when warm humid air enters a connector and then cools. High relative humidity can promote corrosion and reduce insulation resistance, even without direct water spray.

Always compare the pressure transducer datasheet with the real operating conditions. Check the rated ambient temperature range, media temperature limits if heat can conduct through the process connection, storage temperature, humidity tolerance, and any derating notes. The electrical connection and cable assembly should be rated for the same environment as the sensor, or for the more severe local condition if the connector is exposed to additional heat, washdown, chemicals, sunlight, or mechanical abuse.

In some installations, the connector also needs protection from the process environment even though it is not in direct contact with the process fluid. For example, a hydraulic transducer may be exposed externally to oil spray, while a compressor pressure transducer may see heat, vibration, and condensate. A process plant installation may involve corrosive vapors around the housing. These secondary exposures can be enough to cause connector failure if they were not considered during selection.

Environmental selection is ultimately about preventing predictable failure modes. If water is expected, select for sealing. If corrosion is expected, select materials and ratings that address corrosion. If dust is expected, select a dust-tight design. If vibration is expected, select secure locking and strain relief. If hazardous gases or dust may be present, select equipment and wiring methods suitable for the area classification rather than relying on a general-purpose connector.

Installation and wiring considerations before choosing a connector

Once the environmental requirements are understood, the connector must be matched to the installation layout and wiring scheme. A connector can have the right ingress rating and still be the wrong choice if it does not provide the correct number of contacts, does not fit the available space, cannot be routed through the machine, or does not support the required wiring practice.

Begin with the transducer output type and power requirement. Pressure transducers may provide millivolt, voltage, current, or digital outputs, depending on the design. Each output type has wiring implications. Voltage-output pressure transducers commonly use a three-wire configuration: supply positive, supply common, and signal output. A 4–20 mA current-loop pressure transducer system commonly uses a two-wire configuration, where the same loop supplies power and carries the current signal. Some devices require additional conductors for case ground, shield termination, diagnostics, temperature output, digital communication, or multiple signals.

The connector must have enough contacts for all required conductors without forcing unsafe or unreliable wiring practices. If a shield is required, decide whether it terminates at the connector shell, a dedicated pin, the receiving instrument, or one end only according to the system grounding plan. In electrically noisy environments, such as near variable-frequency drives, motors, solenoids, ignition systems, or high-current switching devices, shielding and grounding can be important to measurement stability. The connector and cable assembly should support the intended shielding method rather than leaving the shield floating unintentionally or connected in a way that creates ground-loop problems.

Pin assignment also matters. A connector style may be physically common, but different manufacturers or product families can assign supply, signal, and ground to different pins. Never assume that two pressure transducers with the same connector body are wired identically. Incorrect wiring can produce no output, saturated output, unstable readings, or permanent damage. During replacement or retrofit work, compare the old and new datasheets and verify pinout, supply voltage, output type, and load requirements before energizing the circuit.

Cable routing is another major selection factor. A transducer mounted on compact machinery may not have enough clearance for a straight connector and cable bend. In that case, a right-angle connector or molded cable assembly may reduce stress. Conversely, a right-angle connector may trap debris or water in some orientations, so the environmental and mechanical layout should be reviewed together. The cable bend radius should be compatible with the space available, especially for shielded, armored, high-temperature, or chemically resistant cable types that may be less flexible.

Routing through conduit, cable trays, junction boxes, harnesses, and control panels can also influence connector choice. A conduit connection may be preferred where wiring must be mechanically protected or where local electrical codes require conduit methods. A molded cable with a circular connector may be better suited for mobile equipment harnesses where quick replacement and vibration resistance are important. A terminal enclosure may be convenient for field wiring but may require more installation care to maintain sealing and strain relief. In a dense control panel, removable connectors can simplify service, but they must still be protected from accidental disconnection and electrical noise.

Strain relief is critical for long-term reliability. The electrical contacts inside a connector are not intended to support cable weight, absorb repeated flexing, or resist pull forces by themselves. Without proper strain relief, vibration and movement can fatigue conductors, loosen terminals, deform seals, or wear contact surfaces. Cable clamps, glands, harness supports, flexible conduit, and proper routing all help keep mechanical stress away from the connector interface.

The cable should be routed so it is not used as a handle, tie point, or support for the transducer. Avoid sharp bends immediately at the connector. Keep the cable away from hot surfaces, pinch points, moving machinery, abrasive edges, and areas where personnel may step on or pull it. Where movement is unavoidable, use cable rated for flexing and provide a loop or support method that controls the bend location. For mobile hydraulic equipment, secure routing is especially important because vibration and repeated motion can turn a minor installation weakness into an intermittent electrical fault.

The mechanical installation and wiring should be checked together. Pressure transducer troubleshooting often begins with questions about whether the process connection is properly installed and whether the electrical connection is correctly wired. A loose process fitting can create pressure leakage or unstable pressure at the sensing element, while a loose electrical connector can create unstable output even when the process pressure is steady. If both are installed poorly, the symptoms can be confusing.

Common wiring-related symptoms include no output, output fixed at a high or low value, noisy readings, intermittent signal dropouts, and readings that change when the cable is moved. These symptoms can be caused by reversed polarity, incorrect supply voltage, a mismatched input type, excessive loop resistance, damaged cable shielding, poor grounding, or loose contacts. They can also occur when moisture or contamination enters the connector. Choosing the correct connector reduces the likelihood of these issues, but correct installation is still required.

Serviceability should be considered early. If the transducer is in a location that requires periodic removal, calibration, cleaning, or replacement, a connectorized design may reduce downtime compared with hardwired leads. However, frequent disconnection also increases the need for durable contacts, protected mating surfaces, and replacement seals or caps where appropriate. If the sensor is in a location that should rarely be opened, a sealed cable assembly may reduce the number of field-mated interfaces, but it can make replacement less convenient if the cable must be routed through conduit or harnesses.

Finally, consider documentation and standardization. Using a consistent connector style across similar machines or skids can simplify spare parts, training, and troubleshooting. However, standardization should not override application requirements. A connector chosen for an indoor panel should not be reused on outdoor washdown equipment unless it also meets the environmental and mechanical requirements. Likewise, a connector selected for general industrial service should not be assumed suitable for hazardous locations without the proper ratings and installation method.

A practical selection process is to work in this order: define the environment, confirm safety classification, identify the output and wiring configuration, determine the number of contacts and shielding needs, review cable routing and mechanical stress, then choose a connector and cable assembly with suitable ratings. This approach treats the pressure transducer electrical connection as part of the measurement system rather than an afterthought. The result is a connection that supports accurate readings, reliable operation, maintainable wiring, and safer installation in the intended service conditions.
