Pressure Transducer Calibration Methods

Why Pressure Transducers Need Calibration

Pressure transducers convert applied pressure into an electrical output, such as a voltage, current loop signal, or digital value. The sensing element responds to pressure, and internal electronics condition that response for a controller, indicator, recorder, or data acquisition system. Ideally, the output matches the pressure defined by the device range and specification. In practice, that relationship can shift over time.

Calibration is needed because the output can drift away from the true pressure value. Drift may be gradual, but in control, safety, laboratory, or quality-sensitive applications it can affect decisions. A reading that is slightly high or low may change pump operation, alarm response, leak test results, or product acceptance.

Common causes of drift include:

Mechanical stress: Overpressure events, pressure spikes, or installation strain can affect the sensing element or mechanical structure.
Vibration: Equipment vibration can fatigue mechanical connections and influence electrical or sensing stability.
Temperature exposure: Repeated heating and cooling can shift material properties, seals, electronics, and compensation behavior.
Environmental conditions: Moisture, corrosion, contamination, and aggressive media can degrade sensor performance.
Normal wear and aging: Electronic components, diaphragms, seals, and mechanical interfaces may change with time and use.

Calibration compares the pressure transducer output with a known reference standard and documents the difference. The device under test is exposed to known pressure values, and its output is recorded at each point. The difference between expected and measured output is the deviation or error.

If the measured error is within the application tolerance, the transducer may simply be documented as found. If the error exceeds the allowable specification, adjustment may be performed if the design permits it. Adjustment changes the output so it better agrees with the reference at selected points. Good practice distinguishes between the as-found condition before adjustment and the as-left condition after adjustment.

The reference standard used for calibration must be more accurate than the device being tested. A common guideline is the 4:1 accuracy ratio, often called the 4:1 rule or test uncertainty ratio. Under this rule, the calibration reference should typically be at least four times more accurate than the device under test. For example, if a pressure transducer is rated at ±1% of full scale, the calibration standard should be accurate to ±0.25% of full scale or better for that range.

This ratio reduces the risk that reference uncertainty will hide or distort the true error of the transducer. Individual quality systems, industry standards, or risk requirements may call for different uncertainty ratios, but the 4:1 guideline is widely used as a practical baseline.

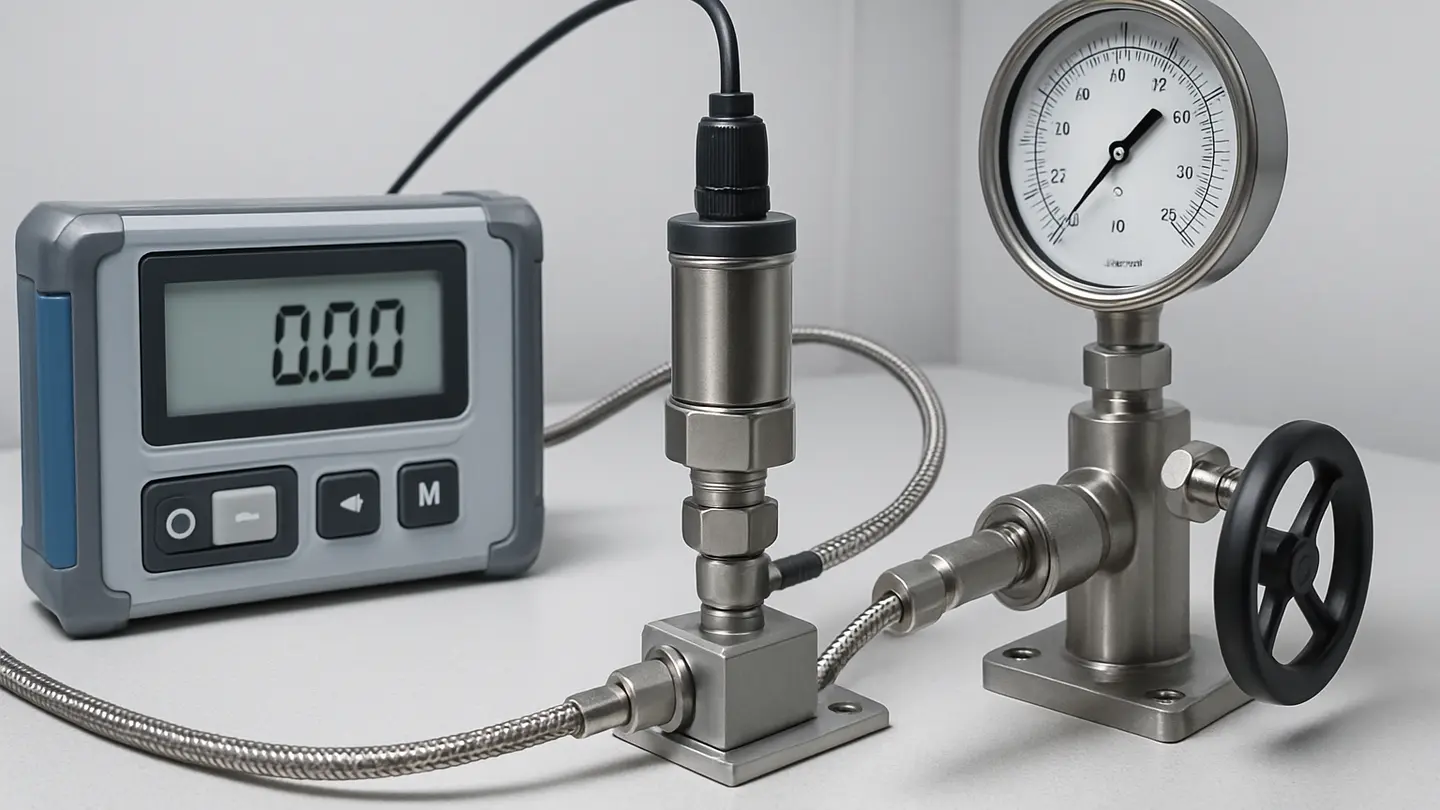

How Zero and Span Adjustments Fit into Calibration

Many pressure transducer calibration procedures focus on two key endpoints: zero and span. These define the lower and upper ends of the measurement range and strongly influence how the output is interpreted.

Zero offset is the output error at the low-pressure end of the range. For a gauge pressure transducer, this is commonly checked at atmospheric pressure when the pressure port is vented. For an absolute pressure transducer, zero may not be physically attainable without vacuum equipment, so the low calibration point is selected according to the procedure. For compound ranges, zero offset may refer to the output error at the full vacuum end.

Span offset is the output error at the full-pressure end of the measurement range. It reflects how closely the output matches the expected signal when the rated upper pressure is applied.

For example, a 4–20 mA transducer over a defined pressure range should produce the correct low-end signal at zero or the specified low pressure, and the correct high-end signal at full scale. If the low-end output is shifted, the device has a zero error. If the upper-end output does not match the expected full-scale value after zero is considered, the device has a span error.

Zero and span can drift because pressure cycling, temperature changes, vibration, and component aging can affect the sensing element, electronics, bridge circuits, amplifiers, compensation networks, or digital correction coefficients.

Zero and span adjustability allows a technician to correct endpoint errors without necessarily sending the transducer back to the manufacturer. Depending on the model, adjustments may be made using potentiometers, digital communication, push buttons, software, or external non-contact methods. The method must match the device design and manufacturer instructions.

Endpoint adjustment is not complete characterization. A two-point calibration can align the low and high endpoints, but it may not reveal errors between those points. Critical applications may require intermediate test points to evaluate linearity, hysteresis, repeatability, and upscale versus downscale performance.

Why Zero and Span Adjustability Is Useful

Field-accessible zero and span correction is useful because many pressure measurement problems involve correctable endpoint drift. When a transducer has shifted slightly but remains mechanically and electrically sound, an on-site adjustment can bring it back within tolerance. This can reduce downtime, avoid unnecessary replacement, and limit outside service.

In process facilities, removing a pressure transducer may require depressurizing a line, breaking a process connection, obtaining work permits, or interrupting production. If the instrument can be safely isolated and checked in place or near the point of use, field calibration can be faster than factory return. This is valuable for equipment that supports continuous operation, environmental monitoring, testing systems, or safety-related alarms.

Zero and span adjustment is most effective when the main error is a shift at the endpoints. It improves agreement at the low and high ends of the calibrated range, but it does not necessarily correct every performance issue. A transducer may still have:

Linearity error: The output curve does not follow the ideal straight-line relationship across the range.
Hysteresis: The output differs depending on whether the pressure is approached from below or above.
Repeatability error: The output varies when the same pressure is applied repeatedly.
Intermediate-point error: The endpoints agree, but midrange values remain outside tolerance.

For this reason, calibration procedures often include more than two test points when accuracy requirements are strict. A zero and span adjustment can be part of the process, but final acceptability depends on the full test results and the specification being applied.

The quality of zero and span calibration also depends on the reference standard. Pressure calibration standards are commonly described as primary or secondary standards.

A primary standard establishes pressure from fundamental physical principles rather than by comparison to another pressure instrument. A deadweight tester is a common example because it generates pressure from a known force applied over a known area.

A secondary standard is calibrated against a primary standard or higher-level reference, then used to calibrate working instruments. Digital pressure calibrators, precision pressure gauges, and pressure controllers are often used as secondary or working standards when their accuracy and traceability are suitable.

Traceability is important when records are used for quality systems, audits, regulated processes, or customer documentation. A traceable calibration connects the measurement result through an unbroken chain of comparisons back to recognized standards, such as national standards maintained by NIST in the United States. Traceability does not by itself guarantee that a transducer is accurate in use, but it supports confidence in the reference, uncertainty statement, and compliance record.

Manual Laboratory Calibration Using a Deadweight Tester

A deadweight tester is a traditional high-accuracy tool for pressure transducer calibration. It is widely recognized as a primary pressure calibration standard because it generates pressure from known physical quantities:

Pressure = Force / Area

In a deadweight tester, calibrated masses apply a known force to a piston with a known effective area. The resulting pressure is applied to the connected device under test. Because the pressure is derived from mass, gravity, and piston area, the method can provide very high accuracy when corrections and operating conditions are properly controlled.

A typical manual laboratory calibration using a deadweight tester follows a structured process:

Review the transducer specifications. The technician identifies the pressure range, output type, accuracy rating, supply voltage, pressure medium compatibility, and allowable overpressure limits.
Select the calibration points. Test points may include zero, full scale, and intermediate values. Some procedures include both increasing and decreasing pressure sequences to evaluate hysteresis.
Connect the transducer to the pressure system. The pressure port is connected to the deadweight tester using fittings and tubing rated for the required pressure. The system must be leak-tight and compatible with the pressure medium.
Connect the electrical measurement equipment. A voltage meter, current loop calibrator, readout, or data system measures the output. The power supply and wiring must match the transducer requirements.
Apply known pressure points. Known masses are loaded on the tester, and the piston is operated according to the instrument procedure. Pressure is allowed to stabilize before readings are taken.
Compare output with expected values. At each pressure point, the measured electrical output is compared with the expected output for the transducer range.
Record the deviation. The difference between actual and expected output is documented. These results form the calibration record.
Adjust if permitted and required. If the device has accessible zero and span adjustment and the error exceeds acceptable limits, the technician may adjust the output. After adjustment, the points are repeated and recorded.

Manual deadweight calibration can provide excellent accuracy and traceability, but it requires controlled conditions and trained handling. The piston and weights must be clean and maintained. The tester must be level and operated correctly. Environmental effects, local gravity, pressure medium, temperature, and piston behavior may need to be considered depending on uncertainty requirements.

For these reasons, deadweight tester calibration is often performed in a laboratory or controlled calibration area rather than directly in the field. It is well suited for scheduled calibration, reference standard verification, and applications where high confidence and traceable documentation are required.

Laboratory calibration is not always practical between scheduled intervals. In many plants and service environments, technicians use portable handheld pressure calibrators, digital test gauges, pressure pumps, or loop calibrators for field verification. These tools may not replace high-accuracy laboratory calibration in every case, but they can confirm whether a transducer remains within expected limits during service. The selected field standard still needs suitable accuracy, range, compatibility, and traceability for the intended check.

The choice between laboratory calibration and field verification depends on the application. Critical custody transfer, safety, laboratory, and quality measurements may justify more rigorous methods. General monitoring points may be managed with periodic field checks and scheduled laboratory calibration.

Pressure Transducer Calibration in Hazardous Locations

Pressure transducers are often installed where hazardous gases, vapors, or combustible dust may be present. Examples include oil and gas facilities, chemical plants, fuel handling systems, grain processing, mining, and some wastewater or pharmaceutical environments. In these locations, calibration must address both measurement accuracy and ignition risk.

A hazardous-area pressure transducer may require specific protection ratings and installation methods based on the area classification. The required protection concept depends on the type of hazard, likelihood of an explosive atmosphere, and applicable electrical codes or standards.

Common hazardous-location protection concepts include:

Explosion-proof equipment: Designed so that if ignition occurs inside the housing, the enclosure contains the ignition and prevents propagation to the surrounding atmosphere.
Intrinsically safe equipment: Designed to limit electrical energy so that sparks or thermal effects are insufficient to ignite the hazardous atmosphere under specified conditions.
Non-incendive equipment: Designed to restrict energy under normal operating conditions so that ignition is not expected during normal use.

Calibration activities can affect these protections. Opening a housing, removing covers, connecting test equipment, or adjusting internal screws may be unsafe or noncompliant in a hazardous area. Even if the transducer has the correct rating, the calibration equipment used with it must also be suitable for the area or isolated through approved barriers and procedures.

Supporting equipment may include:

Portable pressure calibrators
Digital test gauges
Loop calibrators
Multimeters
Power supplies
Communication interfaces
Pressure pumps or regulators

If any of these devices are brought into a classified area, their ratings and installation method matter. A general-purpose power supply or handheld meter can create an ignition risk if used improperly. In some cases, calibration must be performed only after the area is made safe, equipment is isolated, or hot-work and gas-free procedures are completed.

Manufacturer documentation is essential. The installation manual, control drawing, certificate, wiring instructions, and calibration procedure define how the device may be used while maintaining certification. Substituting tools, opening enclosures, or changing wiring methods without approval can invalidate the protection concept.

Technicians should also consider mechanical safety. Pressure lines may contain hazardous process fluids, high pressure, or trapped energy. Before calibration, the process connection should be isolated, depressurized, and vented according to site procedures. Electrical safety and process safety must be treated together.

External Magnetic Calibration for Hazardous-Area Transducers

Some hazardous-area pressure transducers are designed with external magnetic calibration systems for zero and span correction. The purpose is to allow adjustment without opening the enclosure or exposing internal electrical connections.

In a typical magnetic calibration arrangement, the housing has marked locations that correspond to calibration functions. A specified magnetic tool is placed near these points to enter calibration mode, change a setting, or confirm an adjustment. Internal magnetic sensors or switches detect the tool position and command the electronics to perform the related action.

This approach can be useful in hazardous or outdoor locations because it avoids removing covers or accessing internal controls. If the device is designed and certified for this method, the enclosure remains closed during endpoint adjustment. That can help preserve explosion-proof integrity, environmental sealing, and ingress protection ratings when the procedure is performed exactly as approved.

Magnetic calibration capability must never be assumed. It is specific to the manufacturer, model, certification, and firmware or electronics design. A transducer that looks similar externally may not support magnetic adjustment, or it may support it only under certain installation conditions. The correct tool, marked locations, timing, power conditions, and pressure sequence must be verified in the product documentation.

A general magnetic calibration sequence may involve applying a known low pressure, activating the zero command, applying a known full-scale pressure, activating the span command, and verifying the output at selected points. The actual sequence can vary significantly by model. Some devices may require a hold time, confirmation step, or defined order of operations. Others may restrict adjustment ranges to prevent accidental miscalibration.

External magnetic calibration does not remove the need for a suitable pressure reference. The transducer still must be compared against a known standard with adequate accuracy. The magnetic tool only provides a safer or more convenient way to command the adjustment.

Operational Benefits of Magnetic Adjustment

External magnetic adjustment is non-invasive because calibration changes can be made without opening the pressure transducer housing. This can provide several operational advantages when the device is designed and certified for the method.

One advantage is preservation of enclosure integrity. Opening an enclosure in the field can expose seals, threads, electronics, and terminal compartments to moisture, dust, or contamination. If covers are not reinstalled correctly, environmental protection may be reduced. A closed-housing adjustment helps maintain sealing, including rated ingress protection, when approved by the manufacturer.

Another advantage is reduced calibration time. Accessing internal controls may require removing covers, obtaining permits, disconnecting wiring, or moving the instrument to a safer location. Magnetic adjustment can shorten endpoint correction by allowing the technician to make changes from outside the enclosure. This is helpful for instruments mounted outdoors, at height, or in process areas with limited access.

Safety can also improve because open electrical access is minimized. In hazardous locations, exposed terminals, internal switches, and adjustment screws can create compliance and ignition concerns. A non-contact external method reduces the need to disturb certified barriers or flame paths. Even so, the pressure source, reference gauge, electrical readout, communication device, and power supply must still be properly rated for the area or isolated with approved barriers.

Magnetic adjustment can support long-term measurement stability by making periodic endpoint correction more practical. If technicians can verify and correct zero or span without removing the device, calibration is more likely to be performed on schedule. Repeatable procedures help maintain consistent records over time.

The limitation is that magnetic adjustment is still primarily an endpoint correction method. It cannot automatically fix mechanical damage, contamination, severe sensor drift, poor installation, blocked pressure ports, or nonlinear behavior across the range. If a transducer fails intermediate calibration points after zero and span are corrected, it may require further evaluation, repair, replacement, or factory service.

For hazardous-area work, the controlling rule is always the approved documentation. The pressure transducer, magnetic tool, portable calibrator, power source, barriers, wiring, and work procedure must be suitable for the location classification. When performed according to the manufacturer’s instructions and site safety requirements, external magnetic calibration can provide a practical way to maintain pressure transducer calibration while preserving safety and enclosure integrity.
