How Pressure Is Measured: Types, Units, Ratings, and Instruments

How Is Pressure Measured?

Pressure is the amount of force distributed over a unit area. It is expressed by the relationship:

P = F/A

Where:

• P = pressure
• F = force applied perpendicular to a surface
• A = area receiving that force

For a given force, pressure increases when the contact area decreases. Conversely, spreading the same force across a larger area reduces pressure.

Pressure measurement instruments do not always measure force directly. Many convert pressure into a measurable physical change, such as movement of a diaphragm, deflection of a Bourdon tube, displacement of a liquid column, or a change in an electrical signal.

Pressure units vary by measurement system, industry, country, and application. The SI derived unit is the pascal (Pa), equal to one newton per square metre:

1 Pa = 1 N/m²

Because one pascal is small for many industrial applications, kilopascals and megapascals are often more practical.

Which Units Are Used for Pressure Measurement?

Several unit families remain common in pressure measurement. A specification should identify both the numerical unit and the pressure reference.

Pressure suffixes are important because they state the reference used for the reading. For example:

• psia means pounds per square inch absolute, referenced to a perfect vacuum.
• psig means pounds per square inch gauge, referenced to local atmospheric pressure.
• psid means pounds per square inch differential, representing the difference between two pressure points.

A value reported simply as “psi” can be ambiguous unless the context makes the pressure reference clear.

What Counts as High or Low Pressure?

There is no universal boundary between high and low pressure. Those terms are relative to the system, the process medium, and the instrument being considered.

For example, 15 psi may be considered a meaningful or relatively high pressure in a low-pressure ventilation or gas-handling application. The same 15 psi would be low in a hydraulic circuit that normally operates at much higher pressure. A vacuum process may treat a small pressure change as significant even though the numerical change would appear minor in another industry.

Instrument selection should therefore begin with the actual operating conditions:

• Normal and maximum process pressure
• Pressure reference: absolute, gauge, vacuum, compound, or differential
• Expected pressure fluctuations and pulsation
• Temperature and surrounding environment
• Process-medium compatibility
• Potential overpressure or pressure spikes
• Required readability, accuracy, and output signal

A pressure range should be selected so normal operation is readable and the instrument is not routinely exposed to its upper limit.

How Does a Manometer Measure Low Pressure?

A manometer measures pressure by observing the displacement of a liquid column. A simple U-tube manometer contains liquid in a U-shaped tube with one side connected to the process and the other side open to atmosphere, connected to another process point, or sealed as a reference.

When no pressure difference exists between the two sides, the liquid levels are equal. When pressure is applied to one side, it pushes the liquid downward in that leg and raises the liquid in the other leg.

The vertical difference between the two liquid surfaces corresponds to the pressure difference. This is why low pressures are often expressed in units such as inches of water column, millimetres of water, inches of mercury, or millimetres of mercury.

Manometers are especially useful for low differential pressures because even a small pressure difference can create a visible liquid-height change. Their limitations include sensitivity to orientation, liquid density, vibration, temperature effects, and the practical difficulty of remote or automated reading.

What Types of Pressure Can Be Measured?

Pressure is classified by its reference point. The main types are:

• Absolute pressure
• Gauge pressure
• Vacuum pressure
• Compound pressure
• Differential pressure

Choosing the correct reference is fundamental when specifying a gauge, sensor, transducer, or transmitter. A technically accurate instrument can still produce an unsuitable reading if its pressure reference does not match the application.

What Is Absolute Pressure?

Absolute pressure is measured relative to a perfect vacuum, which is the zero point of the absolute-pressure scale. Absolute pressure cannot be negative.

Atmospheric pressure is itself an absolute pressure. At sea level, it is commonly approximated as about 14.7 psia, although actual atmospheric pressure changes with altitude and weather conditions.

Absolute pressure measurement is useful when atmospheric variation would affect the process or calculation. Typical examples include:

• Vacuum systems
• Barometric and environmental measurements
• Gas-density calculations
• Sealed process systems
• Leak testing
• Certain laboratory and semiconductor processes

An absolute-pressure sensor uses a sealed vacuum reference rather than an atmospheric vent.

What Is Gauge Pressure?

Gauge pressure is measured relative to local atmospheric pressure. If a vessel is open to the surrounding atmosphere, it has zero gauge pressure because its internal pressure matches ambient pressure.

Positive gauge pressure means the process pressure is above atmospheric pressure. A common industrial pressure gauge on a compressed-air receiver, water line, or hydraulic system normally displays gauge pressure.

Gauge pressure is widely used because operators often need to know how much pressure exists above ambient conditions rather than the total absolute pressure.

What Is Vacuum Pressure?

Vacuum pressure describes pressure below the surrounding atmospheric pressure. It is commonly displayed as a negative gauge-pressure value or as a vacuum level increasing from atmospheric pressure toward a perfect vacuum.

For example, a gauge-pressure reading below zero indicates that the process is at a lower pressure than local atmosphere. Inches of mercury are commonly used for vacuum indication, particularly in equipment maintenance and some industrial applications.

Vacuum terminology can be confusing because a “higher vacuum” means a lower absolute pressure. For critical work, the required reference and units should be stated explicitly.

What Is Compound Pressure?

Compound pressure covers a range that includes both vacuum and positive pressure. A compound gauge may display negative gauge pressure below atmospheric pressure and positive gauge pressure above it.

These instruments are useful where a process can cross atmospheric pressure during normal operation. Examples include pump suction and discharge systems, refrigeration service, tank evacuation and pressurization, and systems that alternate between vacuum and pressure.

A compound range avoids changing instruments when the expected process pressure moves through zero gauge pressure.

What Is Differential Pressure?

Differential pressure, commonly abbreviated DP or ΔP, is the pressure difference between two points:

ΔP = P₁ − P₂

A differential-pressure instrument has two sensing connections and measures the difference between them rather than pressure relative to atmosphere or vacuum.

Common applications include:

• Monitoring pressure drop across filters
• Measuring flow through restrictions such as orifice plates
• Determining liquid level in closed vessels
• Comparing inlet and outlet pressure across equipment
• Monitoring heat exchangers, compressors, and piping sections

A rising filter differential pressure can indicate that the filter is becoming loaded. In flow applications, the relationship between differential pressure and flow depends on the flow element and fluid conditions, so the DP measurement may require additional compensation or calculation.

Which Pressure Ratings Matter When Selecting an Instrument?

A pressure range alone does not fully define whether an instrument is suitable. Important ratings include static pressure, maximum working pressure, single-sided static pressure, proof pressure, and burst pressure.

These ratings describe different conditions:

• Continuous operating capability
• Temporary exposure without unacceptable performance change
• Containment or structural failure limit

They must not be treated as interchangeable. The manufacturer’s product documentation should be reviewed for the exact definition, conditions, temperature limitations, test method, and applicable standards.

What Is Static Pressure?

Static pressure is fluid pressure considered independently of fluid motion. In a pressure-measurement context, it can also describe the line pressure acting on an instrument.

This distinction is particularly important for differential-pressure instruments. A transmitter may measure only a small differential pressure while both sensing ports are exposed to a much higher common line pressure.

For example, a device measuring a small pressure drop across a filter may have substantial pressure on both its high- and low-pressure sides. The instrument must withstand the line pressure on each side as well as accurately measure the intended differential range.

What Is Maximum Working Pressure?

Maximum working pressure, often called MWP, is the highest pressure an instrument is intended to withstand continuously under stated operating conditions.

MWP is an operating limit, not a short-duration survival rating. Temperature, process medium, mounting method, vibration, pulsation, and fitting ratings can affect the practical limit for an installed assembly.

Maximum working pressure differs from proof pressure and burst pressure. An instrument should not be selected on the assumption that a higher proof or burst rating allows continuous operation above its stated MWP.

What Is Single-Sided Static Pressure?

Single-sided static pressure applies mainly to differential-pressure instruments. It is the pressure that may be applied to one sensing side while the opposite side is vented to atmosphere or otherwise at much lower pressure.

This condition can occur during installation, maintenance, valve sequencing, blocked impulse lines, or an unbalanced process condition. It may be more severe for the sensing element than equal pressure applied to both ports.

Exceeding the single-sided static-pressure rating can damage the element, cause permanent zero shift, or degrade measurement performance. Installation procedures should account for pressure equalization and isolation requirements.

What Is Proof Pressure?

Proof pressure is a temporary pressure exposure that an instrument can withstand without unacceptable permanent change in performance. The permitted duration and acceptable post-exposure condition depend on the product specification.

Proof pressure is not a normal operating pressure. It is intended to indicate resistance to occasional overpressure events within stated conditions, not a target for routine use.

After proof-pressure exposure, an instrument may be required to remain functional and within a stated performance limit. The exact allowable change must be taken from the manufacturer’s documentation.

What Is Burst Pressure?

Burst pressure is the pressure at which a pressure-containing assembly is no longer expected to contain the process medium. It is a failure-related limit, not a usable operating point.

Instruments should never be operated near their burst-pressure rating. A burst event can release hazardous fluid, damage equipment, and create risks for personnel.

Burst pressure is distinct from both maximum working pressure and proof pressure. Definitions, test conditions, and safety factors vary by instrument design and applicable requirements, so product documentation and relevant standards should be checked before installation.

Where Are Pressure Measurement Instruments Used?

Pressure measurement supports safety, performance, control, and diagnostics across many sectors.

In residential and commercial equipment, pressure instruments may monitor water systems, boilers, pumps, compressed-air equipment, HVAC duct pressure, refrigeration circuits, and gas appliances. Required ranges depend on the specific design and service conditions.

OEM equipment uses pressure sensing for functions such as pneumatic control, mobile machinery, fluid-power systems, packaging equipment, test equipment, and vehicle subsystems. These applications may prioritize compact size, electrical integration, vibration resistance, or rapid response.

Medical and laboratory systems can use pressure measurement in gas delivery, fluid handling, filtration, respiratory equipment, and analytical instruments. Media compatibility, cleanliness, stability, and appropriate safety requirements are particularly important.

Utilities and industrial facilities use pressure instruments in water treatment, pipelines, oil and gas systems, chemical processing, food and beverage production, power generation, and manufacturing. Differential pressure can reveal filter condition, pump performance, flow restriction, or liquid level in pressurized vessels.

No single pressure range or instrument type applies to all of these examples. Selection depends on:

• Measurement range and expected transients
• Pressure reference
• Accuracy and stability needs
• Wetted-material compatibility
• Process temperature
• Electrical output and power requirements
• Hazardous-area or environmental requirements
• Ingress protection, vibration, and corrosion exposure

Which Instrument Should You Use to Measure Pressure?

The best instrument depends first on how the reading will be used.

A local operator who needs to inspect pressure at a pump, vessel, or regulator may need a mechanical pressure gauge. A control system that must record, alarm on, or automatically respond to pressure changes requires an electronic sensor, transducer, or transmitter.

The pressure reference, range, media, connection type, environmental conditions, and safety ratings remain important regardless of instrument category.

When Should You Use a Mechanical Pressure Gauge?

Use a mechanical pressure gauge when personnel need direct visual indication at the equipment. Many mechanical gauges operate without electrical power, making them useful where a simple local indication is sufficient.

Common sensing mechanisms include Bourdon tubes, diaphragms, and capsules. Process pressure moves the sensing element, and that motion drives a pointer across a calibrated dial.

Mechanical gauges are used across a broad range of industrial duties, including water systems, compressed air, hydraulic circuits, pumps, tanks, and process equipment. They are practical for local checks, but they do not inherently provide remote data, alarms, trending, or control signals. Optional switches, contacts, or electronic accessories can add functions, but those additions change the installation requirements.

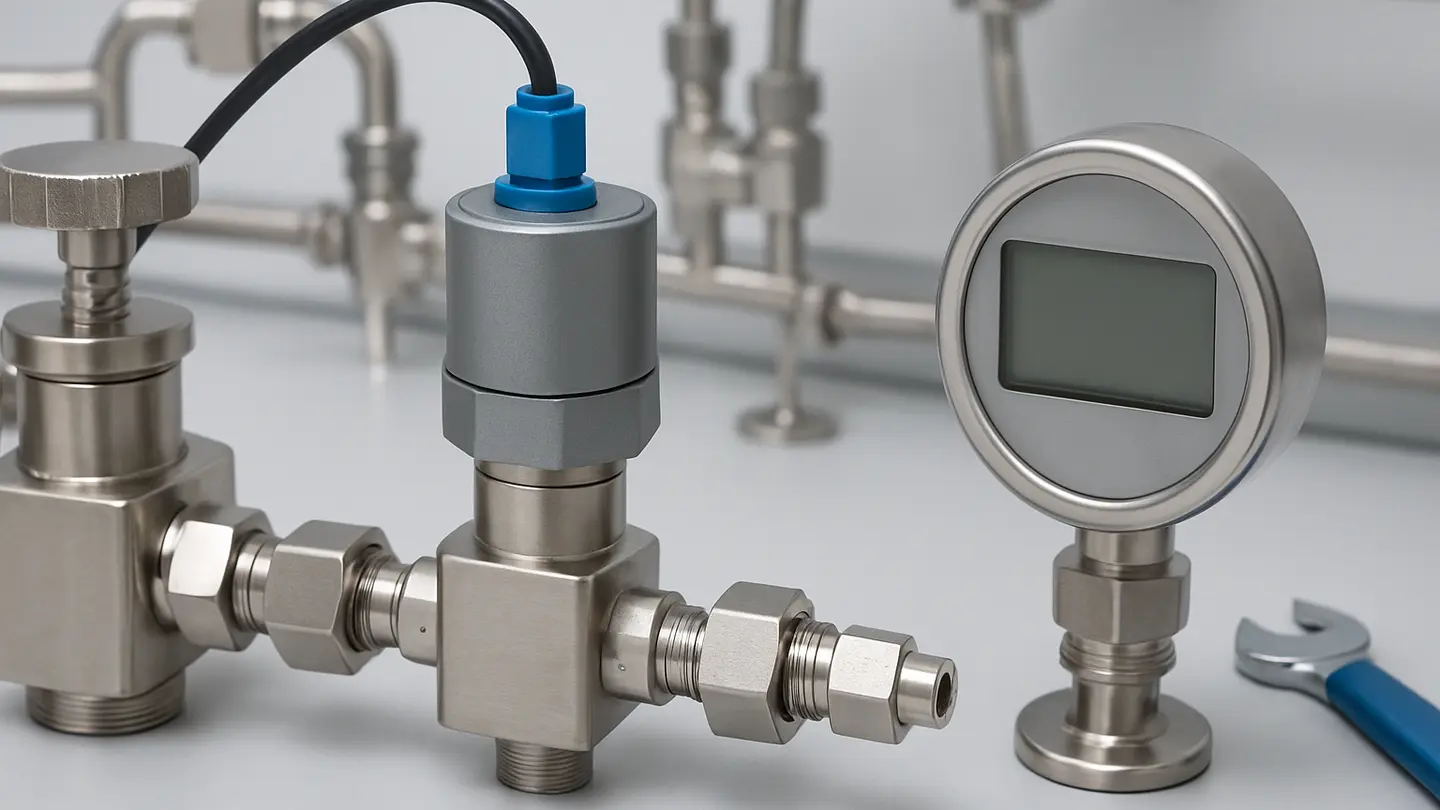

When Should You Use a Pressure Transducer or Transmitter?

Use a pressure transducer or transmitter when pressure data must be sent to a remote display, data-acquisition system, programmable controller, alarm system, or control loop.

Electronic pressure instruments convert pressure-induced mechanical deformation into an electrical output. Depending on the device and application, outputs may include:

• Millivolt signals
• Voltage signals
• Current signals
• Digital communication signals

Terminology varies. “Transducer” often refers broadly to a device that converts pressure into an electrical signal, while “transmitter” often refers to a device designed for industrial signal transmission. Actual capabilities should be confirmed from the product documentation rather than assumed from the name alone.

Selection should consider pressure reference, measurement range, media compatibility, accuracy, temperature exposure, electrical connection, output type, environmental protection, and required response for the application. A well-matched instrument provides a pressure reading that is not only measurable, but usable for the operator, control system, or process decision it supports.
