Pressure Instruments for Ammonia Plants

Key selection factors for ammonia-service pressure instruments

Selecting pressure instruments for ammonia plants requires more than matching a pressure range to a pipe tag. Ammonia production and handling areas can expose gauges, switches and transducers to several difficult service conditions at the same site: ammonia-containing process fluids, cold liquid ammonia, high-temperature steam, mechanical vibration, pressure pulsation and occasional pressure spikes. A pressure instrument that works well on a clean utility line may have a short life or create a safety concern if it is installed directly into one of these harsher points without the right materials and accessories.

The main selection factors are closely connected:

Wetted-material compatibility: Every component exposed to ammonia or ammonia-contaminated condensate must be compatible with the actual process fluid.
Fill fluid or case-fill compatibility: Liquid-filled gauges can improve readability in vibration, but the fill must be suitable for the chemical environment and operating conditions.
Temperature isolation: Cold liquid ammonia and hot steam can both exceed the temperature limits of standard instruments.
Vibration and pulsation control: Pumps, compressors and reciprocating equipment can cause pointer flutter, mechanical wear and unstable electrical outputs.
Overpressure protection: Pressure spikes can permanently deform the sensing element and compromise calibration or containment.

Poor selection can reduce accuracy, shorten instrument life, increase leakage risk, expose operators to hazardous media or force unplanned downtime. The correct choice is therefore application-specific. A suitable pressure gauge for a relatively stable ammonia storage line may not be suitable for a compressor discharge point, a steam tracing connection or a high-pulsation pump outlet.

Material compatibility requirements for ammonia service

Material compatibility is the first screening step for ammonia pressure measurement. The concern is not limited to the instrument body. All wetted components should be checked, including the bourdon tube, socket, diaphragm, process connection, seal components, gaskets and any wetted parts in accessories such as valves, snubbers or diaphragm seals. For transmitters and transducers, the same principle applies to the sensing diaphragm, pressure port, welds and internal wetted cavities.

Wet ammonia deserves special attention. Ammonia-containing water can attack or degrade certain metals that might otherwise appear acceptable in general industrial service. Brass, zinc and copper should generally be avoided where ammonia compatibility is a concern, particularly if water may be present. These materials are often found in lower-cost gauges, fittings or accessory components, so the complete pressure assembly should be reviewed rather than only the main instrument.

Elastomers and fill materials also matter. Viton elastomers are identified in the supplied reference material as unsuitable for ammonia service, so seals, O-rings and diaphragm-seal components using this material should not be assumed acceptable. Glycerin-filled gauges are also commonly discouraged in ammonia production contexts where compatibility with nitrogen-related process conditions is a concern. This is especially relevant where the pressure gauge specification is copied from another service and the case fill is treated as a minor detail. In ammonia plant applications, the case fill or seal fill can be an important compatibility item.

For many ammonia applications, stainless steel wetted parts are preferred. Grades such as 316 or 316L stainless steel are commonly specified for ammonia exposure because they provide better corrosion resistance than copper alloys or zinc-containing materials. This does not mean every stainless steel component is automatically acceptable in every ammonia service condition, but it is a common starting point for gauges, transducers and process connections.

Safety construction should also be considered. A solid-front pressure gauge places a barrier between the sensing element and the operator. If the bourdon tube or another internal pressure-containing element fails, the case design is intended to direct energy and media away from the front of the gauge, often in combination with a pressure-relief back. This feature does not replace correct material selection or overpressure protection, but it adds an important layer of operator protection.

Before installation, material compatibility should be verified against the manufacturer’s current datasheet, corrosion guide or written application guidance. This is important because product constructions change, optional wetted materials may differ from standard models and an accessory in the installation may introduce an incompatible material even when the main instrument is suitable.

Protecting pressure instruments from ammonia and steam temperature extremes

Ammonia plants may expose pressure instruments to both low and high temperature extremes. Liquid ammonia can be cold enough to exceed the temperature rating of standard pressure gauges, gauge accessories or electronic pressure sensors. At the other end of the plant, steam systems used for process heating, tracing or utilities can subject instruments to temperatures far above the safe limit of the movement, sensing element, electronics, window, case fill or sealing materials.

For cold liquid ammonia service, one common method is to separate the instrument from the process connection with a capillary line or remote mounting arrangement. The capillary allows the gauge or transmitter to be located away from the coldest point, reducing direct thermal exposure. Remote mounting can also make the instrument easier to read and maintain. However, the capillary and any fill fluid or internal volume must be compatible with the process and suitable for the expected temperature range. Long lines can also affect response time, so the arrangement should match the measurement purpose. A local indication point used for slow process monitoring may tolerate a different response than a control or trip-related signal.

For steam service, a pigtail siphon or coil siphon is commonly installed between the steam line and the pressure instrument. The siphon is filled with water, creating a condensate barrier that prevents live steam from directly reaching the gauge, switch or transducer. The instrument then senses pressure through the water leg rather than being exposed to the full steam temperature at its internal pressure element. This approach is widely used, but it depends on correct installation orientation, proper filling and appropriate materials.

Compact heat-dissipating siphon-style accessories may be used where space is limited or where a traditional pigtail is difficult to install. Their function is the same in principle: reduce the temperature reaching the instrument by dissipating heat and maintaining a protective fluid barrier or thermal path between the process and the sensing element. These accessories can be useful for gauges, switches and transducers, but they should not be selected only by connection size.

When choosing temperature-protection accessories, check:

Maximum working pressure of the accessory and instrument
Maximum and minimum temperature ratings
Compatibility of all wetted materials
Suitability for ammonia, steam or condensate service
Installation orientation and available clearance
Effect on response time and maintenance access
Any required valves for isolation, venting or calibration

Temperature protection is not a single component decision. The complete installation must keep the pressure instrument within its rated mechanical, thermal and chemical limits.

Reducing vibration and pulsation effects on pressure gauges

Ammonia plants often include pumps, compressors, rotating machinery, reciprocating equipment and control valves. These components can produce mechanical vibration, pressure pulsation or both. Mechanical vibration is transmitted through the pipework or equipment mounting. Pressure pulsation is transmitted through the process fluid as rapid pressure fluctuations. A pressure gauge mounted directly on vibrating equipment may experience both at the same time.

The first visible symptom is usually poor readability. The pointer may flutter, blur or oscillate across a range instead of settling at a stable indication. Operators may then estimate the reading, which reduces the value of the measurement. For switches, transducers and transmitters, pulsation can create unstable outputs, nuisance alarms or excessive signal noise if damping is not properly considered.

Dynamic loading also affects service life. Repeated movement of the bourdon tube and gauge mechanism accelerates wear in the movement, linkages and pointer system. A gauge may remain intact but drift out of calibration or become mechanically sluggish. Dry gauges mounted directly on vibrating equipment are especially vulnerable because there is no liquid fill or internal damping medium to slow pointer motion and reduce movement wear.

Pulsation can be particularly severe near compressor discharge lines, reciprocating pumps or fast-acting valves. Even when the average process pressure is within the gauge range, the instantaneous pressure peaks may be much higher than the steady indication suggests. For that reason, vibration and pulsation control should be considered together with overpressure protection and range selection.

Methods for controlling vibration and pressure pulsation

Several methods are available to reduce the effects of vibration and pulsation. The best choice depends on the severity of the dynamic condition, the required response time, the chemical service and the physical layout.

Silicone-filled gauges are a common damping option for vibration-prone service when the gauge design and application conditions are compatible. The fill fluid surrounds the movement and helps reduce pointer flutter. It can also lubricate the mechanism and reduce wear caused by continuous vibration. However, the fill fluid must be compatible with the service environment and plant requirements. Glycerin fill should be avoided where ammonia-service compatibility is a concern.

Remote mounting is another effective method. A pressure gauge can be mounted on a stable panel, wall bracket or pipe stand and connected to the process with a flexible capillary line. This physically separates the gauge from the vibration source. The capillary can also reduce pulsation severity by restricting rapid pressure transmission to the instrument. However, the restriction and line volume can slow response, so the complete installation must still meet the measurement, alarm or safety function. For critical service, response-time requirements should be reviewed before adding long capillaries or restrictive elements.

Snubbers, restrictors and pulsation dampeners can be installed between the process and the instrument to reduce rapid pressure changes. These devices work by limiting flow into the sensing element or by adding a damping volume. They can improve readability and reduce mechanical stress, but they may plug in dirty service or make the gauge respond too slowly if incorrectly selected.

Dry-case damping technologies are also available in some gauge designs. These approaches reduce pointer instability and movement wear without relying on a conventional liquid-filled case. The operating principle is to damp the movement mechanically or internally so that vibration is not transmitted as freely to the pointer. Such designs can be useful where a liquid-filled case is undesirable because of temperature, compatibility, maintenance or visibility concerns.

No damping method should be treated as universal. A heavily damped gauge may be easy to read but too slow to show a rapid upset. A direct-mounted dry gauge may respond quickly but fail early on a compressor skid. The final selection should balance readability, response, compatibility and mechanical durability.

Overpressure risks in ammonia pressure-measurement systems

Overpressure is a major concern for pressure instruments in ammonia service. A gauge may be correctly selected for normal operation but still be damaged by startup surges, blocked-in liquid expansion, compressor events, valve closure, pump deadheading or transient pressure waves. If the pressure spike exceeds the rating of the instrument, the sensing element can be permanently deformed.

In a bourdon tube gauge, overpressure can distort the bourdon tube. The tube may not return to its original shape after the event, causing a calibration shift. The pointer may read high, read low or fail to return to zero. Even if the gauge still appears functional, the measurement can become unreliable. Repeated overstress also increases mechanical fatigue in the pressure element and associated joints.

In severe cases, overstress can contribute to loss of containment. This is especially important in ammonia service because leakage can create personnel exposure and process safety concerns. Solid-front construction and pressure-relief backs can reduce operator risk if an internal failure occurs, but they do not prevent the failure itself. Preventing overpressure at the sensing element remains the primary goal.

Gauge range selection is one of the simplest forms of protection. The normal operating pressure should fall within an appropriate portion of the gauge’s full scale. ASME B40.100 is commonly cited for keeping normal operating pressure within 25 percent to 75 percent of full scale. In many practical selections, normal operating pressure near the middle of the scale is used as a sizing target because it provides readability while leaving margin for expected variation.

For example, a gauge with too low a range may provide good resolution during normal operation but be vulnerable to routine spikes. A gauge with too high a range may survive the spikes but provide poor readability at normal pressure. The correct range depends on normal pressure, maximum expected pressure, transient conditions, required accuracy and the consequences of a missed abnormal condition.

Where surges or spikes are expected, additional measures may be needed. Options include overload stops, snubbers, pulsation dampeners, pressure-limiting valves or diaphragm seal arrangements designed for the expected conditions. These devices must be verified against the actual process pressure, temperature, media compatibility and response requirements. Overpressure protection should not be selected in isolation from vibration, pulsation and temperature control because the same accessory may influence all three.

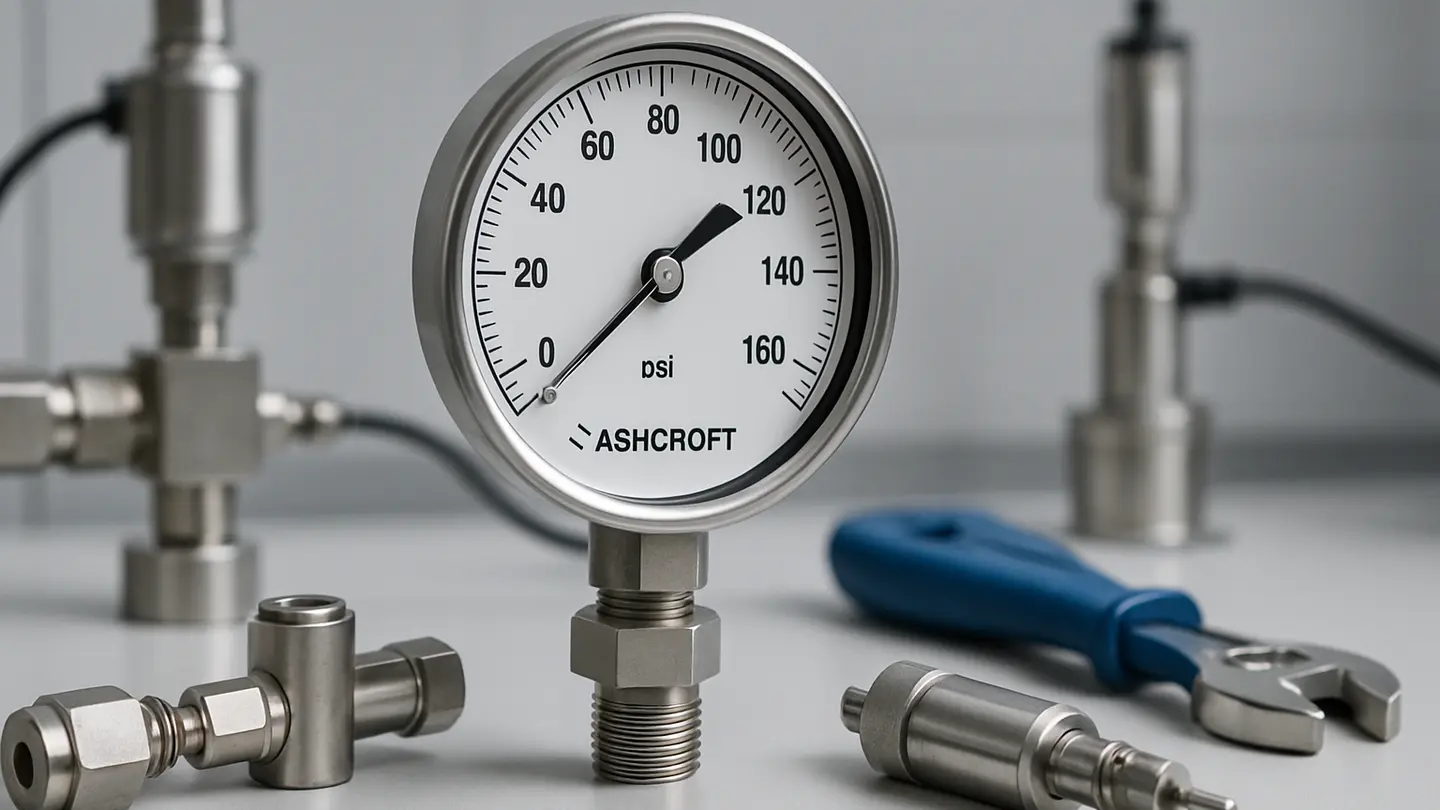

Pressure-gauge features suited to ammonia plant service

Pressure gauges suited to ammonia plant service generally prioritize corrosion-resistant wetted parts, safety-oriented case construction and appropriate damping for vibration or pulsation. The correct configuration depends on the exact measurement point, but several features are commonly important.

Stainless steel wetted components are a primary requirement in many ammonia applications. Gauges with 316 or 316L stainless steel wetted parts are commonly specified where ammonia exposure is expected. The wetted construction should include the bourdon tube and socket, not only the external connection. If a diaphragm seal, capillary or snubber is added, those wetted materials must also be checked.

Solid-front case design is valuable where operator exposure is possible. In a solid-front gauge, the front of the case provides a barrier between the pressure element and the person reading the gauge. A pressure-relief back helps direct internal case pressure away from the operator if the sensing element fails. These features are especially relevant in hazardous or corrosive service where loss of containment has greater consequences.

Appropriate accuracy for process monitoring should be chosen based on the purpose of the gauge. A local gauge used for general operator indication may not require the same accuracy as a reference gauge used for calibration checks. However, in ammonia systems, poor readability caused by vibration or an unsuitable range can make a nominally accurate gauge perform poorly in practice. Accuracy, range and damping should therefore be evaluated together.

Vibration-damping options improve readability and reduce fatigue where mechanical vibration or pulsation is present. Depending on compatibility and operating conditions, options may include silicone-filled cases, remote mounting with capillary lines, snubbers or dry-case damping designs. Glycerin-filled gauges should be avoided where ammonia-service compatibility is a concern.

Heavy-duty process gauge construction can be useful where a plant includes both low-pressure and high-pressure service points. Ammonia systems may include storage, transfer, compression, refrigeration, synthesis-related utilities and steam services. A robust process-gauge platform with suitable wetted materials, safety case construction and available ranges can simplify standardization, but each range and option still needs to be matched to the specific tag.

A practical specification review for an ammonia pressure gauge should include:

Process fluid and whether water may be present
Wetted materials, including accessories
Elastomer and seal compatibility
Pressure range and expected transient pressure
Normal operating pressure relative to full scale
Minimum and maximum process temperature
Ambient temperature around the instrument
Case fill or damping method
Mounting location and vibration exposure
Solid-front case and pressure-relief back requirements
Isolation valve, venting and calibration access
Manufacturer documentation for ammonia compatibility

There is no universal “best” pressure gauge for every ammonia plant application. A well-selected instrument is one whose materials, range, temperature protection, damping and safety construction match the actual service conditions. Before specifying or installing a gauge, confirm ammonia compatibility, pressure range, temperature limits, fill fluid and safety-case construction in the manufacturer’s current documentation.
