How to Select Safe Pressure Instruments for Acid Applications

Define the Acid-Service Pressure Measurement Requirements

Selecting pressure instruments for acid applications begins with a complete description of the process, not a catalog search for a corrosion-resistant gauge or transmitter. Acid service is highly condition-dependent: a material that performs acceptably in one concentration or temperature range can degrade quickly when conditions change.

Document the process medium in practical terms:

• Acid type and concentration, including expected concentration changes during startup, shutdown, cleaning, or upsets
• Dissolved contaminants, chlorides, fluorides, solids, oxidizers, reducing agents, and entrained gases
• Normal operating temperature and pressure
• Maximum credible temperature and pressure, including upset conditions
• Vacuum conditions, static head, pulsation, pressure spikes, and cycling frequency
• Flow velocity and whether the connection is exposed to erosion or solids accumulation
• Ambient conditions around the instrument, including heat, washdown, vibration, and external corrosion

The required measurement function also matters. A local gauge for operator awareness may have different response, readability, and maintenance requirements than a transmitter used for control, shutdown logic, or safety monitoring. Define the needed measurement range, accuracy expectations, response time, calibration access, alarm function, and consequence of a failed or drifting measurement.

For critical applications, consider what happens if the instrument fails in each likely mode:

• Does a loss of indication create an operational risk?
• Could a diaphragm failure release acid into the environment?
• Could process acid enter a transmitter, gauge case, impulse line, or capillary?
• Would an incorrect reading cause overpressure, poor process control, or unsafe operator action?
• Is isolation possible without exposing maintenance personnel?

The evaluation must cover the entire wetted system. This includes the process connection, diaphragm seal, diaphragm material, fill fluid, capillary tubing, welds, fittings, adapters, valves, snubbers, and isolators. A corrosion-resistant transmitter body does not compensate for an incompatible seal diaphragm or a fitting that becomes the weak point in the pressure boundary.

Why Instrument Selection Matters in Acid Applications

Pressure measurement in acid service has two linked purposes: contain the process safely and provide dependable information about process pressure. Either objective can be compromised by unsuitable material selection, poor mechanical design, or an incomplete view of the installed assembly.

Acids can attack wetted components through general corrosion, localized pitting, crevice corrosion, stress-assisted damage, erosion-corrosion, or permeation through thin materials. The resulting damage may first appear as calibration drift, sluggish response, discoloration, or minor leakage. If it progresses, the instrument can lose pressure integrity or provide a misleading reading.

Poor selection can lead to several outcomes:

• Premature diaphragm or fitting failure
• Loss of pressure measurement or unstable readings
• Leakage at joints, welds, or gauge-to-seal interfaces
• Frequent maintenance and unplanned shutdowns
• Damage to nearby equipment
• Personnel exposure to corrosive chemicals

Hydrofluoric acid alkylation illustrates why the selection process must be rigorous. Hydrofluoric acid is used in some refinery alkylation processes that produce high-octane fuel-blending components. A release can present severe chemical burn and respiratory hazards. Depending on the process conditions, release quantity, surrounding equipment, and atmospheric conditions, an HF release may also create a hazardous vapor or aerosol cloud.

That example should not be generalized into a fixed release scenario. The hazards, release behavior, containment needs, and emergency-response measures for hydrofluoric acid must be evaluated for the specific facility, process design, inventory, safeguards, and local emergency-response context. The instrumentation decision is one part of that broader risk-control system.

Assess the Main Safety Risks in Acid Service

Temperature, chemical compatibility, and possible leak paths should be assessed together. They are not independent variables. For example, a diaphragm material may appear acceptable in a general corrosion chart at room temperature but have limited life at elevated temperature, under cycling pressure, or in the presence of contaminants.

Temperature and changing corrosion behavior

Higher temperature often increases corrosion rates and can affect material strength, gasket performance, fill-fluid behavior, and seal response. However, the effect is acid-specific and material-specific. It should not be assumed that every acid-metal combination follows the same trend.

Compatibility can also change substantially with:

• Acid concentration
• Aeration or oxygen ingress
• Dissolved salts and metal ions
• Halides and other contaminants
• Process velocity and turbulence
• Pressure and phase changes
• Cleaning chemicals and water flushing
• Stagnant zones around seals, nozzles, and impulse connections

A corrosion review should therefore consider normal, startup, shutdown, cleaning, and upset conditions. A short-duration upset at a higher temperature or concentration may govern the required material selection if it can damage a thin diaphragm before operators can intervene.

Identify credible leak paths

Leak-path analysis should include more than the visible threaded process connection. Common locations include:

• Welds in diaphragm-seal and capillary assemblies
• Diaphragm seal welds and process-side flanges
• Gauge-to-seal or transmitter-to-seal connections
• Threaded fittings, adapters, and isolation valves
• Gasketed joints and flange faces
• Fill ports and seal-system interfaces
• Internal sensing elements if process media breaches the primary isolation barrier

Every additional connection introduces a potential location for corrosion, loosening, vibration damage, or assembly error. Minimizing unnecessary joints can improve integrity, but a simplified assembly still requires suitable materials, pressure rating, fabrication quality, and inspection access.

Treat compatibility as an assembly question

A compatible diaphragm alone does not make the system compatible. The process can contact the diaphragm, flange, welds, lower housing, process connection, and possibly accessories. In some designs, an external leak can also expose non-wetted hardware to corrosive vapors or splashes.

Review chemical compatibility across the complete assembly and verify the actual configuration with qualified engineering input. General compatibility tables are useful screening tools, but they do not replace application-specific review for hazardous acid service.

Use Rapid Visual Detection to Support Acid Leak Response

Early recognition of a developing leak can reduce the time between failure and response. In accessible field locations, visual indication may help operators identify an abnormal condition before a small leak becomes a larger release.

Some acid-service gauge and diaphragm-seal arrangements use external coatings or indicators designed to visibly change after acid exposure. When properly selected and positioned, these features may help identify leakage near welds, diaphragm seals, sensing elements, or other likely release points.

Visual leak indication is most useful when it is integrated into a response process. Personnel need to know what the indication means, which area should be isolated if safe to do so, how to report the condition, and when to initiate site emergency procedures. A visible indicator that is difficult to inspect, hidden behind insulation, or not included in routine rounds offers limited practical value.

Visual measures are supplementary safeguards. They do not replace:

• Correct wetted-material selection
• Pressure-boundary design and fabrication quality
• Inspection and preventive maintenance
• Area gas, vapor, or liquid detection where required
• Secondary containment
• Operator training and facility emergency planning

The performance of any coating or indicator depends on its exposure conditions. Do not assume a particular color-change threshold, response speed, or acid sensitivity unless it has been validated for the detection technology, acid chemistry, concentration, temperature, and field environment involved.

Leak-Detection and Containment Features to Evaluate

When considering an acid leak-detection assembly, evaluate the feature as part of the full pressure-measurement installation.

Visible warning. The indication should be unambiguous under actual field lighting and accessible from a safe inspection position. Case color or high-visibility markings can make designated instruments easier to identify, but they are not themselves proof of a leak.

Location of indication. Determine whether the design can reveal leakage near the locations of greatest concern, such as diaphragm welds, seal housings, or connections. A visible indicator cannot detect a leak that is contained entirely within a hidden area.

Dual containment. A dual-containment design may provide an additional barrier between hazardous process media and the environment if the primary pressure boundary develops a leak. Its value depends on the design, pressure capability, venting arrangement, materials, and the ability to detect or safely manage fluid entering the secondary space.

Pressure and process capability. Confirm that the complete assembly, rather than only one component, is suitable for the process pressure, temperature, pressure cycling, and mechanical loading.

Fill fluid. Diaphragm-seal fill fluid must support reliable pressure transmission while remaining suitable for the process temperature range. If there is a credible path for process contact following diaphragm damage, compatibility with oxidizing acids and other process chemicals requires careful review.

Environmental restrictions. Verify requirements such as silicone-free construction, enclosure type, washdown resistance, and external corrosion protection for the installed environment.

Manufacturer documentation should be checked for any stated pH-triggered indication, pressure limits, fill-fluid restrictions, enclosure options, and service limitations. These details can vary by design and may change over time.

Select Wetted Materials for the Specific Acid Environment

All wetted materials should be compatible with the specific acid environment and operating conditions. This includes both the bulk process components and the thin diaphragm that transfers pressure to a gauge or transmitter.

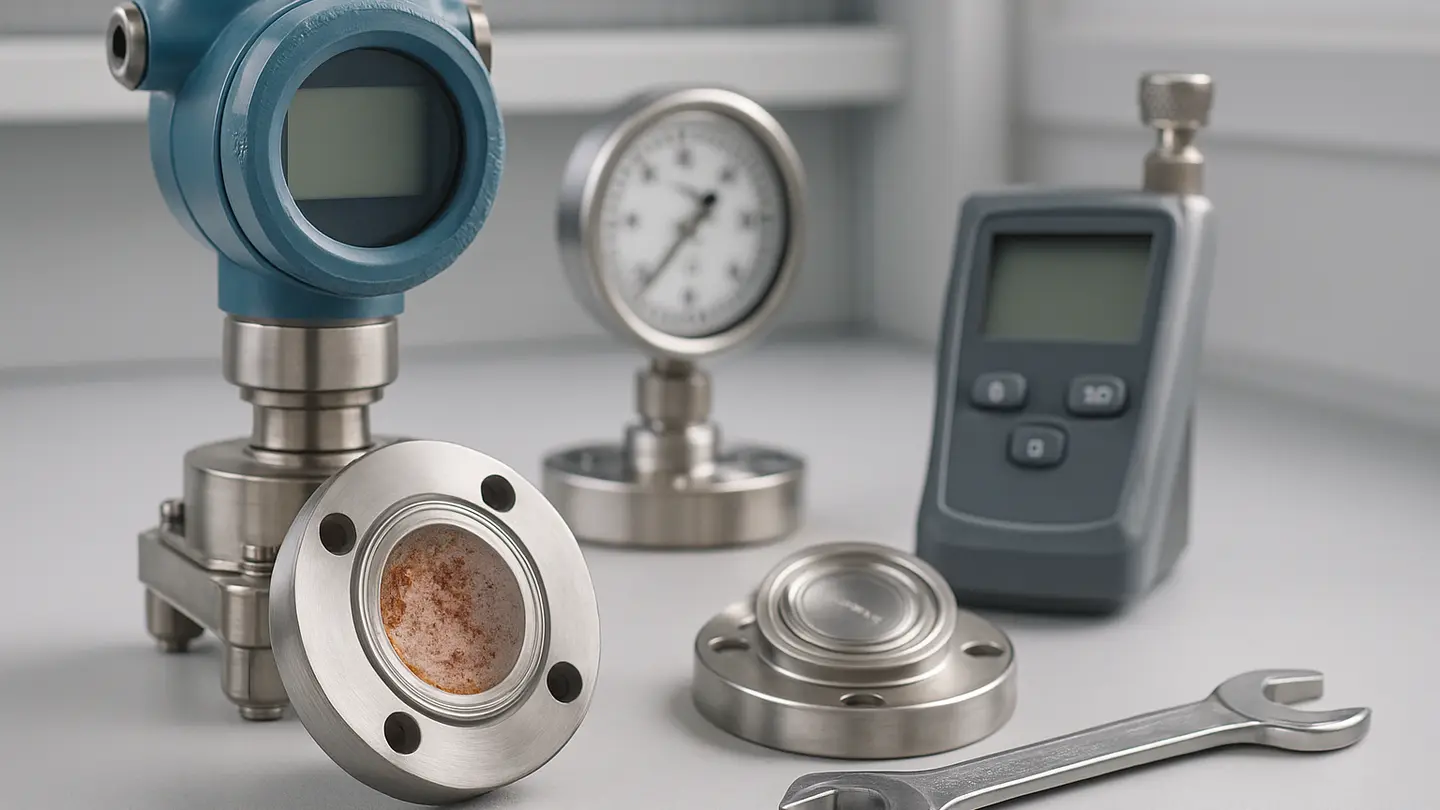

Diaphragm seals deserve particular attention because their diaphragms must flex in response to pressure. That flexibility allows the seal fill fluid to transmit pressure to the sensing element, but it also means the diaphragm may be thinner and more vulnerable than a conventional pipe wall or vessel shell.

Corrosion, pitting, erosion, and permeation can compromise a diaphragm in several ways:

• Localized attack can reduce thickness at a small area before broad corrosion is obvious.
• Pitting can create a through-wall defect and release process media.
• Erosion can accelerate in high-velocity service or where solids impinge on the diaphragm.
• Permeation or chemical interaction may affect the pressure boundary or fill-fluid system.
• Deposits can cause slow response, plugging, or measurement offset.

Increasing diaphragm thickness is not automatically a safer solution. A thicker diaphragm can reduce displacement sensitivity and affect pressure transmission characteristics. It may also change response time, temperature effects, or the usable measurement range. The correct approach is to select a suitable material and diaphragm design, then verify that the assembly provides acceptable measurement performance under actual service conditions.

Material suitability and diaphragm performance should be confirmed using current corrosion data, seal-design information, and qualified engineering review. This is especially important for high-consequence service, unusual acid mixtures, elevated temperature, or process conditions that can vary substantially.

Compare Candidate Materials for Acid-Service Wetted Parts

Several alloys are frequently considered for aggressive acid service, but none should be treated as a universal answer.

A useful comparison evaluates more than general corrosion resistance. Consider:

• Resistance to pitting and crevice corrosion
• Erosion resistance at the expected process velocity
• Permeation or diffusion concerns
• Mechanical strength and diaphragm-forming capability
• Weldability and fabrication limitations
• Availability of compatible flanges, fittings, and accessories
• Galvanic interactions with adjoining materials
• Compatibility with cleaning and decontamination chemicals

For hydrofluoric acid, Monel may be considered in some conditions, while other acid systems may favor different alloys or nonmetallic linings. The correct choice depends on the complete service envelope. An acceptable alloy in one concentration range may not be acceptable at another concentration or after dilution, aeration, or contamination.

Add Secondary Containment and Protective Components

Secondary containment can limit the escape of hazardous acid if the primary pressure boundary develops a leak. It does not eliminate the need for compatible wetted materials; instead, it provides an additional layer of protection against a failure that still must be prevented through correct design and maintenance.

A welded seal-and-instrument assembly may reduce the number of threaded or gasketed leak paths. However, welded construction is not automatically suitable for every application. The weld procedure, base materials, pressure rating, thermal exposure, inspection method, and acid-service compatibility must all be evaluated. A weld may reduce one type of leak risk while creating a location that requires careful corrosion and fabrication control.

Protective components can also improve measurement reliability when chosen for the actual process:

• Snubbers can reduce the effect of pulsation and pressure spikes on gauges and transmitters. They must not plug, corrode, or create an unacceptable response delay.
• Isolators can protect sensing elements from direct contact with corrosive media, often through diaphragm seals or other separation methods. Their fill systems and process-side materials still require compatibility review.
• Temperature dissipaters can reduce heat conducted from a hot process connection to the sensing device. They must be evaluated for pressure capability, external corrosion, and any effect on measurement response.
• Isolation valves and manifolds can support safer calibration and replacement, but they introduce additional wetted surfaces and potential leak points.
• Capillaries and remote seals can move an instrument away from heat, vibration, or an immediately hazardous location. They may introduce temperature-related measurement effects, slower response, and additional mechanical vulnerability.

An integrated design balances containment, measurement quality, maintainability, and response needs. For example, a remote diaphragm-seal transmitter may reduce personnel exposure during routine observation, but it must still provide acceptable response under the expected pressure dynamics. A snubber may protect the sensor from pulsation, but excessive restriction can make a control loop slow or mask rapid process changes.

The final selection of pressure instruments for acid applications should therefore be documented as a system decision: acid chemistry and operating envelope, wetted materials, seal design, containment approach, protective accessories, detection methods, installation details, and maintenance strategy. That disciplined approach is more reliable than relying on any single alloy, coating, or instrument feature.
