How to Select a Pressure Instrument Mounting Assembly

Why pressure instrument mounting assemblies matter

A pressure instrument mounting assembly is part of the measurement system, not just a set of parts used to attach a gauge, transmitter, switch or isolator to a process connection. The assembly determines how pressure is transmitted to the instrument, how heat and vibration reach the sensing element, how easily the instrument can be read or serviced, and how well the installation resists leaks, tampering and mechanical damage.

Selecting a pressure instrument mounting assembly should therefore begin with the purpose of the measurement. In one application, the main objective may be accuracy at low pressure. In another, it may be operator safety, resistance to pulsation, compact installation, reduced leak points, fast replacement, or compatibility with corrosive or high-temperature media. Many installations require a compromise among several of these objectives.

The right assembly depends on project-specific details, including:

• Expected pressure range and possible overpressure conditions
• Process temperature and ambient temperature
• Media compatibility with wetted materials and fill fluids
• Instrument type, size, range and orientation
• Need for isolation, diaphragm seals or pressure limiting devices
• Vibration, pulsation and pump proximity
• Available clearance around piping or equipment
• Readability, service access and maintenance procedures
• Environmental exposure, including washdown, weather or corrosive atmospheres

The following sections outline technical considerations to review before purchasing, specifying or building a pressure instrument mounting assembly.

Reduce temperature-related error through assembly design

Temperature affects pressure measurement in several ways. It can change the properties of fill fluids, expand or contract trapped volumes, stress sealing materials, and expose the instrument mechanism or sensing element to conditions outside its intended operating range. These effects are especially important in low-pressure applications, where a small pressure shift caused by thermal expansion can represent a meaningful percentage of the measured value.

Applications below about 100 psi are often more sensitive to temperature-related error than higher-pressure systems. At low pressure, the expansion of fill fluid inside the assembly, seal cavity or connecting hardware can create enough additional force to influence the reading. The exact effect depends on the internal volume, the fill fluid, the diaphragm or isolator design, the temperature gradient and the pressure range of the instrument.

One way to reduce this error is to minimize the internal volume of the assembly. Low-internal-volume fittings expose less fill fluid to temperature change, which reduces the amount of expansion that can act on the measuring system. This is particularly useful where a diaphragm seal, isolation ring or filled connection is used between the process and the instrument.

Assembly design should avoid unnecessary volume wherever possible. Practical steps include:

• Using the fewest fittings consistent with safe installation and serviceability
• Matching connection sizes where possible instead of using multiple adapters
• Avoiding oversized tees, long nipples or unnecessary extension fittings
• Selecting compact fittings when they provide the required orientation and access
• Avoiding complex layouts that create extra cavities or dead volume

Compact tees or cross fittings can sometimes replace larger combinations of multiple fittings. This can reduce assembly size, lower internal volume and reduce mechanical vulnerability. A compact assembly has fewer protruding parts and may be less likely to be damaged by accidental impact, vibration or handling during maintenance. However, compactness should not compromise wrench access, readability, isolation valve access or safe removal procedures.

High process temperature may also require the assembly to keep heat away from the instrument. Common approaches include capillary lines, siphons, cooling elements and extended mounting arrangements. These components increase the distance between the hot process and the instrument, allowing heat to dissipate before it reaches the gauge, transmitter or switch.

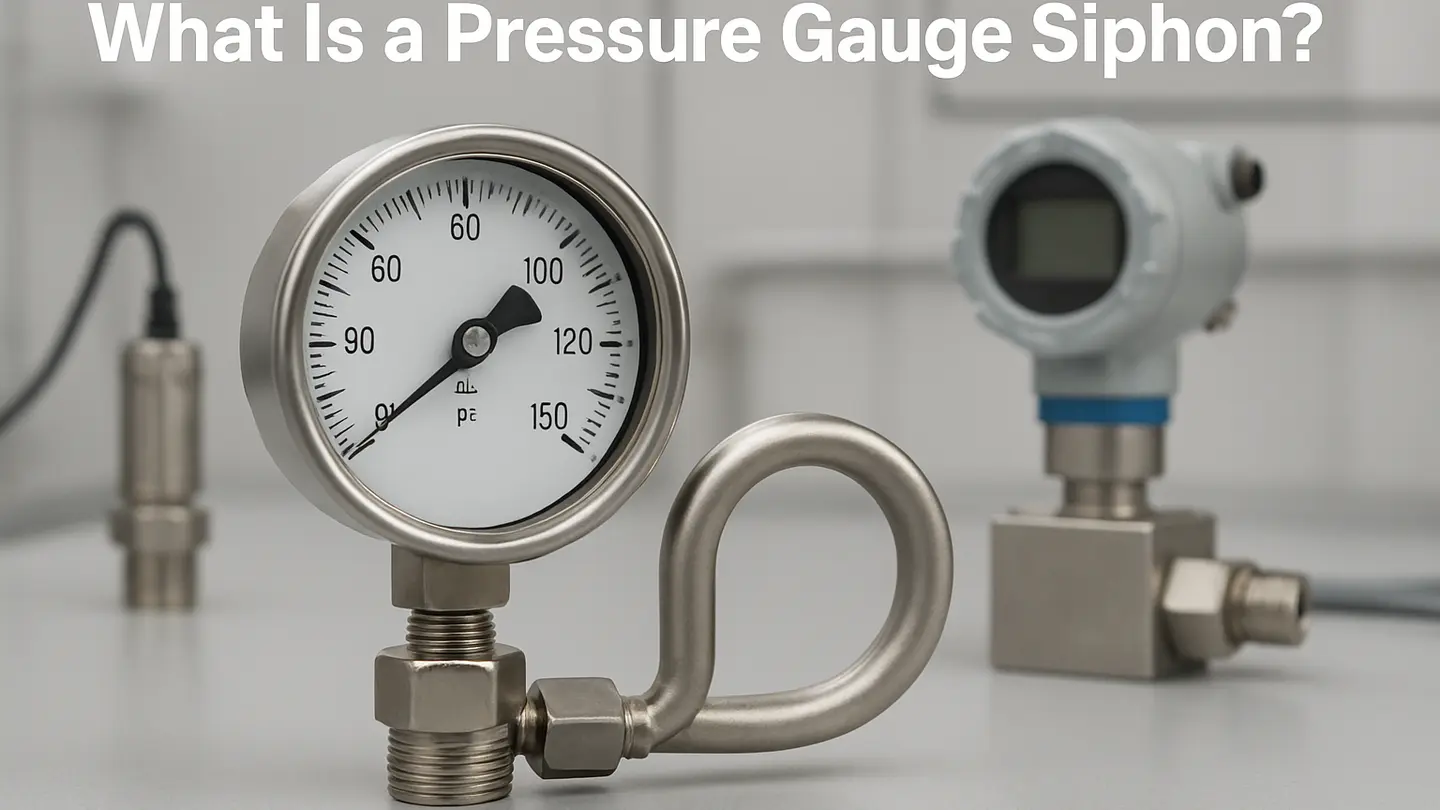

A capillary line can be used with a diaphragm seal or isolator to locate the instrument away from the process connection. A siphon is commonly associated with steam or other hot vapor service, where it can help protect the pressure instrument by creating a cooler barrier between the process and the instrument. The actual temperature reduction depends on the assembly design, length, orientation, ambient conditions, process conditions and manufacturer data. A short capillary or a suitable siphon may substantially reduce the temperature reaching the instrument, but it should be selected from documented ratings rather than assumed performance.

Temperature management is not only about protecting the instrument from immediate failure. It also supports stable measurement. If one side of an assembly is exposed to process heat while another side is exposed to ambient air, the resulting thermal gradient can affect fill-fluid behavior and response. In critical applications, the assembly layout, fill fluid, capillary routing and instrument range should be evaluated together.

Match instrument ranges within the assembly

Assemblies that connect more than one instrument to the same pressure source generally perform best when the connected instrument ranges are compatible or similar. For example, a gauge, switch and transmitter may be installed together so that an operator can view local pressure, a control system can receive a signal, and a safety or alarm device can respond at a setpoint. In this type of arrangement, each instrument must be suitable for the pressure it may actually experience, not only for its intended reading function.

Analog pressure gauges are typically easiest to read when the normal operating pressure falls near the middle of the full-scale range. If the operating pressure is too close to the low end of the scale, small changes may be difficult to interpret. If it is too close to full scale, the gauge may have less margin for pressure excursions and may experience more stress. The best range depends on the pressure profile, expected spikes, required readability and applicable safety practices.

A common risk occurs when a low-pressure instrument is paired with a higher-range indicator in the same assembly. For example, a low-range switch or transmitter may share a connection with a gauge selected for a much higher system pressure. If the assembly exposes the lower-range device to pressures beyond its proof pressure, the device may be damaged or become inaccurate. The lower-pressure instrument should either have adequate proof pressure for the conditions it may see or be protected by a pressure limiting device.

Pressure limiting devices or pressure limiting valves can help protect sensitive instruments by isolating or restricting pressure above a selected threshold. These devices must be chosen carefully because they can affect response time, pressure transmission and maintenance requirements. They are not a substitute for understanding the maximum pressure that the assembly may experience during startup, shutdown, cleaning, upset conditions or operator error.

Vibration and pressure pulsation also influence instrument selection within an assembly. Installations near pumps, compressors, reciprocating equipment or fast-acting valves can create pressure fluctuations that make readings difficult to interpret. Pulsation can cause a gauge pointer to oscillate, increase wear in mechanical movements and shorten instrument life. Vibration can loosen threaded joints, fatigue small fittings and damage the instrument mechanism.

Common mitigation options include:

• Liquid-filled gauges to damp pointer movement and reduce vibration effects
• Dry gauges with dampened movement where liquid fill is undesirable
• Snubbers to restrict rapid pressure changes reaching the instrument
• Pulsation dampeners to smooth cyclic pressure fluctuations
• Capillary connections to isolate the instrument from vibration sources
• Proper support or remote mounting to reduce mechanical stress

Liquid-filled gauges are widely used for vibrating service, but they are not automatically the best choice in every assembly. Fill liquid can be affected by temperature, may not be suitable for some environments, and can introduce maintenance considerations. Dry dampened-movement gauges may be preferable where leakage of gauge fill liquid is a concern or where temperature variation makes liquid fill less suitable.

Snubbers and dampeners can improve readability and instrument life, but they also add restrictions and may slow the response. This can be acceptable for local indication but problematic for fast control or safety functions. When a pressure instrument mounting assembly includes multiple instruments, the damping strategy should be matched to each instrument’s role. A local gauge may benefit from heavy damping, while a transmitter used for control may require a faster response.

Choose a compatible fill fluid for the assembly

Fill fluid is used in many pressure measurement assemblies to transmit pressure through a sealed volume from the process side to the instrument side. It may be present in diaphragm seal systems, isolation rings, capillary-connected instruments or filled gauge cases. Selecting the fill fluid is not only a matter of choosing a common product; it requires attention to geometry, temperature, media compatibility and response behavior.

The fitting geometry and internal passage size affect how fill fluid performs. Low-volume fittings and narrow passages reduce internal volume, which can help limit thermal expansion effects. However, these same small passages can be problematic if the fill fluid is too viscous. Highly viscous fluids may slow pressure transmission, increase response time or create measurement lag, especially in cold conditions or long capillaries.

Glycerin is commonly used in many single-instrument mounting applications, particularly for gauge case filling and general vibration damping. It is widely understood, readily available and suitable for many ordinary service conditions. Silicone fluids are often selected where broader temperature performance or lower viscosity is needed. In general terms, glycerin is much more viscous than many silicone fill fluids, but actual viscosity, temperature limits and compatibility depend on the specific product and manufacturer specification.

Temperature is one of the most important fill-fluid selection factors. A fluid that works well at room temperature may become too viscous at low temperature or may be unsuitable at elevated temperature. Temperature also affects expansion, vapor pressure and long-term stability. For assemblies exposed to process heat, ambient cold, outdoor weather or large temperature swings, the fill fluid should be selected using documented temperature performance data.

Process media compatibility must also be considered. The fill fluid normally should not contact the process under ordinary operation, but leakage, diaphragm failure or seal damage can create a contact scenario. Strong oxidizing media may require inert fill fluids for safety and compatibility. This is especially important where a reactive combination could create a fire, pressure event or contamination hazard.

Diaphragm seals and isolation rings add another layer of selection criteria. These devices isolate the instrument from the process while transmitting pressure through a diaphragm or flexible element. They are useful for corrosive, viscous, crystallizing, sanitary, slurry or high-temperature services. However, they can transmit pressure only within limits determined by diaphragm size, flexibility, material, fill volume and design.

The measured pressure range must be above the isolator’s minimum compatible range. If the pressure is too low for the diaphragm or isolation device, the system may not generate enough movement to transmit pressure accurately to the instrument. This is why low-pressure applications require careful review when diaphragm seals, isolation rings or filled capillaries are involved.

When multiple instruments connect to one isolator, each instrument may have a different minimum pressure-range requirement. A gauge, transmitter and switch may not respond identically, even though they share the same isolation device. The isolator, fill fluid and instruments should be evaluated as a system. The assembly should provide acceptable accuracy, response time and protection for every connected device, not only the primary indicator.

Fill-fluid selection also affects serviceability. Some assemblies are sealed and filled by the manufacturer and should not be opened in the field. Others may allow component replacement but require controlled filling, degassing or calibration afterward. Before specifying an assembly, determine whether the maintenance plan requires replaceable instruments, field-adjustable components or a sealed design that is replaced as a complete unit.

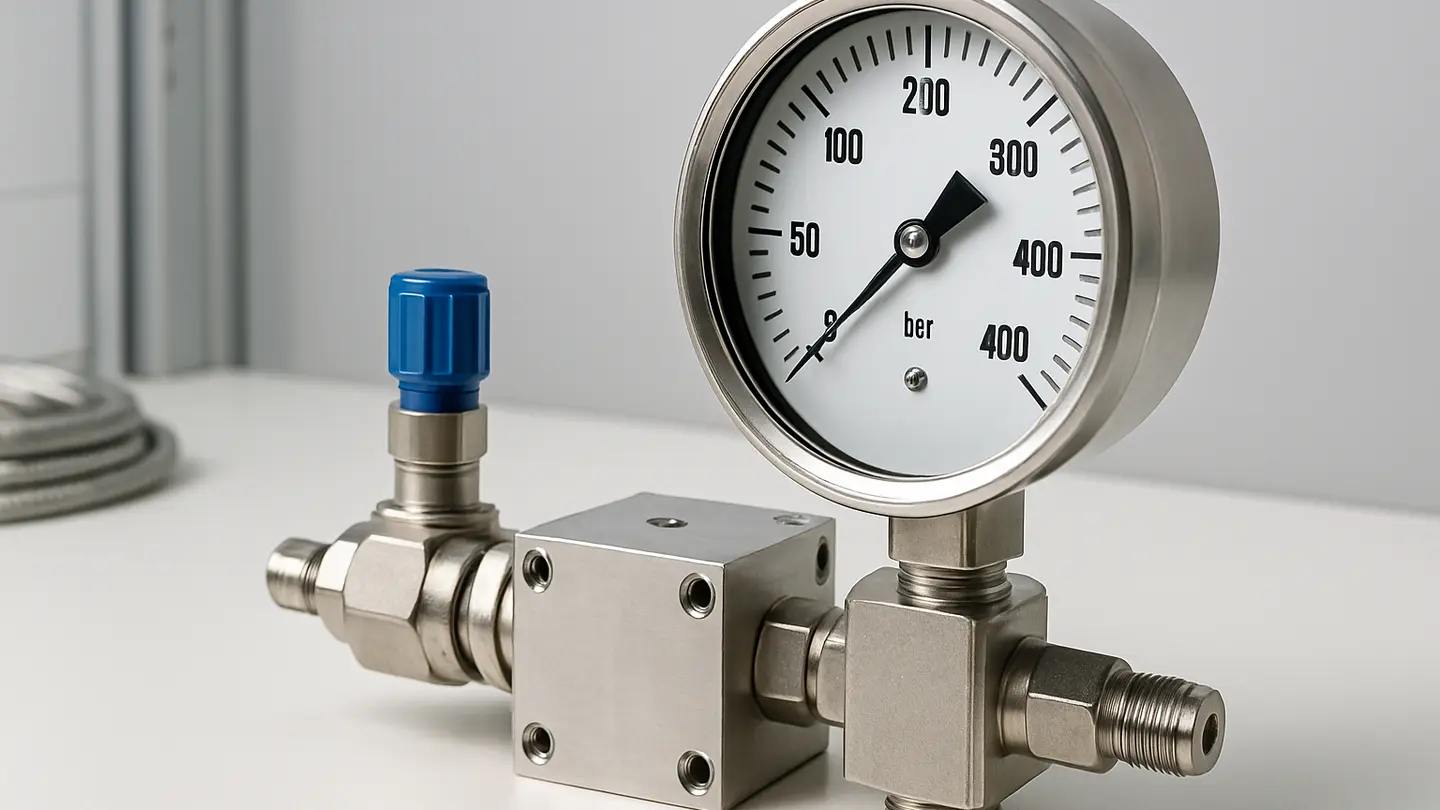

Available pressure instrument mounting assembly configurations

Pressure instrument mounting assembly configurations vary widely. Manufacturers use different names, ordering codes and identification methods, so an assembly description should be based on functional requirements rather than assuming an industry-wide naming system. A clear specification should describe the process connection, instrument connection, orientation, materials, accessories, pressure rating, temperature requirements and physical layout.

Important configuration variables include:

Some assemblies are built as simple direct mounts, where the instrument is connected close to the process connection with minimal fittings. This approach can be compact, economical and easy to understand. It may be suitable where temperature, vibration, media compatibility and service access are not difficult. However, direct mounting can expose the instrument to process heat, vibration and mechanical stress.

Other assemblies use remote or offset mounting. A capillary, extension, elbow or mounting bracket may place the instrument where it can be read more easily or protected from harsh conditions. Remote mounting can improve access and reduce vibration transfer, but it also increases the number of components and may affect response time. The routing of capillaries or tubing should avoid sharp bends, unsupported spans and locations where damage is likely.

Welded instrument-to-isolator assemblies may be used where leak integrity and tamper resistance are important. Welding can reduce reliance on threaded joints and make unauthorized disassembly more difficult. This can be valuable in applications where leakage risk, emissions control, contamination prevention or process safety is a concern.

Welding requires compatible or like materials and an assembly design that permits proper joining. It may be practical for instruments mounted directly to isolators or for assemblies with capillaries or siphons welded at each suitable connection. Not every component is appropriate for welding. Certain tees, nipples, snubbers, dampeners and pressure limiting valves may not be weldable because of material, construction, internal components or function. The weldability of each part should be confirmed before specifying a welded assembly.

Threaded assemblies remain common because they are flexible, serviceable and compatible with many standard instruments and fittings. Where threaded joints are used but adjustment or tampering is a concern, tamper-evident sealant can be applied. This does not provide the same mechanical permanence as welding, but it can discourage casual adjustment and help maintenance personnel identify disturbed fittings during inspection.

Layout adaptations are often necessary because real installations rarely provide ideal space. Elbows may be used to orient a gauge face toward an operator. Longer fittings may move an instrument away from insulation, hot surfaces or obstructions. Angled connectors may help avoid interference with handrails, panels, structural members or adjacent equipment. Custom orientations may be needed where the process connection is vertical but the instrument must face horizontally, or where clearance is limited above a pipe rack or skid.

Readability should be treated as a technical requirement, not an afterthought. A gauge that is difficult to see may lead to misreadings or unsafe workarounds. The assembly should place the dial, display or connection head in a position that can be viewed from the intended operating location. At the same time, the instrument should not protrude into walkways, lifting paths or areas where it can be struck.

Serviceability is another important configuration factor. Assemblies may need block valves, bleed valves or removable sections so that instruments can be calibrated or replaced without shutting down the process. However, every added valve or fitting introduces another potential leak point, added volume and more installation complexity. The best configuration balances maintenance access with reliability and measurement performance.

Environmental conditions should also shape the configuration. Outdoor instruments may require orientation that limits water accumulation. Corrosive environments may require compatible materials, protective coatings or remote mounting. Washdown areas may need sealed instruments and layouts that avoid trapping liquid. Freezing conditions may require heat tracing, insulation or a configuration that prevents stagnant liquid from collecting in small passages.

A well-specified pressure instrument mounting assembly describes both the measurement objective and the mechanical arrangement needed to support it. The assembly should protect the instrument, transmit pressure accurately, fit the available space, and remain maintainable over its service life. Because naming and ordering systems vary, the most reliable approach is to define the application requirements first, then match the configuration, materials, accessories and instrument ranges to those requirements.
