How to Calibrate a Pressure Gauge

Why Pressure Gauge Calibration Matters

Pressure gauge calibration is the controlled process used to confirm that a gauge is reading within an acceptable error limit. In practical terms, it helps preserve measurement reliability, supports confidence in process data, and contributes to safe operation in systems where pressure must be monitored or controlled.

A pressure gauge may appear simple, especially in the case of a mechanical Bourdon tube gauge, but its reading depends on components that can change over time. Springs, linkages, pointers, seals, diaphragms, sensing elements, and electronic circuits may all be affected by service conditions. Common causes of drift include mechanical wear, vibration, shock loading, pressure cycling, temperature changes, contamination, corrosion, and exposure to harsh media. Even gauges that are not used continuously can lose calibration over long storage or service intervals.

Incorrect pressure readings can create several operational risks. If a gauge reads lower than the actual pressure, an operator may unknowingly run equipment closer to an unsafe overpressure condition. If it reads higher than the actual pressure, a system may be operated inefficiently or shut down unnecessarily. In process plants, poor pressure data can contribute to unstable control, reduced throughput, equipment damage, unplanned downtime, and product-quality problems. In safety-related applications, inaccurate indication can also interfere with maintenance decisions and abnormal-condition response.

Accurate pressure measurement is also tied to efficiency and cost control. Compressors, pumps, boilers, hydraulic systems, filtration systems, and pneumatic equipment often depend on pressure readings for adjustment and troubleshooting. A reliable gauge helps technicians distinguish between a real process problem and an instrument problem. This supports better maintenance planning, more consistent process control, energy-efficient operation, and improved product quality.

In regulated or quality-managed industries, documented calibration is often required as part of a quality system, audit program, or compliance framework. Pharmaceutical, food and beverage, aerospace, energy, chemical, and manufacturing facilities commonly maintain calibration records for critical instruments. However, the exact requirement depends on the applicable standard, jurisdiction, customer requirement, internal quality procedure, and the role of the gauge in the process. Not every gauge has the same risk level or documentation burden, but any gauge used to make quality, safety, or compliance decisions should be managed accordingly.

Pressure Gauge Calibration Process

A pressure gauge calibration is a comparison between the gauge under test and a reference instrument with known accuracy and documented traceability. The purpose is not simply to “make the pointer look right,” but to determine how closely the gauge indication agrees with a trusted standard over the required operating range.

A valid calibration procedure should be systematic, repeatable, and documented. It should also be appropriate for the gauge type, pressure range, accuracy class, pressure medium, and service application. A procedure used for a low-pressure laboratory digital gauge may differ from one used for a rugged industrial mechanical gauge installed on a vibrating pump discharge line. The number of test points, acceptance tolerance, pressure source, stabilization time, and documentation detail may all vary.

A typical pressure gauge calibration workflow includes the following stages:

• Selecting a suitable traceable reference standard.
• Connecting the gauge under test to a pressure source and reference instrument.
• Applying pressure at defined test points across the range.
• Recording the reference reading and gauge indication after stabilization.
• Comparing gauge error against the allowed tolerance.
• Adjusting the gauge where its design permits adjustment.
• Repeating verification after adjustment.
• Issuing a calibration record or certificate.

This sequence describes common practice, not a universal mandatory procedure for every gauge. Detailed methods may be defined by the gauge manufacturer, an internal quality system, a calibration laboratory’s accredited scope, customer specifications, or industry-specific requirements. The main principle is that the comparison must be controlled well enough to support a defensible decision about whether the gauge is fit for use.

Selecting a Traceable Reference Standard

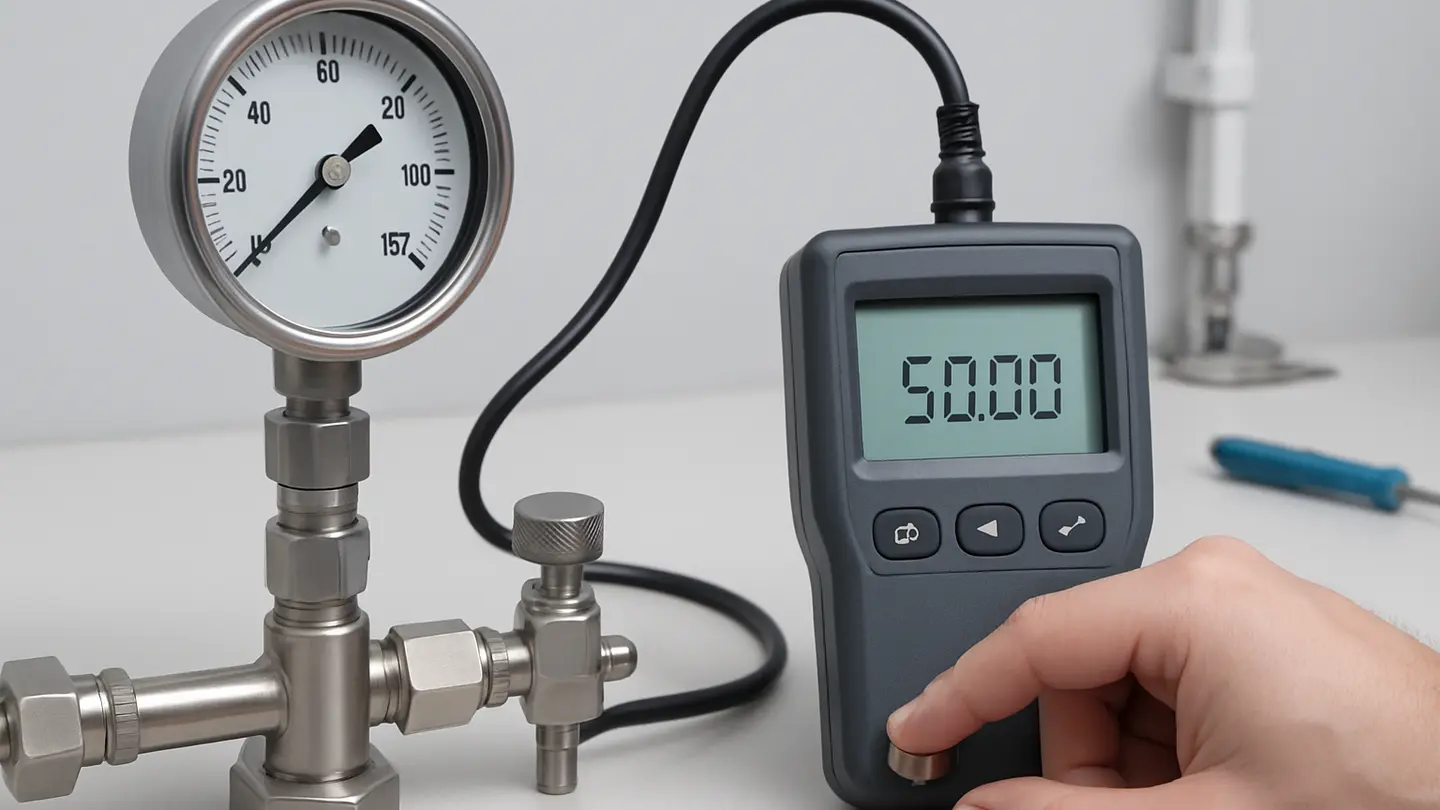

The first step in pressure gauge calibration is selecting a reference standard. This may be a pressure calibrator, deadweight tester, pressure balance, precision digital pressure gauge, pressure controller, or another suitable standard. The reference device must cover the required pressure range and be accurate enough for the calibration decision being made.

The reference standard should have documented metrological traceability. Metrological traceability means there is an unbroken chain of calibrations linking the reference instrument back to recognized national or international measurement standards. Each step in that chain contributes uncertainty and must be documented. In the United States, references are commonly described as NIST-traceable when their calibration chain links to standards maintained by the National Institute of Standards and Technology. In many audit-sensitive environments, ISO/IEC 17025-accredited calibration services are used because they provide formal documentation of competence, traceability, and measurement uncertainty within the laboratory’s accredited scope.

A common best practice is to use a reference standard that is significantly more accurate than the gauge being tested. This reduces the chance that uncertainty in the reference instrument will dominate the calibration result. The widely cited 4:1 test accuracy ratio means the reference standard is four times more accurate than the device under test. For example, if the gauge tolerance is ±1% of span, a 4:1 approach would use a reference standard with an accuracy or uncertainty contribution near ±0.25% of span or better, depending on how the procedure defines the ratio.

However, the 4:1 ratio should be treated as a rule of thumb or quality-system practice, not as an automatic requirement for every application. The required ratio depends on the uncertainty budget, acceptance tolerance, risk of false acceptance or false rejection, decision rule, and applicable procedure. In higher-level calibration work, uncertainty analysis may be more important than a simple accuracy ratio. In lower-risk field checks, the quality system may permit a different ratio if it is technically justified.

When selecting the reference standard, consider:

The reference standard itself must also be within its calibration interval and in good working condition. A calibration performed with an out-of-date or damaged reference standard may not be accepted in a quality-managed environment.

Verifying Accuracy at Multiple Pressure Points

A pressure gauge should normally be checked at several points across its usable range rather than at only one pressure value. A single-point check can detect a large zero error, but it may miss span error, nonlinearity, friction effects, or hysteresis. Multi-point verification gives a clearer picture of how the gauge behaves throughout its range.

Before final readings are recorded, the gauge may be exercised or cycled through part or all of its range. This can help stabilize the mechanical movement, pointer, Bourdon tube, diaphragm, or sensing element before the formal test begins. The number of cycles is not universal; it depends on the calibration procedure, gauge design, and service requirements. Some procedures may call for cycling to full scale, while others may only require gradual pressurization before recording.

A common five-point ascending check uses 0%, 25%, 50%, 75%, and 100% of span. For a 0 to 100 psi gauge, that would correspond to 0, 25, 50, 75, and 100 psi. This pattern is widely used because it samples the low end, midrange, and upper end of the scale. It should not be assumed to be mandatory unless the applicable procedure, standard, customer requirement, or quality system specifies it. Some gauges require more points, fewer points, or points concentrated around the normal operating pressure.

The general verification sequence is:

1. Bring the system to the first test pressure.
2. Allow the pressure to stabilize.
3. Read the reference standard and the gauge under test consistently.
4. Record both readings.
5. Increase pressure to the next test point.
6. Repeat until all ascending points have been recorded.

Readings should only be taken after pressure has stabilized. Instability may come from leaks, trapped air, temperature changes, pump movement, fluid compression, or insufficient settling time. For analog gauges, the technician should read the pointer straight-on to reduce parallax error. For digital gauges, resolution and display update rate should be considered. If the gauge or reference fluctuates, the procedure should define how the reading is selected or averaged.

A descending-pressure check is often used to evaluate hysteresis. Hysteresis is the difference between readings at the same pressure depending on whether pressure is approached from below or from above. For example, a gauge may indicate slightly different values at 50 psi during increasing pressure and decreasing pressure. This can occur because of friction, elastic behavior, mechanical movement, or sensing-element characteristics. Comparing upscale and downscale readings at the same test points helps identify this behavior.

A simplified data table may look like this:

The actual table format should follow the organization’s calibration record requirements. What matters is that the data are clear enough to show how the gauge performed against the selected acceptance criteria.

Adjusting the Gauge and Rechecking Results

After readings have been collected, each gauge indication is compared with the reference standard. The difference between the two is the measurement error at that test point. Depending on the procedure, error may be expressed in pressure units, percent of span, percent of reading, or another defined form.

The allowed tolerance should come from a defined source. It may be based on the manufacturer’s specification, the gauge accuracy class, a process requirement, a safety requirement, or an internal calibration procedure. The tolerance used for acceptance should be stated clearly in the calibration record. It is poor practice to decide after the test whether a gauge “looks close enough” without a defined acceptance basis.

If the gauge error is within tolerance at all required points, the gauge can usually be accepted for continued use, assuming it is mechanically sound and suitable for the application. If the error exceeds tolerance, the next action depends on the gauge design and the owner’s quality system. The gauge may be adjusted, repaired, downgraded to a less critical service, labeled for limited use, or rejected from service.

Zero adjustment and span adjustment affect different parts of the gauge response. A zero adjustment corrects an offset at the low end of the scale. If a gauge reads above or below zero when no pressure is applied, a zero correction may bring the starting point back into alignment. A span adjustment changes how the gauge responds across the measurement range. Span error appears when the gauge may be correct at zero but increasingly high or low at upper test points.

Not every pressure gauge has user-accessible zero and span adjustments. Many mechanical pressure gauges have limited adjustment options, and some are not intended to be recalibrated in the field. Opening or modifying a gauge may damage it, void manufacturer approvals, or compromise safety features. Digital gauges and pressure transmitters may provide electronic zero or span adjustments, but those adjustments should be made according to the manufacturer’s instructions and the applicable calibration procedure.

Adjustment should be approached carefully because correcting one part of the scale can affect another. For example, changing zero may improve the low end but shift the midrange. Changing span may improve full-scale response but alter intermediate points. This is why calibration is not complete immediately after an adjustment is made.

After any adjustment, the verification sequence should be repeated. The post-adjustment or “as-left” data must show that the gauge meets the defined acceptance criteria after correction. If the gauge still cannot meet tolerance, it should not be returned to the same service without an approved disposition. A repeated failure may indicate mechanical wear, damage, contamination, internal leakage, or an unsuitable gauge for the application.

In practical maintenance programs, adjustment history is valuable. A gauge that repeatedly requires large corrections may be drifting faster than expected. That information can support shorter calibration intervals, replacement with a more robust design, relocation away from vibration or heat, or the use of snubbers, seals, or other protective accessories where appropriate.

Recording Results in a Calibration Certificate

Calibration results should be documented in a certificate or formal calibration record. The record provides evidence that the pressure gauge calibration was performed using an appropriate reference standard and that the gauge was evaluated against defined criteria. It also supports traceability, maintenance planning, audit review, and historical performance tracking.

A useful calibration certificate normally includes both as-found and as-left information. As-found data show the condition of the gauge when received or before any adjustment. This is important because it indicates whether the gauge may have been used while out of tolerance. If the gauge was controlling a critical process, an out-of-tolerance as-found result may trigger an impact assessment under the owner’s quality system.

As-left data show the final condition of the gauge after adjustment, repair, or verification. If no adjustment was made, the as-left data may be the same as the final verification data. The record should clearly indicate whether the gauge passed or failed the defined acceptance criteria.

Typical certificate or calibration record information includes:

• Instrument identification, such as tag number, serial number, model, or asset ID.
• Gauge type, range, units, and accuracy class or tolerance basis.
• Identification of the reference standard used.
• Traceability information for the reference standard.
• Calibration date.
• Test points and recorded readings.
• As-found and as-left results, where applicable.
• Environmental or test conditions when required by the procedure.
• Pressure medium or setup details when relevant.
• Acceptance criteria and pass/fail status.
• Technician, reviewer, or laboratory approval.
• Calibration laboratory or service provider information, if outsourced.
• Next calibration due date, if assigned by the owner’s system.

In accredited or regulated environments, documentation requirements may be more formal. Records may need to include measurement uncertainty, traceability certificates for the reference standards, environmental conditions, procedure numbers, accreditation references, and decision rules. The exact content depends on the applicable standard, accreditation scope, customer requirement, and quality system.

The next calibration due date is not determined by one universal interval. It is typically assigned according to the instrument owner’s calibration program. Factors include the gauge’s application risk, service severity, historical drift, manufacturer guidance, industry practice, audit requirements, and regulatory obligations. A gauge used for noncritical indication in a benign environment may not need the same interval as a gauge used for safety, product release, or compliance decisions. Gauges exposed to vibration, shock, temperature extremes, corrosive media, or frequent pressure cycling may require more frequent verification.

Calibration records should be retained in a way that allows the history of the instrument to be reviewed. Over time, trends in as-found error can show whether the selected calibration interval is appropriate. Stable gauges may justify the existing interval, while gauges showing repeated drift or failure may require shorter intervals, better protection, or replacement.

A complete record is also important when a gauge is removed from service. If the instrument failed calibration, the certificate helps determine when it may have gone out of tolerance and which processes may have been affected. If the instrument passed, the record supports continued use and provides confidence that pressure measurements remain within the required limits.
