Selecting Low-Pressure Transducers for Critical Environments

Key Criteria for Selecting Low-Pressure Transducers in Critical Environments

A low-pressure transducer for critical environments must do more than indicate whether one space is at a higher or lower pressure than another. In cleanrooms, isolation rooms, pharmaceutical suites, semiconductor facilities, laboratories, and other controlled spaces, small pressure deviations can affect contamination control, containment, airflow direction, product quality, or process stability.

Selection should therefore begin with the function of the pressure measurement within the facility. A transducer used only for local indication has different requirements from one that drives an air-handling control loop, generates alarms, supports environmental qualification, or provides records for regulated operations. The consequences of a false reading, delayed response, drift, or loss of output should shape the specification.

A practical selection process considers several related areas together:

• Measurement accuracy and uncertainty across the required operating range
• Sensitivity and resolution at the expected differential pressure
• Pressure reference, such as differential, gauge, absolute, vacuum, or compound pressure
• Static line pressure and allowable pressure imbalance between ports
• Compatibility with the measured gas and with cleaning or decontamination conditions
• Ambient temperature, humidity, vibration, electrical noise, and enclosure requirements
• Output signal, power supply, communication protocol, and control-system compatibility
• Long-term stability, calibration access, maintainability, and documentation needs
• Failure behavior and alarm requirements for safety- or quality-critical applications

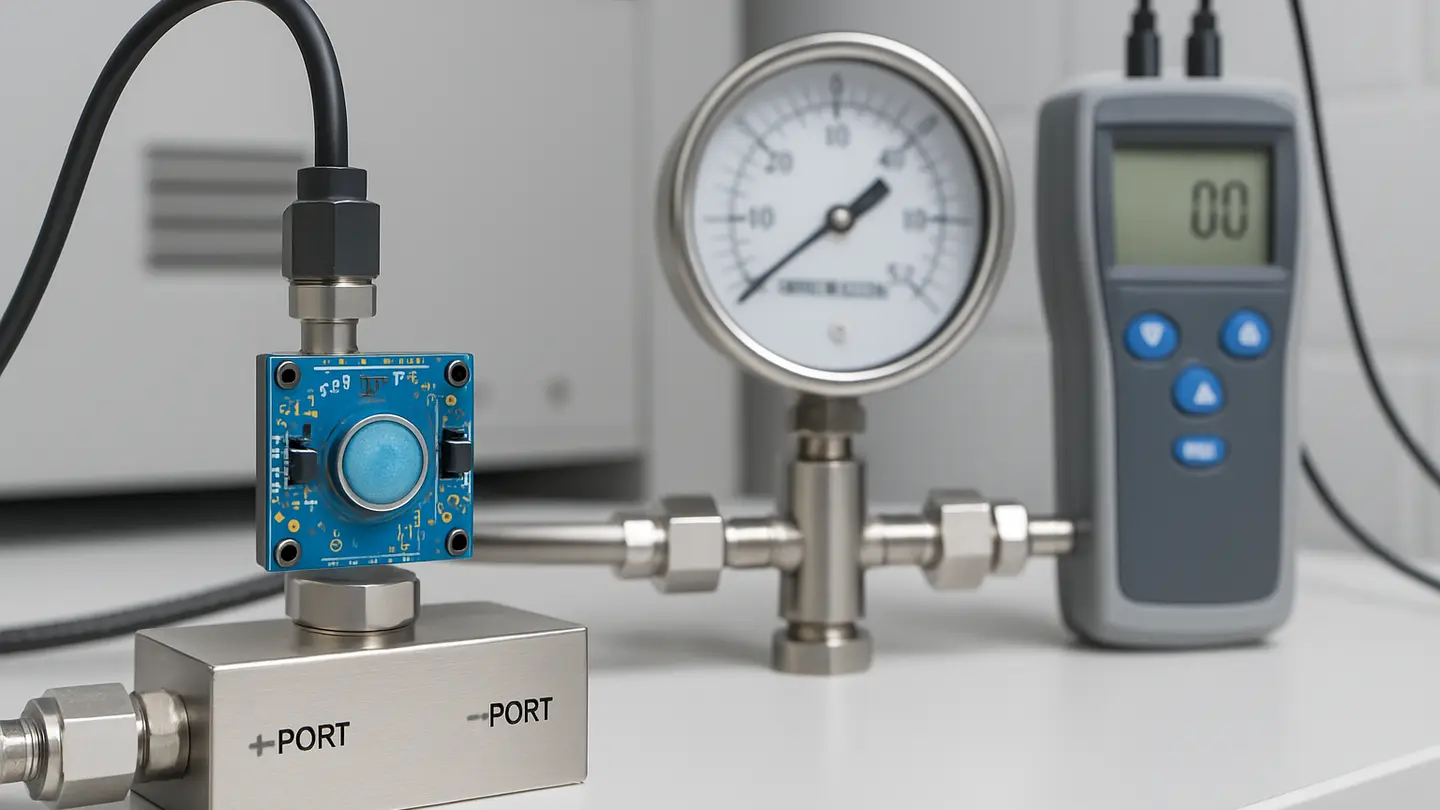

The first technical distinction is the pressure reference. Room-pressure monitoring normally uses a differential-pressure device: one port senses the controlled room and the other senses a reference area, such as a corridor, adjacent room, or plenum. The reading represents the difference between those two locations. This differs from gauge-pressure measurement, which is referenced to atmospheric pressure, and absolute-pressure measurement, which is referenced to a vacuum.

The selected range should fit the real operating differential pressure rather than simply using the broadest available range. A range that is excessively wide may make small changes difficult to resolve and can increase the practical effect of zero drift. Conversely, a range that is too narrow may be vulnerable to overpressure during fan startup, door movement, filter loading, damper changes, or maintenance events. The operating pressure should normally occupy a useful portion of the instrument span while retaining margin for expected excursions.

Static pressure deserves separate attention. A differential-pressure transducer may measure a very small difference while both pressure ports are exposed to a substantially higher common pressure. For example, a device connected across a filter, duct section, or pressurized process enclosure can see low differential pressure and relatively high line pressure at the same time. The transducer’s maximum line-pressure rating and differential overpressure rating must both suit the installation.

The measured medium also matters. Many low-differential-pressure instruments are intended for clean air or similar nonconductive gases. They may not be appropriate for corrosive vapors, condensed moisture, oxygen-enriched service, combustible gases, particulate-laden streams, or applications where liquid can enter the sensing path. Tubing materials, fittings, filters, manifolds, and any protective accessories should be reviewed alongside the transducer itself. A compatible sensor can still produce poor results if tubing leaks, becomes blocked, traps condensate, or is routed through areas with significant temperature variation.

Environmental suitability extends beyond media compatibility. Controlled rooms may be clean, but their supporting mechanical spaces can expose equipment to vibration, dust, temperature swings, electromagnetic interference, or maintenance traffic. The installation location may determine the required enclosure protection, electrical connection style, display arrangement, and mounting method. If the sensing element is installed outside the controlled room, the pressure tubing run becomes part of the measurement system and should be assessed for leakage, response delay, and damage risk.

Integration requirements should be established early. Common outputs include voltage and current signals, while some systems require digital communication or networked building-automation interfaces. The controller input type, available supply voltage, grounding arrangement, cable length, and required fault detection should be confirmed before procurement. A highly accurate transducer cannot provide dependable control if its output is poorly matched to the receiving system or if the control system cannot distinguish a valid low-pressure reading from an electrical fault.

For critical applications, the selection decision should also account for the maintenance model. Determine who will verify the reading, what reference equipment is available, how calibration records are managed, and whether taking a device offline disrupts room certification or process operation. These questions often reveal that calibration accessibility and stable long-term behavior are as important as the initial accuracy specification.

Evaluating Sensor Accuracy and Measurement Performance

Accuracy is often the first specification compared, but the headline percentage alone does not show the full expected measurement performance. Before comparing two instruments, determine the basis of each published accuracy claim. A stated value may represent nonlinearity only, or it may include additional contributors such as hysteresis, repeatability, zero setting, span setting, and temperature effects. Comparing unlike specifications can lead to an optimistic estimate of installed performance.

For low-pressure applications, accuracy is commonly expressed as a percentage of full scale or span. This means that the same percentage can correspond to very different pressure values depending on the selected range. A transducer with a narrow span may provide a smaller absolute error than a device with the same percentage specification on a much wider range. Range selection and accuracy interpretation must therefore be considered together.

Two common approaches to describing nonlinearity are best-fit-straight-line (BFSL) and end-point, also called terminal-point, methods.

With BFSL nonlinearity, measured output points are compared with a mathematically optimized straight line. Because the line is fitted to minimize overall deviation, this method can produce a smaller reported nonlinearity value. It is useful for characterizing sensor behavior, particularly when the instrument can be calibrated around a best-fit response. However, the reported BFSL value may not include zero offset or span-setting error. Those omissions matter when the device is installed as supplied and expected to meet a defined system tolerance without further adjustment.

End-point nonlinearity uses a line drawn between the actual zero-pressure output and the actual full-scale output. This method relates the response curve to the endpoints used during calibration and is often more directly relevant to field verification. When zero and span errors are included in the stated accuracy, the specification can provide a more complete indication of the measurement uncertainty expected from the instrument. Even so, buyers should read the data sheet carefully rather than assume every end-point specification includes the same error terms.

A useful comparison asks the following questions:

Total measurement uncertainty in an installed system is broader than the transducer’s catalog accuracy. Relevant contributors can include hysteresis, repeatability, thermal zero shift, thermal span shift, long-term drift, power-supply variation, signal-conversion error, controller scaling, display accuracy, and the uncertainty of the calibration reference. Pressure tubing can also introduce installation effects through leaks, restrictions, unequal line lengths, trapped liquid, or pressure pulsation.

Hysteresis is the difference in output at the same pressure depending on whether pressure approached that point from the increasing or decreasing direction. Repeatability concerns whether repeated measurements under the same conditions return the same result. Both are important when a control system operates near an alarm threshold or when room pressure changes frequently due to door openings, supply-air adjustments, or other disturbances.

Thermal behavior deserves particular attention in low-pressure measurement. Small sensor shifts caused by changing ambient temperature can become significant when the controlled differential pressure is small. Transducers installed in a stable conditioned space may see less thermal variation than devices mounted in a ceiling plenum, rooftop enclosure, equipment room, or exterior wall. Temperature compensation reduces, but does not eliminate, the need to account for environmental conditions. The compensation range should cover the actual ambient temperatures at the mounting location.

Long-term stability indicates how well a transducer maintains its calibration over time. A stable device can reduce the frequency of adjustment, but it does not eliminate the need for a verification program. Drift rates are affected by sensor design, pressure cycling, ambient conditions, media exposure, electrical conditions, and installation quality. Critical environments should use calibration intervals based on risk, historical performance, internal quality procedures, and applicable regulatory or facility requirements rather than relying solely on a generic interval.

Low-pressure sensitivity is another essential performance factor. The device should respond reliably to the smallest pressure changes that matter to the application without excessive output noise or oscillation. High sensitivity is not automatically beneficial if the signal becomes too sensitive to normal turbulence, door movement, or duct pressure fluctuations. The control strategy may require damping, averaging, or alarm delays so that transient disturbances do not create nuisance alarms while genuine pressure loss is still detected promptly.

Static-pressure tolerance and differential overpressure protection should be evaluated independently. A low differential range does not mean the instrument can safely tolerate large pressure at either port or a sudden pressure imbalance. Fan operation, blocked tubing, improper valve sequencing, filter changes, and maintenance mistakes can expose the device to conditions outside normal operation. Where such events are plausible, protective measures may include proper port routing, restrictors, manifolds, pressure-limiting arrangements, or installation procedures that prevent one port from being isolated while the other remains pressurized.

Durability also depends on the physical installation. A transducer mounted where tubing is strained, where fittings are frequently disturbed, or where service personnel can accidentally impact the unit may experience failures unrelated to sensor performance. Mounting orientation can matter for some designs, particularly when the sensor is sensitive to position or when tubing can collect moisture. The manufacturer’s mounting guidance should be followed, and the assembled system should be leak-checked after installation and after any service affecting pressure connections.

Media compatibility must include more than the normal process gas. Consider cleaning agents, disinfectants, vaporized decontamination chemicals, condensate, and possible contaminants introduced during maintenance. Where the pressure signal is taken from an air stream containing particles or moisture, protective filtration or a suitable sensing arrangement may be necessary. Any added restriction should be evaluated because it can slow response time or create unequal pressure losses between ports.

Finally, plan validation and recalibration before selecting the instrument. In a critical space, removing a transducer from service or disconnecting pressure tubes can interrupt monitoring, require room requalification, or create a temporary loss of containment indication. A device that is simple to calibrate in a workshop may be costly to maintain in place. The preferred solution depends on the facility’s procedures, redundancy strategy, access constraints, and acceptable downtime.

Using In-Place Calibration to Simplify Accuracy Verification

In-place calibration arrangements can make periodic verification less disruptive by allowing the installed transducer to be compared with a traceable reference instrument while the normal process pressure connections remain intact. This approach is particularly useful where disconnecting tubing could disturb a controlled pressure relationship, introduce leaks, require extensive access work, or interrupt continuous monitoring.

The basic principle is to provide a controlled connection point between the installed transducer and a calibrated master instrument. Depending on the system design, this may involve a calibration valve, a manifold, an actuator, or another service provision that permits the technician to apply or compare a known differential pressure. The arrangement should allow the reference device to observe the relevant pressure without unintentionally changing the normal sensing configuration.

For a differential-pressure transducer, verification commonly involves checking the output at one or more points within the operating range, including zero where practical. If the transducer supports adjustment, an in-place arrangement may also allow zero or span correction without removing the instrument. Whether adjustment is appropriate depends on the facility’s calibration procedure, the device design, access controls, and the need to preserve documented as-found data before changes are made.

In-place verification can offer several operational advantages:

• Less disturbance to pressure tubing and fittings
• Reduced chance of creating leaks during disconnection and reconnection
• Shorter maintenance windows for monitored rooms or processes
• Easier periodic comparison against a traceable reference
• Lower risk of losing the established pressure reference during service
• Better support for scheduled validation in facilities with many measurement points

These advantages do not make calibration automatic or eliminate procedural requirements. The reference instrument must have suitable accuracy and current traceability for the required measurement uncertainty. Technicians need a documented method that identifies connection points, stabilization time, test pressures, allowable tolerances, adjustment authority, and required records. The procedure should also address how the room or process is protected if the verification temporarily affects the displayed value, alarm state, or control signal.

A calibration connection should be designed to avoid introducing its own errors. Leaks, blocked passages, poor valve sealing, trapped pressure, or incorrect valve position can produce misleading results. The service arrangement should be clearly labeled, protected from unauthorized operation, and included in routine inspection. If tubing is long or routed through different temperature zones, the calibration method should account for the effect of the full installed pressure path rather than testing only the electronics.

In-place calibration is most effective when it is part of a broader maintainability strategy. That strategy may include accessible mounting locations, documented port identification, isolation procedures, spare-device planning, alarm bypass controls, and post-maintenance functional testing. For critical environments, the objective is not simply to make adjustment easier; it is to verify that the complete measurement chain continues to provide a trustworthy indication of the pressure condition that supports containment, cleanliness, or process control.
