Isolation Ring: How It Protects Pressure Instruments

What Is an Isolation Ring?

An isolation ring is an inline pressure-isolation assembly installed between process media and a pressure instrument, such as a pressure gauge, transmitter, pressure switch, or differential-pressure device. Its purpose is to transmit process pressure to the instrument while preventing the process fluid from directly entering the instrument’s pressure port.

A conventional direct pressure connection exposes the instrument connection, sensing cavity, and sometimes a narrow pressure passage to the process. That arrangement can work well with clean, non-corrosive fluids. However, it becomes less reliable when the process contains sludge, fibers, solids, sticky products, corrosive chemicals, or media that can harden or crystallize.

Isolation rings address this issue by placing a protected pressure-transfer element at the pipeline or vessel boundary. The process contacts a flexible internal liner, diaphragm-like bladder, or similar pressure-responsive element rather than the instrument’s internal sensing connection. Pressure is then transferred through a contained fill fluid to the connected instrument.

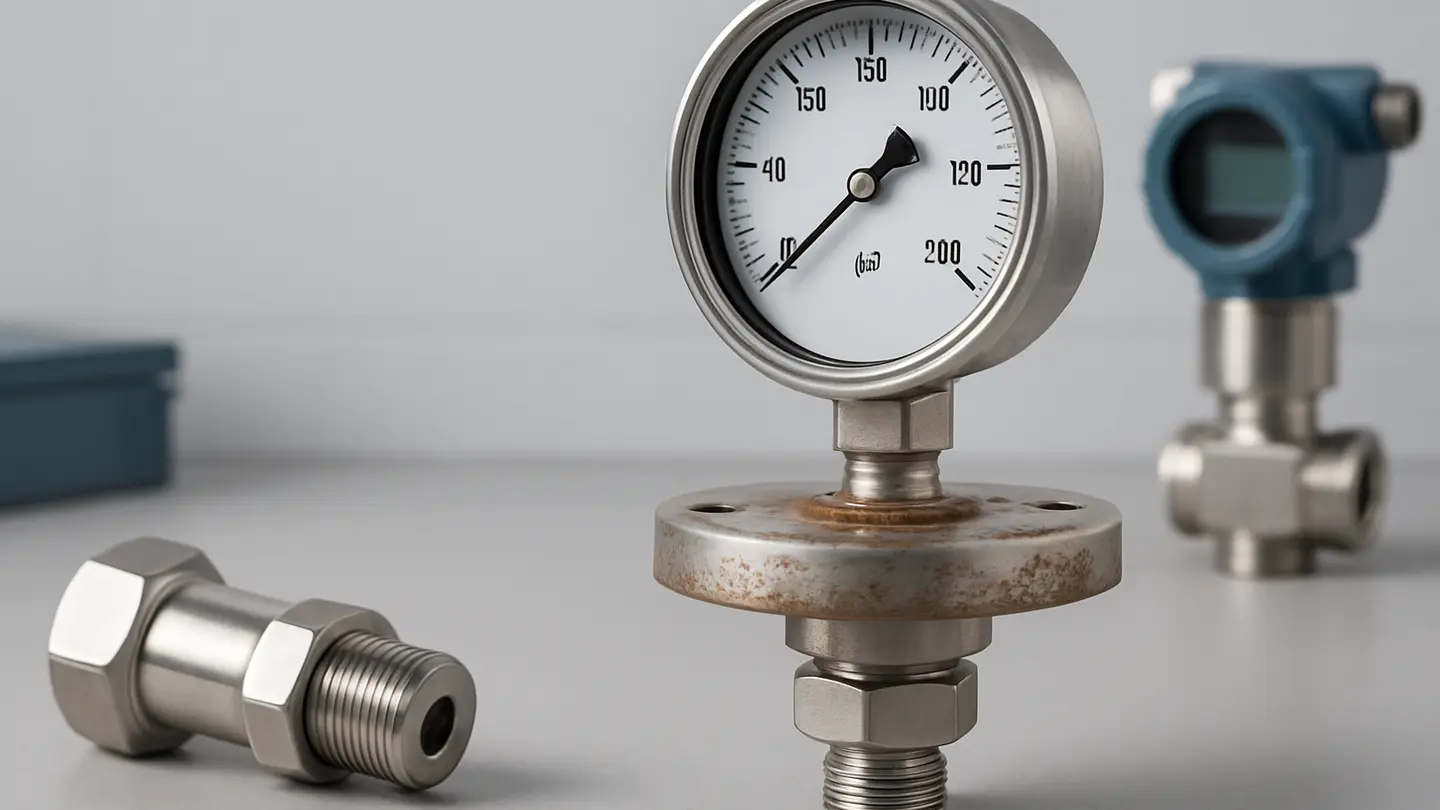

Isolation rings are related to diaphragm-seal assemblies because both isolate the instrument from the process while transmitting pressure. However, an isolation ring is generally designed as an inline piping component with a broad, flush process interface. A diaphragm seal may instead be mounted at a vessel nozzle, process port, or instrument connection. The suitable arrangement depends on piping geometry, process conditions, instrument requirements, and maintenance practices.

Typical isolation-ring applications involve viscous, solids-laden, sticky, abrasive, or corrosive process media. They are particularly relevant where a plugged pressure tap can create unreliable readings, frequent maintenance, or loss of process visibility.

Why Are Isolation Rings Used in Water and Wastewater Applications?

Water and wastewater systems can appear straightforward from a pressure-measurement perspective, but the fluid being measured is often far from clean. Raw wastewater, sludge, chemical-treatment streams, recycled process water, and filter backwash can contain suspended solids, rags, grease, grit, biological material, air, chemical residues, and corrosive compounds.

A direct-connected pressure instrument may have a small process opening or narrow sensing passage. Solids can collect at this point, and sticky material can coat the opening. Over time, buildup may restrict pressure transmission, causing a slow response, an offset reading, or a completely blocked connection. Corrosive media can also attack unsuitable wetted materials, while abrasive particles may accelerate wear.

An isolation ring helps protect the pressure-measurement interface by keeping the sensing path separated from the process media. The process-facing side is commonly designed to remain relatively flush with the pipeline interior or process boundary, reducing locations where solids can settle and accumulate. This does not make the assembly maintenance-free, but it can substantially reduce the vulnerability of the instrument connection compared with an exposed pressure port.

In water and wastewater facilities, isolation rings may be used for duties such as:

Tank and basin level measurement based on hydrostatic pressure
Pressure monitoring upstream or downstream of screens
Filter and strainer pressure measurement
Pipeline pressure monitoring
Sludge and slurry line pressure measurement
Differential-pressure measurements related to flow restrictions or filtration equipment
Pump discharge and process-transfer line monitoring

The protection provided by an isolation ring is especially useful when a pressure measurement must remain available despite variable solids content or changing process chemistry. It also helps maintenance teams avoid repeatedly removing an instrument simply to clear a blocked process connection.

Three Wastewater Treatment Stages That May Use Isolation Rings

Wastewater treatment commonly progresses through primary, secondary, and tertiary stages. Each stage has different process conditions, and each can create pressure-measurement challenges. Isolation rings may be considered where process media can obstruct, foul, corrode, or otherwise interfere with conventional instrument connections.

Primary Treatment

Primary treatment typically uses settling tanks or clarifiers to separate settleable and floatable material from incoming wastewater. Heavier solids settle toward the bottom of the tank, forming sludge, while grease, oils, and other floatable materials rise toward the surface for removal.

Mechanical scrapers may move settled solids along the tank floor toward a hopper or collection point for further handling. These areas can involve thickened solids, fibrous material, grit, and variable-density slurry. Pressure points associated with sludge transfer, hopper levels, pump suction or discharge lines, and screen-related equipment may therefore be exposed to material that can clog a conventional pressure tap.

A protected, flush sensing arrangement can be useful in these services because it reduces the likelihood that solids will enter a small instrument port. The ring must still be selected for the actual slurry characteristics, pressure range, pipe connection, and wetted-material requirements.

Secondary Treatment

Secondary treatment reduces biodegradable organic matter that remains after primary settling. The organic loading can include human waste, food residues, soaps, detergents, and other dissolved or suspended materials. Municipal facilities commonly use aerobic biological processes at this stage, often involving aeration basins and downstream clarification.

The process fluid in secondary treatment may contain biological solids, activated sludge, foaming material, and changing concentrations of suspended matter. Pressure measurements can support monitoring of air systems, mixed-liquor lines, recirculation systems, filters, and pumping equipment.

Although the fluid may be less coarse than raw influent, it can still foul narrow sensing passages. An isolation ring can provide a process-facing surface that is less prone to plugging than a small direct pressure connection, helping maintain pressure transmission to the instrument.

Tertiary Treatment

Tertiary treatment is a final polishing stage that may combine several processes to improve effluent quality before discharge or reuse. Depending on the facility, this stage can include filtration, nutrient reduction, chemical treatment, disinfection, decontamination, or other finishing processes.

Pressure measurement may be needed across filters, treatment trains, transfer lines, and chemical-dosing equipment. The fluid is usually cleaner than in earlier stages, but measurement challenges can still arise. Filtered streams may contain treatment chemicals, corrosive disinfectants, residual solids, or materials that require compatible wetted components.

Isolation rings may be used where pressure protection and a flush process interface are beneficial. Material compatibility remains important: a cleaner process stream does not automatically mean that every ring body, flexible element, gasket, or fill fluid is suitable.

How Does an Isolation Ring Work?

An isolation ring works by creating a pressure barrier between the process media and the connected pressure instrument. Instead of allowing the process fluid to enter the instrument connection, the ring uses a flexible pressure-transfer element to respond to changes in process pressure.

Although construction varies by design, an isolation-ring assembly commonly includes:

A ring body installed inline with the process piping
Flanged or threaded process connections
A flexible internal liner, bladder, diaphragm-like element, or membrane
A fill fluid behind the flexible element
One or more instrument connections for gauges, switches, or transmitters

When process pressure increases, it deflects the flexible internal element. The element does not need to expose the instrument directly to the process fluid. Instead, its movement transfers force through the fill fluid. The fill fluid conveys the pressure to the instrument’s sensing element, allowing the instrument to indicate, transmit, or switch based on process pressure.

Because liquids are relatively resistant to compression, the fill fluid can transfer pressure effectively when the assembly is properly filled, sealed, and matched to the instrument. However, the entire system has practical limits. The flexible element can move only a finite amount, and the instrument itself may require a certain fluid displacement to operate across its range.

Some isolation-ring assemblies can support more than one connected pressure instrument, provided the assembly has adequate displacement capacity and the connected devices do not create unacceptable measurement effects. Adding instruments can increase the system’s internal volume and required displacement, so this arrangement should be evaluated rather than assumed.

The isolation ring protects the instrument connection, but it does not eliminate all process-related concerns. A severely fouling process can still coat the process-facing surface, and incompatible materials can still corrode, swell, harden, or fail.

Common Types of Isolation Rings

Isolation rings are available in several connection styles. In water and wastewater applications, common configurations include wafer, bolt-through, and threaded designs.

The best configuration depends on the piping arrangement, pipe size, pressure rating, available installation space, maintenance approach, instrument location, and type of process connection already present. The goal is not simply to fit the ring into the line, but to preserve a reliable pressure path while minimizing buildup and avoiding installation damage.

Wafer Isolation Rings

Wafer isolation rings are inline assemblies installed between pipe flanges. They are commonly used where continuous pressure measurement is required and a broad, flush process interface is preferred.

The wafer-style body is positioned between mating flanges, with the piping hardware clamping the assembly in place. Its process-facing geometry is intended to limit media buildup around the pressure-sensing interface. This can be helpful for wastewater, sludge, slurry, and other services in which a conventional side tap might become obstructed.

Wafer configurations can simplify integration into an existing flanged pipeline, but installers should confirm flange compatibility, gasket arrangement, bolt length, available clearance, and the required orientation of the instrument connection. Available pipe-size coverage depends on the specific design and manufacturer.

Bolt-Through Isolation Rings

Bolt-through isolation rings are another inline option for continuous pressure measurement. In this arrangement, installation bolts pass through the ring and adjoining pipe flanges, forming part of the assembled piping joint.

Like wafer rings, bolt-through designs are intended to provide process-media isolation while reducing accumulation near the pressure connection. Their inline construction can be useful where direct instrument connections would project into or collect material from the process.

The mechanical details of a bolt-through installation matter. Bolt pattern, flange dimensions, gasket selection, tightening sequence, and torque practices must suit the piping system and the ring design. Incorrect tightening can cause leakage, distort the flexible element, or affect the sealing surfaces.

Bolt-through isolation rings are offered across a range of nominal pipe sizes, but suitability must be verified for the actual piping standard and operating conditions.

Threaded Isolation Rings

Threaded isolation rings provide the same fundamental function—separating the pressure instrument from the process media—but use threaded process connections rather than being installed between pipe flanges.

They may be selected where a compact threaded inline installation is suitable, such as smaller process lines, localized measurement points, or systems where flanged connections are not practical. The compact form can be useful, but threaded joints require careful attention to sealing, orientation, mechanical support, and accessibility for maintenance.

As with other isolation assemblies, fill-fluid selection is critical. The fill fluid must remain suitable for the operating temperature and must not create an unacceptable risk if the flexible process barrier fails. Process compatibility, temperature exposure, pressure range, and the connected instrument’s requirements should all be reviewed before installation.

How to Select an Isolation Ring for a Pressure Application

Selecting an isolation ring is a system-design task rather than a simple pipe-fitting decision. The ring, fill fluid, instrument, process media, piping connection, and expected operating temperatures all affect measurement performance.

Start with wetted-material compatibility. The ring body, flexible element, seals, gaskets, and any process-facing hardware must withstand the chemical and physical properties of the medium. Consider corrosion, abrasion, solids content, temperature, cleaning chemicals, and the possibility of chemical concentration changes during startup, upset conditions, or maintenance.

Fill-fluid selection also matters. The fill fluid must remain stable across the expected temperature range and should be suitable for the instrument and application. A fill fluid that expands significantly at elevated temperature or contracts in cold conditions can shift the indicated pressure.

Another important consideration is displacement capacity. The isolation ring must provide more usable displacement than the connected instrument or instruments require. If the flexible element reaches its practical movement limit before the instrument responds correctly, the assembly may produce inaccurate readings or fail to cover the required pressure range.

Assess the complete measurement system for effects on:

Accuracy and repeatability
Resolution and response behavior
Zero position
Span adjustment
Pressure-switch set points
Temperature-related reading changes
Instrument overpressure capability

Thermal effects deserve particular attention. As fill fluid warms, it expands; as it cools, it contracts. In a sealed system, that volume change can move the instrument sensing element and create an apparent pressure change even when the actual process pressure has not changed.

The same fill-fluid volume change can produce a larger percentage error in a low-pressure instrument than in a higher-pressure instrument. For example, a small apparent pressure shift is more significant when the normal operating pressure is low. Lower internal instrument volume can help reduce this temperature-effect error because less fluid displacement is required to influence the sensing element.

Finally, consider maintainability. A ring that is technically compatible but difficult to inspect, remove, or reinstall may create avoidable downtime. The selected configuration should support the facility’s isolation procedures, calibration practices, and access constraints.

Installation and Maintenance Considerations

Proper installation is essential because an isolation ring is both a pressure boundary component and part of the measurement system. During handling and installation, avoid damaging the flexible internal element, sealing surfaces, instrument connection, or fill-fluid system.

Before placing the assembly into service, confirm that:

The process connection style, gasket arrangement, and hardware are correct.
The instrument is installed in the intended orientation.
The flexible element has not been punctured, distorted, or exposed to damaging tools.
There are no visible leaks at flanges, threads, fittings, or instrument connections.
The instrument range is appropriate for expected operating and upset pressures.

After installation, verify instrument zero, calibration, and—where applicable—pressure-switch set points. The isolation assembly can alter the behavior of the connected instrument compared with a direct pressure connection. Any zero shift, span change, or switch-point effect should be identified before the measurement is relied upon for process control or protection.

Routine inspection should account for the actual service severity. Check for process buildup, corrosion, leakage, damaged hardware, changing process chemistry, and changes in instrument response. A reading that becomes slow, unstable, or inconsistent with nearby process information may indicate fouling, fill-fluid effects, mechanical damage, or an instrument problem.

Isolation rings reduce the direct exposure of pressure instruments to difficult process media, but they do not eliminate the need for compatible materials, correct installation, and regular maintenance. Their value comes from treating pressure measurement as a complete assembly: process connection, isolation element, fill system, instrument, and maintenance practice all need to work together.
