Diaphragm Seal vs Isolation Ring for Pressure

Protecting pressure instruments from corrosion with diaphragm seals

A diaphragm seal separates the process medium from the sensing components of a pressure instrument. Instead of allowing the fluid, gas, slurry, or vapor to reach the gauge, switch, or transmitter directly, process pressure deflects a flexible diaphragm. A filled pressure-transmission system then conveys that pressure to the instrument.

This arrangement can protect sensing elements that may not be suitable for direct contact with the process. Examples include Bourdon tubes in mechanical gauges, actuator seals in pressure switches, and sensing diaphragms in pressure transmitters. It can also isolate small internal passages that would otherwise be exposed to corrosive fluid.

Material selection is the central consideration. The wetted diaphragm, lower housing, process connection, and any exposed gaskets or seals must be compatible with the process medium. The instrument itself may also contain wetted materials if the isolation arrangement does not fully separate it from the process.

Chemical compatibility is not determined by chemical name alone. Selection should account for:

Chemical identity and possible contaminants
Chemical concentration
Operating and cleaning temperatures
Pressure and pressure cycling
Phase of the medium, such as liquid, vapor, or condensate
Presence of chlorides, sulfides, abrasive particles, or oxidizing agents
Expected upset conditions, including startup, shutdown, and cleaning cycles

Diaphragm seals can be configured with corrosion-resistant metallic or nonmetallic wetted components. However, no diaphragm, housing, elastomer, or polymer should be considered universally compatible. A material that performs well in one concentration or temperature range may corrode, swell, embrittle, permeate, or lose mechanical strength in another. The final diaphragm-seal configuration should therefore be checked against the actual process conditions rather than selected from a general material list.

Using diaphragm seals to prevent clogging in pressure instruments

Corrosion is not the only reason to isolate a pressure instrument. Many processes contain solids, fibers, crystals, viscous liquids, coatings, or suspended particles that can enter a gauge socket, transmitter port, or pressure-switch cavity. Once material accumulates in these small sensing passages, the pressure signal can become sluggish, unstable, offset, or completely blocked.

A diaphragm seal places a flexible barrier between the process and the instrument. The process contacts the diaphragm surface rather than entering the instrument’s sensing cavity. This can improve measurement reliability in applications involving thick liquids, sediment-bearing fluids, crystallizing chemicals, pulp, food products, polymers, or other media likely to foul narrow passages.

Some diaphragm-seal designs provide a larger or more accessible process cavity than the pressure instrument itself. A properly selected configuration can reduce trapped volume and make it easier to remove buildup during maintenance. The connection geometry matters: a poorly matched seal can still create a dead space where solids settle or where viscous material remains trapped.

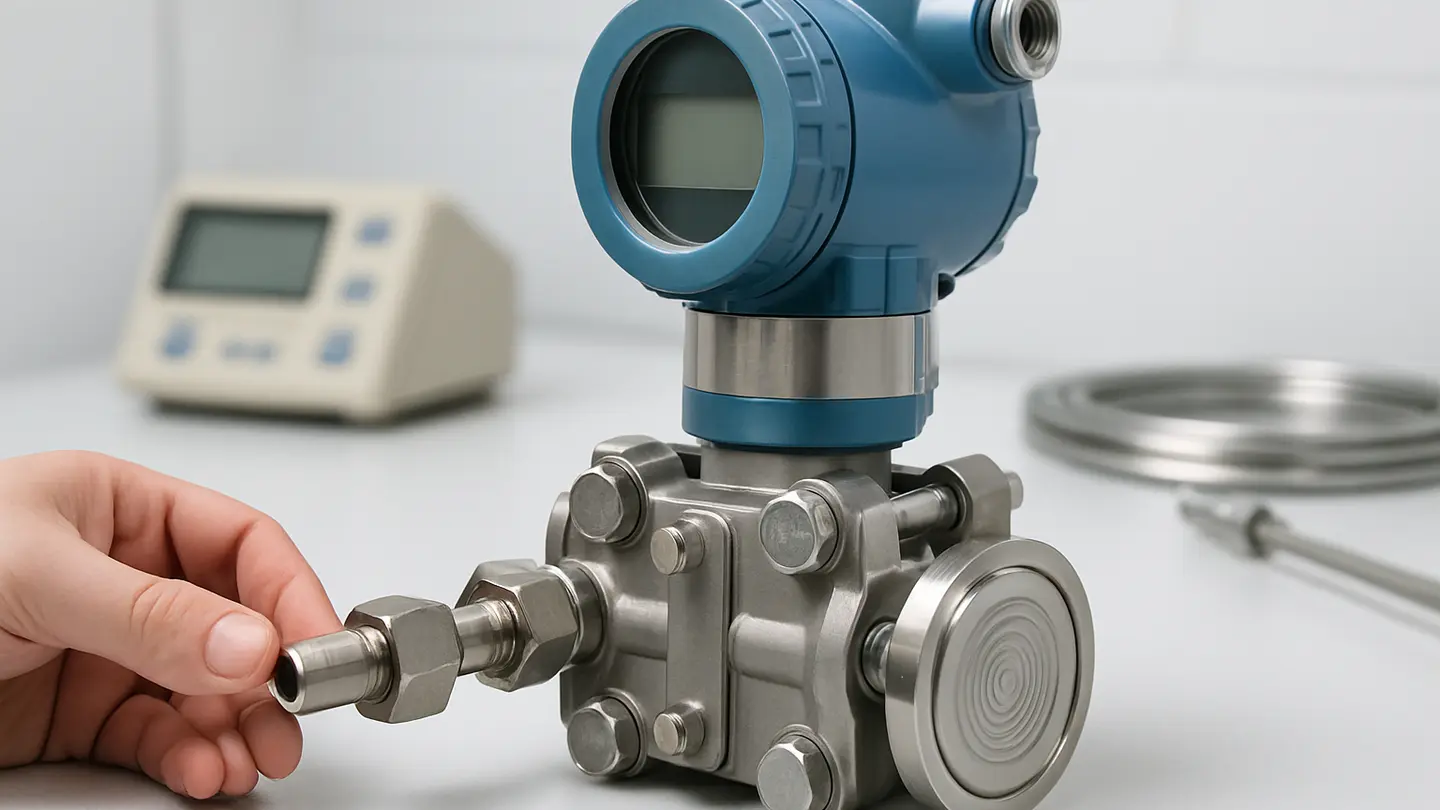

Single or dual flush ports may be useful where periodic cleaning is expected. These ports can allow a compatible flushing fluid, cleaning solution, or purge medium to be introduced while the seal remains installed. Their usefulness depends on the seal design, process connection, cleaning method, and allowable contamination risk. Flushing should not be assumed to be suitable for every application; the cleaning fluid must be compatible with the process, the diaphragm-seal materials, and site procedures.

Connection style also affects clogging behavior and maintainability. Inline flanged, threaded, welded, and saddle-style process connections may be selected to suit the piping arrangement and process medium. When correctly matched to the line geometry, some configurations reduce dead volume and may allow instrument removal without dismantling the process piping. Whether this is possible depends on the selected connection design, isolation valves, mounting arrangement, and plant maintenance practices.

Choosing an isolation ring instead of a diaphragm seal

An isolation ring is an inline isolator typically used where heavy slurry, sludge, or large solids could foul a conventional pressure-instrument connection or even obstruct a diaphragm-seal cavity. It is commonly installed between pipe flanges, creating a continuous internal flow path rather than relying on a small pressure tap.

The ring contains a flexible nonmetallic sensing element, sometimes described as a liner or bladder. Process pressure acts on this element, and the resulting pressure is transmitted through a filled system to the connected gauge, switch, or transmitter. The instrument is therefore protected from direct exposure to the process medium.

Isolation rings are often considered in water, wastewater, mining, slurry handling, and similar services where the process contains abrasive particulate, solids, or thick deposits. Their inline construction can be advantageous when a small side-mounted pressure port would quickly plug.

In a diaphragm seal vs isolation ring comparison, the primary distinction is usually process handling rather than measurement principle. Both isolate the instrument from the process and transmit pressure through a diaphragm-and-fill-fluid system. The isolation ring is generally better suited to applications where material moving through the pipe could block a smaller cavity or accumulate in a conventional pressure connection.

There are limits to this advantage. Isolation-ring wetted material options and temperature capability may be more constrained than those available for diaphragm seals. The flexible sensing element is commonly nonmetallic, so chemical exposure, abrasion, pressure cycling, and process temperature must all be reviewed carefully. A ring that handles abrasive slurry may not be appropriate for a high-temperature chemical service, and a chemically resistant material may not have the required mechanical durability for a particular solids-handling process.

The selected ring assembly should be evaluated as a complete system, including flange size, pressure rating, liner material, fill fluid, instrument connection, and operating temperature.

Selecting an isolator for extreme process temperatures

High and low process temperatures affect more than material compatibility. They can influence pressure accuracy, response time, fill-fluid behavior, instrument survivability, seal integrity, and long-term containment performance.

A diaphragm seal can reduce direct heat transfer from the process to the pressure instrument, particularly when the instrument is mounted away from the process connection. However, isolation does not eliminate temperature effects. The fill fluid between the seal diaphragm and the instrument expands and contracts with temperature. This thermal behavior can introduce zero shift or other measurement error, especially where the process temperature varies substantially.

At low temperatures, fill-fluid viscosity can increase and slow the pressure response. Materials used in diaphragms, gaskets, and isolation-ring sensing elements may also stiffen or lose flexibility. At elevated temperatures, diaphragm strength, seal materials, fill-fluid stability, and instrument temperature limits all require review.

Using an isolator solely as a temperature-management device is not always the best solution. At high process temperature, isolation is generally most justified when the application also needs corrosion protection, anti-plugging performance, contamination control, or specialized wetted materials. Otherwise, simpler instrument mounting arrangements may be more appropriate.

Several methods can help manage temperature at the instrument:

Capillary lines: A remote-mounted instrument connected by capillary can increase separation from the process. Capillary routing, ambient temperature exposure, and fill-fluid behavior must be considered.
Micro-tube siphons: These can add a heat-transfer path between the process connection and instrument assembly.
Uninsulated stand-off piping: An exposed length of piping can allow heat to dissipate before reaching the instrument. It must be supported and designed to avoid vibration or plugging concerns.
Steam siphons: In steam service, a siphon can maintain a condensate barrier between hot steam and the instrument. The condensate reduces direct steam exposure and moderates instrument temperature.

Steam-siphon placement, orientation, and interaction with a diaphragm seal require application-specific review. This is especially important where steam contains chemically aggressive contaminants or where condensate chemistry differs from bulk steam conditions. The assembly must protect both the instrument and the wetted isolation components without creating a trapped volume, inaccurate pressure reference, or maintenance hazard.

The role of material traceability for diaphragm seals and isolation rings

Material traceability is the documentation used to identify the origin, grade, and composition of wetted materials in an isolation assembly. Depending on project requirements, traceability may connect a diaphragm, lower housing, flange, process connection, or isolation-ring wetted element to material records, inspection records, heat numbers, or production documentation.

Traceability supports quality assurance in applications where material identity is critical. It may also be required for regulated facilities, hazardous process service, customer quality plans, or projects with defined documentation packages. The value is not limited to proving a nominal alloy grade; it helps establish whether the supplied wetted material corresponds to the material specified for the application.

EN 10204 documentation is often referenced in this context, but the requested document type should be interpreted carefully. Type 2.2 documentation generally provides a manufacturer statement of compliance with the order and may include results based on non-specific inspection. Type 3.1 inspection documentation is associated with specific inspection and provides test results validated by an authorized inspection representative independent of the manufacturing production department. Project specifications and the current applicable standard should define exactly what documentation is required.

Traceability should not be assumed from a material description alone. A statement that a diaphragm is made from a particular alloy does not necessarily provide the same level of documentation as a traceable record linked to the supplied component. Where the pressure instrument’s sensing assembly cannot provide equivalent material records, a diaphragm seal with traceable wetted materials may help satisfy the documentation requirement for the process-contacting portion of the installation.

Key certifications for diaphragm seals and isolation rings

Certification requirements should be derived from the process hazard, wetted-material requirements, regulations, and project specification. A suitable isolation device for one service may not meet documentation or material requirements for another, even if the mechanical connection appears identical.

Common cases include sour service containing hydrogen sulfide and potable-water applications. These services can influence the choice of diaphragm material, lower housing, isolation-ring sensing element, elastomers, fill-fluid arrangement, and supporting documentation.

Certification must be checked for the selected configuration, not assumed from an individual component. A diaphragm may be made from an acceptable material while the housing, process connection, weld procedure, gasket, or connected instrument does not meet the complete project requirement.

When is NACE or AMPP compliance needed?

Sour-service applications containing hydrogen sulfide may require wetted materials that conform to applicable NACE/AMPP material requirements. The relevant requirement depends on the governing sour-service standard and the actual environment, including sulfide concentration, pressure, temperature, aqueous conditions, pH, chloride content, and exposure mechanism.

Not every pressure instrument can be supplied with wetted materials suitable for the required sour-service specification. In such cases, a diaphragm seal can isolate the instrument from the process while placing appropriately selected wetted materials at the process boundary.

This approach does not automatically make the complete assembly compliant. The project must confirm the applicable standard, current edition, material restrictions, documentation requirements, and whether compliance applies only to process-wetted seal components or to the complete instrument-and-isolator arrangement. Material acceptance should be based on the real operating environment rather than on a general claim that an alloy is “NACE compliant.”

When does NSF certification matter?

NSF certification can matter where wetted components contact potable water or water intended for human consumption. In these applications, the relevant certification demonstrates that materials have been evaluated for drinking-water contact under the applicable standard and certification scope.

A certified diaphragm seal or isolation device may separate potable water from instrument materials that do not have the necessary approval. This can allow the pressure instrument to remain outside the wetted boundary while the certified isolation assembly contacts the water.

The applicable NSF standard, approved material configuration, and certification scope must be confirmed for the intended installation. Certification can depend on the exact diaphragm, housing, elastomer, coating, and connection arrangement. It should not be assumed that a certified isolator remains compliant after connection to an uncertified instrument if the final assembly introduces additional wetted materials or changes the approved configuration.

How to select between a diaphragm seal and an isolation ring

Selecting between a diaphragm seal and an isolation ring begins with the process, not the instrument model. The key inputs are process chemistry, pressure, temperature, solids content, particle size, viscosity, clogging risk, cleaning requirements, connection style, required response characteristics, and documentation obligations.

A diaphragm seal is often the more flexible choice where corrosion resistance, specialized wetted materials, flush access, low dead volume, or compliance-driven material selection is important. It can protect gauges, switches, and transmitters from aggressive chemicals and from process media that would plug small sensing passages.

An isolation ring is often better suited to appropriate inline, lower-pressure services involving heavy slurry, sludge, or larger solids. Its continuous internal flow path can reduce the likelihood that solids will block a small pressure port. However, its flexible sensing element must be compatible with the process medium, abrasion level, temperature, and pressure conditions.

A practical diaphragm seal vs isolation ring review should answer the following questions:

What process materials will contact the isolator during normal operation, cleaning, and upset conditions?
Can solids settle, harden, crystallize, or coat the pressure connection?
Is the main risk corrosion, plugging, abrasion, contamination, or a combination of these?
Does the installation need flush ports, remote mounting, or a removable instrument arrangement?
Are temperature effects on the fill fluid and instrument acceptable for the required measurement performance?
Are traceability records, sour-service material requirements, or potable-water certifications required?
Does the complete instrument-and-isolator assembly meet the specified pressure, temperature, and material requirements?

A structured application review helps prevent an isolator from becoming the weak point in the measurement system. The correct choice protects the instrument while preserving a dependable pressure signal under actual process conditions.
