Diaphragm Seal Flushing Connections

What a diaphragm seal flushing connection does

A diaphragm seal flushing connection is an auxiliary port provided on some diaphragm seal assemblies so the area at or near the process-side diaphragm can be flushed, drained, vented, or cleared. Its main purpose is practical: it gives operators a controlled access point for removing process residue that might otherwise collect around the diaphragm and affect measurement performance.

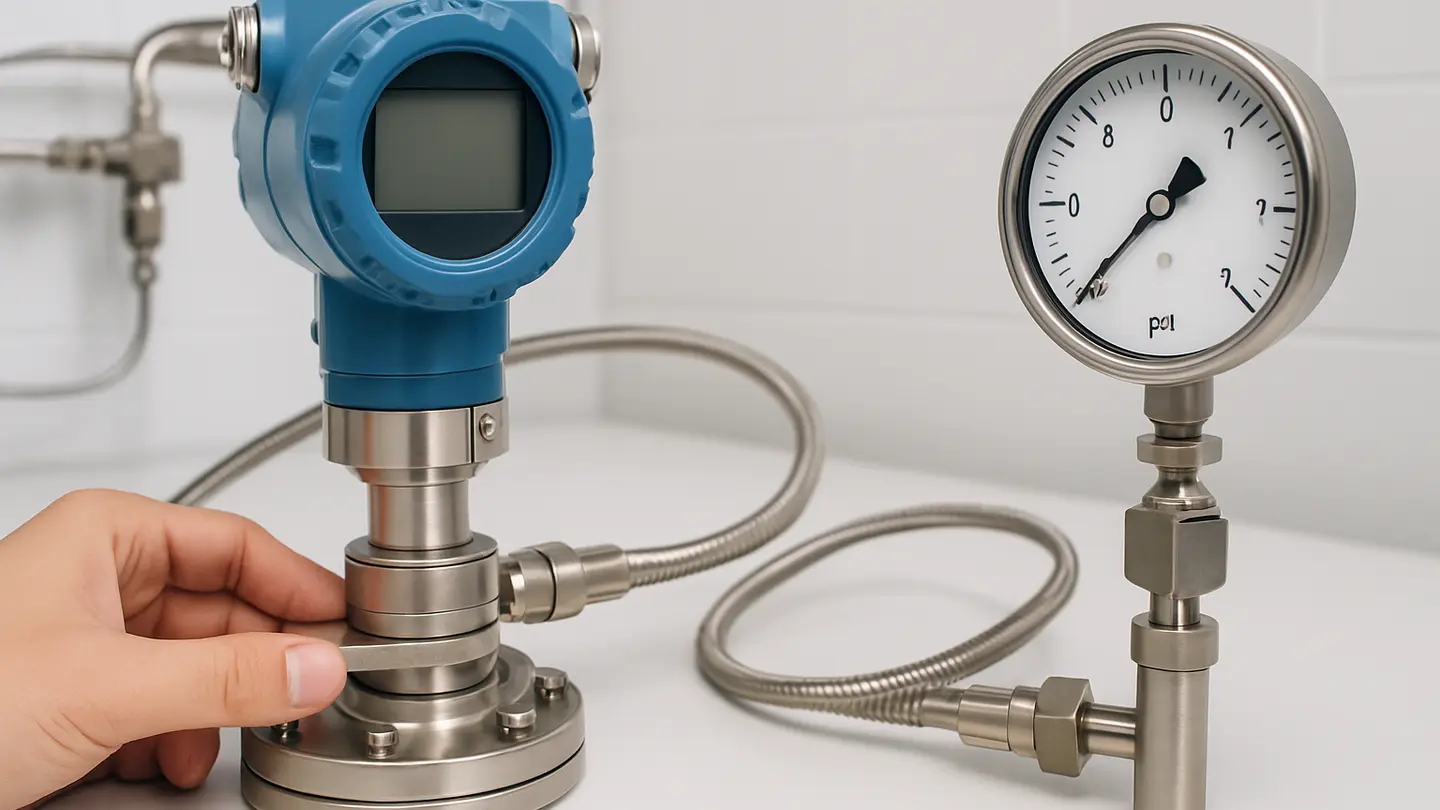

A diaphragm seal isolates a pressure instrument from the process by using a thin, flexible diaphragm and a fill fluid. Process pressure deflects the diaphragm, and that pressure is transmitted through the fill fluid to a gauge, transmitter, or switch. For the seal to respond properly, the process pressure must act freely on the diaphragm surface. If material builds up, hardens, crystallizes, settles, or clogs the surrounding cavity, the diaphragm may no longer “see” the process pressure cleanly. The result can be sluggish response, unstable indication, measurement offset, or a seal that requires removal for cleaning more often than expected.

The flushing connection helps reduce that problem by allowing a cleaning fluid, purge medium, or other suitable service fluid to be introduced through the port. Depending on the seal design and installation, the connection may be used to wash away deposits, clear trapped material, or provide access for maintenance flushing. It does not make a diaphragm seal immune to buildup, and it does not replace proper seal selection, but it can make the installation more maintainable when the process is prone to fouling.

In many designs, the flushing connection is a threaded port machined into the lower housing of the diaphragm seal. The lower housing is the process-side body component that interfaces with the process connection and supports the diaphragm area. By placing the port in this part of the assembly, the flushing path can reach the region where residue is most likely to interfere with the diaphragm.

Flushing connections are not limited to one general seal style. They can be supplied on some threaded diaphragm seal configurations and on some flanged diaphragm seal configurations. Availability depends on the seal geometry, pressure rating, material, connection size, and manufacturer design. It should not be assumed that every diaphragm seal can accept a flush port after the fact; in many cases, the option must be specified when the seal is manufactured.

Common flushing port sizes include 1/8 in., 1/4 in., and 1/2 in. connections. These sizes are often threaded, but the exact thread form, pressure rating, and compatibility requirements must match the seal design and the process conditions. The port must be large enough to be useful for the expected cleaning task, but it also adds another pressure boundary opening that must be sealed correctly.

A single flushing connection is typical. One port may be enough for periodic rinsing, draining, or clearing of the diaphragm cavity. Some seal sizes or configurations may allow dual flushing connections. Dual ports can provide more flexibility because one port can be used as an inlet and another as an outlet, but this depends on the physical design of the seal and the available space in the lower housing. Dual connections also add more potential leak points, so they should be chosen only when they provide a clear maintenance benefit.

The important point is that the flushing connection is not a measurement element by itself. It is an access feature. It supports the diaphragm seal by making the process-side area easier to clean or clear. Its value depends on the process behavior, the seal orientation, the expected maintenance procedure, and whether the added port can be closed safely when not in use.

How to close the flushing port when it is not in use

A flushing port must be sealed whenever it is not actively being used. Because the port opens into the process-side region of the diaphragm seal, an unsealed or poorly sealed connection can allow process media to leak. That leakage may create a safety hazard, an environmental issue, a product loss problem, or a measurement reliability problem.

The most common closure methods are a flushing plug or an isolation valve. A plug is the simpler option. It closes the port directly and is often suitable where flushing is performed only during shutdowns or scheduled maintenance. A valve is more useful where operators need to connect flushing equipment without removing a plug each time, or where the port may be used during controlled operating procedures. In either case, the closure is part of the pressure boundary and must be selected with the same care as other wetted components.

A flushing plug should generally match the diaphragm seal lower housing material. This is a practical rule because the plug is exposed to the same process environment as the port and adjacent housing. Matching materials helps avoid compatibility problems such as corrosion of the plug, galvanic effects between dissimilar metals, or contamination caused by unsuitable materials. However, material matching alone is not enough. The plug also needs suitable pressure and temperature ratings, the correct thread engagement, and an appropriate sealing method for the process conditions.

If an isolation valve is used, all wetted parts of the valve must be compatible with the process media. This includes the valve body, stem or ball, seats, seals, packing, and any adapters or fittings between the valve and the flushing connection. A valve that is mechanically convenient but chemically unsuitable can become the weak point of the installation. It may leak, seize, contaminate the process, or fail prematurely.

The closure method should also be evaluated for operating procedure. For example, if the process is hot, corrosive, toxic, under high pressure, or otherwise hazardous, removing a plug without first isolating and depressurizing the connection may be unsafe. Where a valve is fitted, operators need a clear procedure for confirming whether the valve is closed, whether the downstream cap or fitting is installed, and whether the flushing line is isolated after use.

The flushing connection should never be treated as a casual utility port. It is attached to a pressure-containing instrument seal. Any plug, valve, gasket, thread sealant, adapter, hose, or flushing connection accessory must be suitable for the pressure, temperature, materials, and process fluid involved. The safest design is the one that allows the required cleaning access while keeping the number of possible leak paths as low as practical.

When a flushing connection is worth adding to a diaphragm seal

A flushing connection is worth considering when the process may obstruct the diaphragm area. Typical obstruction mechanisms include clogging, coating, crystallizing, settling, or forming residue that can accumulate around the diaphragm face or within the process-side cavity. The common factor is not a specific industry or fluid name; it is the likelihood that material will interfere with free pressure transmission to the diaphragm.

The feature is most useful when operators need a way to clean or flush the diaphragm area during maintenance or controlled operation. Without a flushing connection, cleaning may require removing the instrument or seal from the process connection. That removal can be time-consuming and may require process isolation, depressurization, cleaning permits, replacement gaskets, and recalibration checks after reinstallation. A flush port can reduce the need for disassembly by providing access to the problem area while the seal remains installed, if the installation and procedure allow it.

A flushing connection can be especially valuable where buildup is expected to be gradual rather than immediate. In these cases, the instrument may operate normally after installation but drift or respond slowly as deposits accumulate. Periodic flushing can help restore access to the diaphragm surface before the measurement becomes unreliable. The port gives maintenance personnel a defined point for cleaning rather than relying on improvised methods.

However, the option is application-dependent. It should not be treated as mandatory for every diaphragm seal. Many diaphragm seals are used in clean or non-fouling services where the diaphragm remains exposed to the process without significant buildup. In those applications, a flush port may add cost, complexity, and another possible leak path without providing a meaningful benefit.

The decision should begin with the process conditions. Useful questions include:

Is the process fluid likely to leave solids, crystals, films, or sticky residue near the diaphragm?
Can the material settle in the seal cavity because of the mounting orientation?
Has a similar installation required frequent cleaning or removal?
Would flushing in place reduce maintenance time or improve measurement availability?
Is there a safe and compatible flushing medium available?
Can the flushing port be isolated and sealed reliably after use?

If the answers point to regular fouling or difficult cleaning access, the flushing connection may be justified. If the process is clean and the seal can be maintained easily without a port, the option may not be necessary.

Cost is another part of the selection. A diaphragm seal with a flush port generally costs more than a comparable seal without one. The additional machining, fittings, plugs, valves, material requirements, and inspection needs all contribute to the total installed cost. A dual-port arrangement or a valve-equipped assembly may cost more again. For this reason, the port should be specified when it solves a real maintenance or reliability problem, not simply because it is available.

There is also a design trade-off. Every additional process opening creates another place that must remain sealed. In severe service, that may require higher-grade materials, special sealing practices, or more frequent inspection. The flush port can improve cleanability, but it can also introduce maintenance requirements of its own. A plugged port may need periodic checking for leakage, corrosion, or thread damage. A valve may need cycling, inspection, or replacement according to site practice.

The flushing method should also be considered before specifying the connection. A port only provides access; it does not define the cleaning process. The user must determine what fluid will be used for flushing, where that fluid will go, how pressure will be controlled, and whether the flushing operation could damage the diaphragm. Excessive mechanical force, incompatible chemicals, or improper pressure application can harm the diaphragm seal or contaminate the fill system indirectly through diaphragm damage.

For pressure measurement reliability, the goal is to keep the diaphragm exposed to representative process pressure. A flushing connection supports that goal when process residue is a credible threat. It is not a cure for every measurement problem, and it is not a substitute for choosing the correct diaphragm material, diaphragm size, process connection, fill fluid, capillary arrangement, or mounting orientation. It is best viewed as a maintenance access feature that belongs in applications where cleaning access is likely to be needed.

Diaphragm seal styles that can be configured for flushing

Some threaded diaphragm seal designs can be manufactured with integral flushing connections. In this arrangement, the auxiliary port is built directly into the seal body, usually in the lower housing. The process connection may be threaded into a vessel, pipe fitting, adapter, or other process connection point, while the flush port provides a separate access path to the diaphragm area.

Threaded designs are often compact, so the feasibility of an integral flush connection depends on available body size and geometry. A small seal may not have enough material or space to include a useful port while maintaining the necessary pressure boundary strength. Larger threaded seals may provide more room for a port, but availability still depends on the specific design. The port size, thread type, plug or valve arrangement, and material must be selected as part of the seal specification.

Some flanged diaphragm seals can also be supplied with flushing connections. A flanged seal mounts between the pressure instrument assembly and a mating process flange. In an integral flush-port design, the lower housing or flange-side body includes the auxiliary connection. This can allow flushing access without adding a separate spacer accessory. As with threaded seals, the design must maintain the required pressure rating and process compatibility.

For certain flanged installations, a separate flushing ring may be used instead of an integral flush port. A flushing ring is an accessory installed between the flanged diaphragm seal and the mating process flange. It creates an intermediate ring section with one or more auxiliary connections that can be used for flushing, draining, venting, or cleaning access depending on the installation.

The flushing ring approach can be useful when the seal itself does not include an integral port, or when the piping arrangement benefits from placing the auxiliary connection in a separate component. It may also provide flexibility in port orientation or connection arrangement. However, it adds thickness to the flange assembly and introduces additional gasketed joints. Those joints must be compatible with the process and tightened according to the applicable flange procedure.

The choice between an integral flushing connection and a flushing ring depends on the mechanical layout and maintenance goal. An integral port keeps the feature within the diaphragm seal body and may reduce the number of separate components. A flushing ring can provide access in flanged systems where an integral port is unavailable or undesirable. Neither approach is automatically better. The correct choice depends on pressure rating, flange standard, materials, space, port orientation, gasket compatibility, and the required cleaning procedure.

When specifying either style, several details should be reviewed:

Whether the diaphragm seal design can accept a flushing connection in the required size.
Whether one port is sufficient or whether a two-port flushing path is needed.
Whether the port orientation will be accessible after installation.
Whether the plug, valve, or fitting materials match the process requirements.
Whether the added connection affects installation clearance.
Whether maintenance personnel can safely connect and disconnect flushing equipment.
Whether the flushing fluid and disposal path are acceptable for the process.

It is also important to distinguish between “available as an option” and “suitable for the application.” A catalog or datasheet may show that a seal style can be ordered with a flush port, but the final selection still needs to consider the actual service. Pressure, temperature, chemical compatibility, cleaning method, and installation geometry all determine whether the configuration is appropriate.

A diaphragm seal flushing connection is most effective when it is planned as part of the complete measurement assembly. The pressure instrument, diaphragm seal, fill fluid, process connection, flushing hardware, and maintenance procedure should work together. If the port is added without considering how it will be used and sealed, it may create more problems than it solves. If it is selected for a process that genuinely tends to foul the diaphragm area, it can be a valuable feature for keeping the pressure measurement responsive and serviceable.
