How to Prevent Diaphragm Seal Failure

How Diaphragm Seals Transmit Pressure

A diaphragm seal separates a pressure instrument’s sensing element from the process medium while still allowing the instrument to measure process pressure. The arrangement is commonly used when direct contact between the instrument and process fluid could damage the sensing element or produce unreliable measurements.

A typical seal assembly includes a thin, flexible diaphragm exposed to the process. Behind that diaphragm is a sealed volume of fill fluid. The fill fluid extends through the seal body and, where applicable, through a capillary to the pressure gauge, switch, or transmitter.

When process pressure rises, it deflects the diaphragm toward the fill-fluid chamber. That movement displaces a small volume of fill fluid, which transmits the pressure change to the instrument sensing element. When process pressure falls, the diaphragm moves in the opposite direction and the fill-fluid pressure decreases accordingly.

This isolation is valuable when the process medium is:

Corrosive or chemically aggressive
Highly viscous or likely to coat internal passages
Sanitary, sterile, or subject to cleaning requirements
Very hot or subject to large temperature changes
Crystallizing, polymerizing, or prone to plugging impulse lines
Containing solids, fibers, or abrasive particles

A diaphragm seal does not eliminate the need for correct pressure-measurement design. Instead, it introduces a sealed pressure-transfer system that must remain chemically compatible, mechanically intact, and thermally stable enough for the required measurement.

Components That Affect Seal Performance

Several parts of the assembly affect diaphragm seal performance:

Diaphragm: The flexible wetted barrier that contacts the process and transfers pressure to the fill fluid.
Upper housing: The part of the seal body behind the diaphragm that contains the fill-fluid chamber.
Process connection: The flange, threaded connection, sanitary fitting, or other interface attaching the seal to the process.
Fill fluid: The internal pressure-transfer liquid between the diaphragm and instrument sensing element.
Capillary: A fluid-filled tube used in remote seal systems to separate the instrument from the process connection.
Instrument connection: The mechanical connection between the seal assembly and gauge, transmitter, or switch.
Sealing interfaces: Gaskets, O-rings, welded joints, threaded connections, and other boundaries that must prevent external leakage and fill-fluid loss.

Seal geometry matters because the internal volume determines how much fill fluid is displaced or thermally expanded. Diaphragm stiffness also affects how readily the seal responds to changing pressure. A stiff diaphragm may require more pressure to deflect than a more flexible design, while a very thin diaphragm may be more vulnerable to mechanical damage in severe service.

The instrument range is equally important. The same small change in fill volume can have a much larger effect on the reading of a low-pressure instrument than on an instrument with a higher full-scale range.

A direct-mounted seal attaches the instrument close to the process connection. A remote seal places the instrument away from the process using one or more capillaries. Remote arrangements can help isolate the instrument from heat, vibration, or inaccessible installation locations, but the added capillary length also adds fill volume and can increase thermal sensitivity and response time.

Common Causes of Diaphragm Seal Failure

Diaphragm seal failure may not always begin with visible leakage. In many cases, the first symptom is a measurement problem: drift, slow response, persistent offset, unstable readings, or a reading that changes when temperature changes.

Three major contributors are corrosion, temperature-related measurement error, and fill-fluid loss. Mechanical damage, installation errors, vibration, overpressure, and plugged process connections can also impair the pressure-transfer path.

A useful investigation considers the complete system rather than the diaphragm alone. Relevant factors include:

Process chemical composition and concentration
Normal and abnormal operating temperatures
Process pressure, vacuum conditions, and pressure cycling
Cleaning chemicals and sterilization procedures
Materials of all wetted and connected components
Seal construction and fill-fluid type
Instrument range and mounting arrangement
Capillary routing, insulation, and ambient exposure
Installation torque, support, and vibration conditions

A seal may remain externally intact while still producing inaccurate readings. Conversely, a small leak at a connection can develop into fill-fluid loss, process leakage, or instrument damage if it is not identified early.

Corrosion and Material Compatibility

Chemical compatibility must be evaluated for every wetted component, not only for the diaphragm. Depending on the seal design, the wetted materials may include the diaphragm, flange or process adapter, gasket, O-ring, welds, and process-connection surfaces.

Compatibility depends on more than the chemical name of the process medium. A material that performs acceptably in one service may deteriorate rapidly when concentration, temperature, contamination, aeration, or pressure changes. The evaluation should account for:

Chemical identity and concentration
Operating and cleaning temperatures
Presence of chlorides, oxidizers, acids, solvents, or contaminants
Exposure time and cycling conditions
Process pressure and erosion potential
Solids content and abrasive particles
Cleaning-in-place or sterilization media
Potential for deposits or stagnant areas

Materials sometimes considered for demanding acid service include Hastelloy B, tantalum, PTFE, and Kalrez. However, none should be treated as universally suitable. Their performance depends on the exact process chemistry and conditions, so application-specific compatibility review is necessary.

Galvanic corrosion is another concern where dissimilar metals are electrically connected in the presence of an electrolyte. Under those conditions, electrochemical action can accelerate deterioration of the less resistant material in the connected system. The risk is not limited to the diaphragm; it can involve flanges, adapters, fasteners, process piping, and other metallic connections.

For this reason, material review should cover all wetted materials and connected metal combinations, as well as the possibility of conductive process fluids, condensation, washdown exposure, or trapped liquid around the connection.

Temperature Effects on Fill Fluid and Measurement Accuracy

Fill fluid expands when heated and contracts when cooled. Because the fluid is contained within a closed seal system, thermal expansion can create a pressure change at the instrument even when the actual process pressure has not changed.

This effect may appear as an apparent offset, a gradual drift after startup, or a reading that changes with weather conditions, steam exposure, heat tracing, or process temperature cycles. It is especially important in installations where the seal is mounted on hot process piping while the instrument or capillary is exposed to a much cooler ambient environment.

The amount of temperature-related measurement error depends on several interacting factors:

Total internal fill volume
Thermal expansion characteristics of the fill fluid
Seal chamber geometry
Capillary length, diameter, and routing
Diaphragm and housing construction
Difference between process and ambient temperature
Rate and frequency of temperature change
Instrument pressure range

A larger fill volume generally creates more opportunity for fluid expansion or contraction. Long remote capillaries can therefore add thermal sensitivity, although the actual result depends on the entire assembly design and thermal environment.

Instrument range affects the significance of the error. A given apparent pressure shift represents a larger percentage of span on a lower-range instrument than on a higher-range instrument. Increasing range solely to reduce thermal effects, however, can reduce useful measurement resolution. The objective is to choose a range that safely covers expected pressure while keeping thermal fill-volume effects proportionate to the measurement requirement.

Expected thermal error should be evaluated using configuration-specific manufacturer data for the seal, fill fluid, capillary arrangement, instrument range, and expected temperature profile. General rules of thumb are not reliable substitutes for an assembly-specific assessment.

Fill-Fluid Loss and Mechanical Damage

The fill fluid must remain contained for the diaphragm seal to transmit pressure correctly. Even a partial loss of fluid can reduce accuracy, create delayed response, or prevent calibration from being maintained.

Fill-fluid leakage can result from:

Damaged gasket or O-ring sealing surfaces
Improperly installed gaskets or seals
Loose instrument or capillary connections
Cross-threaded or damaged threaded connections
Poor assembly practices
Mechanical damage during installation or maintenance
Cracked capillaries, damaged welds, or compromised fill ports

The diaphragm itself can also be damaged. Puncture, tearing, permanent deformation, fatigue from repeated pressure cycling, or distortion from overpressure can alter the relationship between process pressure and transmitted pressure.

Other mechanical issues include excessive vibration, unsupported instrument weight, bent capillaries, and blocked process connections. A blockage between the process and diaphragm can isolate the sensing surface from changing process pressure. The instrument may then appear stable while no longer representing actual operating conditions.

Common symptoms of fill-fluid loss or mechanical damage include:

Readings that no longer return to a known baseline
Delayed or sluggish response to process changes
Inability to calibrate or maintain calibration
Erratic readings during pressure changes
Visible oil or fill-fluid residue near connections
Process leakage around the process connection
Complete loss of pressure indication

How to Prevent Diaphragm Seal Problems

Preventing diaphragm seal failure begins with treating the seal, fill fluid, instrument, and installation as one pressure-measurement system. The goal is not simply to select a corrosion-resistant diaphragm, but to maintain reliable pressure transmission throughout the expected operating life of the assembly.

A prevention program should address four areas:

Process and material compatibility
Thermal conditions and measurement range
Mechanical installation and protection
Inspection, verification, and corrective maintenance

Match the Seal Assembly to Process Conditions

Start with a clear description of the process rather than a generic service label. “Acid service,” “high temperature,” or “slurry” is usually not enough information to assess diaphragm seal suitability.

Review the expected process conditions, including:

Process medium and concentration
Normal, startup, cleaning, and upset temperatures
Operating pressure and possible overpressure
Vacuum exposure or pressure reversals
Viscosity, solids content, and tendency to crystallize
Abrasion, erosion, or plugging potential
Cleaning and sterilization requirements
Process line orientation and available mounting locations

All wetted materials should be checked against the process conditions, including the diaphragm, process connection, gaskets, O-rings, and any exposed wetted surfaces. The fill fluid should also be appropriate for the application. In the event of a diaphragm breach, the potential interaction between fill fluid and process should be understood.

Thermal exposure deserves particular attention. Steam tracing, hot process piping, heat-transfer fluids, furnace-adjacent equipment, and changing ambient conditions can all affect the fill-fluid temperature. Remote capillaries should be considered part of the thermal system, not merely a mechanical extension.

Instrument range should be selected to measure the expected process pressure without making normal pressure variations too small to resolve. At the same time, the range should be evaluated for the relative effect of expected thermal fill-volume changes. A low-pressure measurement may require especially careful review of seal geometry, fill volume, and temperature exposure.

Install and Maintain the Assembly Correctly

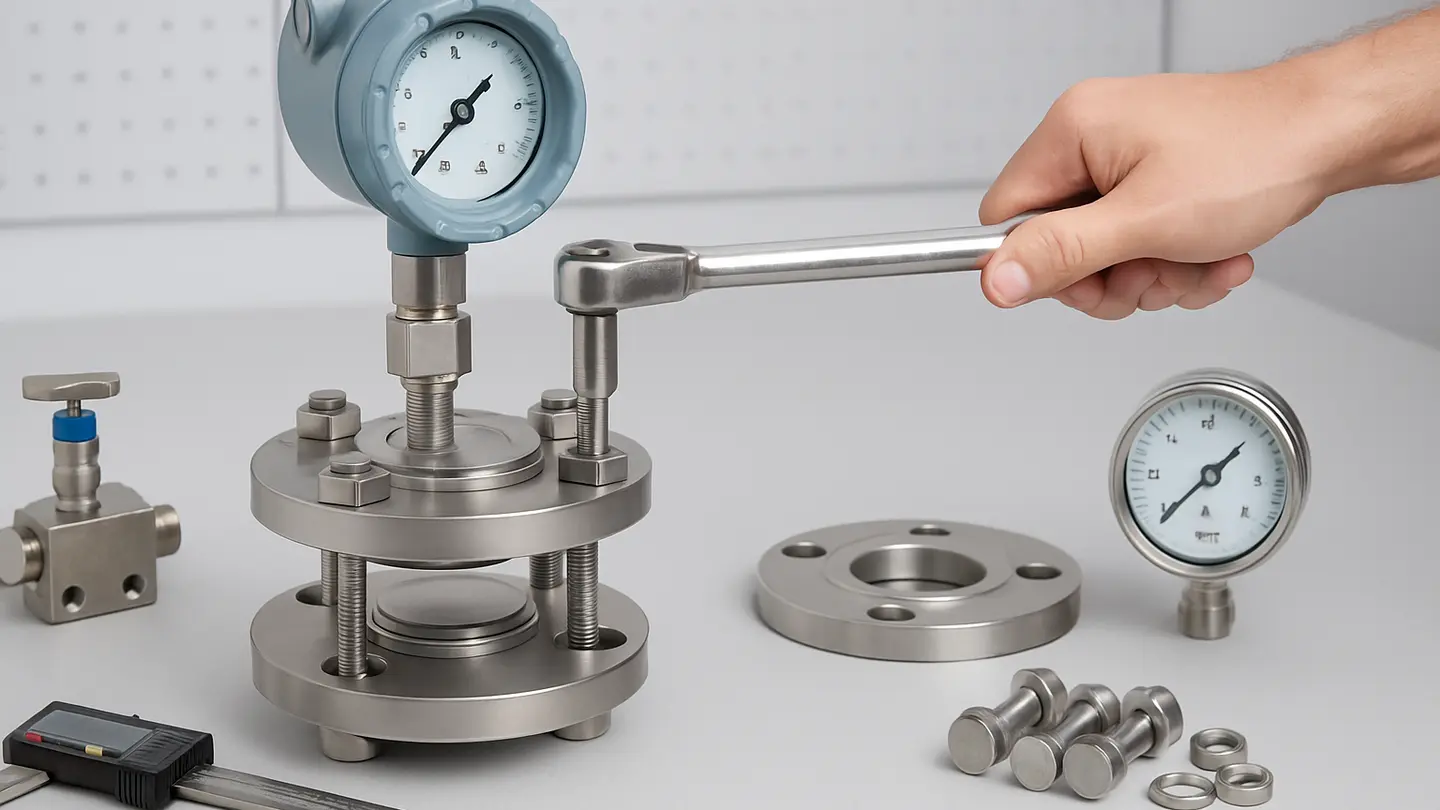

Correct installation protects both the containment boundary and the measurement path. Before commissioning, inspect sealing faces for scratches, corrosion, residue, deformation, or foreign material. Confirm that gaskets and O-rings are the intended type, properly seated, and undamaged.

Follow approved installation practices for torque, orientation, support, and connection assembly. Excessive torque can damage flanges, threads, gaskets, or diaphragms, while insufficient torque can allow leakage. The instrument and seal should not be used as structural supports for piping or adjacent equipment.

For remote seals, protect capillaries from crushing, sharp bends, abrasion, and impact. Avoid routing them through areas with severe vibration or unnecessary temperature gradients. Routing close to steam lines, hot surfaces, or direct sunlight may create avoidable thermal variation.

Periodic maintenance should include:

Visual inspection for leakage, corrosion, and physical damage
Examination of process connections and supports
Review of capillary condition and routing
Calibration or verification checks when process conditions permit
Assessment of reading stability during known operating conditions
Investigation of unexplained changes after maintenance, cleaning, or process modifications

Maintenance frequency should be based on service severity, process risk, historical performance, and site procedures rather than a universal schedule.

Diagnosing Suspected Diaphragm Seal Failure

Troubleshooting should begin with the observed measurement behavior and then move outward through the assembly. A stable but incorrect reading can indicate a process connection blockage, temperature-related offset, calibration issue, or diaphragm deformation. An unstable reading may point to vibration, intermittent leakage, loose connections, or rapidly changing process conditions.

Useful symptoms to investigate include:

Unstable or noisy readings
A persistent zero shift or offset
Slow response to known process changes
Readings that vary with process or ambient temperature
Visible leakage or fill-fluid residue
Damaged capillaries, connections, or sealing surfaces
Suspected blockage at the process connection
Failure to calibrate or repeated loss of calibration

Where safe isolation and site procedures permit, compare the installed measurement with a suitable reference. The reference should be appropriate for the pressure range and installation conditions. Do not attempt to loosen connections, remove instruments, or disturb a seal assembly on a pressurized or hazardous process without approved isolation, depressurization, and safety controls.

If the reading changes mainly during heat-up, cool-down, washdown, or changes in ambient conditions, evaluate thermal effects before assuming the instrument itself has failed. Review capillary routing, insulation, process temperature, and the difference between instrument and seal temperature.

If response is slow, inspect for plugged process passages, viscous deposits, crystallization, or diaphragm deformation. If leakage is present, treat it as both a measurement problem and a containment concern.

Damaged diaphragms, lost fill fluid, and compromised sealed assemblies may require evaluation, repair, or replacement by qualified personnel. Attempts to refill, reseal, or recalibrate a damaged assembly without proper equipment and procedures can introduce additional error or create a process safety risk.
