Data Center Differential Pressure Sensor Accuracy

Application context

Large data center operators often rely on low differential pressure sensing as part of their cooling control and facility monitoring strategy. In these environments, relatively small pressure differences can indicate whether air is moving in the intended direction between cooling zones, aisles, cabinets, plenums, and building spaces. A sensor that is suitable for ordinary HVAC monitoring may not always provide the stability needed when the measurement is used to support cooling decisions across many facilities.

In a typical hot aisle/cold aisle arrangement, differential pressure readings help operators verify that pressure relationships are consistent with the cooling design. For example, pressure taps may be placed between a cold aisle and a hot aisle, across containment boundaries, or at the front and rear of server cabinets. These measurements can support airflow monitoring, building pressure monitoring, and containment management. They can also help operators identify abnormal pressure conditions that may be related to blocked airflow paths, fan performance changes, leakage, or cooling imbalance.

It is important to distinguish differential pressure from airflow volume. A differential pressure sensor measures the pressure difference between two points. It does not directly measure volumetric airflow. However, pressure difference can still be a useful indicator of whether air is likely to move from one zone to another and whether the intended pressure relationship is being maintained. When combined with temperature data, fan status, damper position, and control system trends, differential pressure becomes part of a broader picture of cooling performance.

For a large technology operator managing multiple data centers, reliable pressure measurement can affect temperature control, energy use, and operational consistency. If differential pressure readings drift, fluctuate, or disagree with expected conditions, the cooling control system may receive misleading information. Technicians may then spend time investigating sensors rather than actual airflow problems. In the case considered here, observed instability and drift prompted the customer to reassess whether the installed sensors were appropriate for low-pressure data center service.

The issue was not simply whether the sensors produced an output signal. The question was whether they could maintain dependable readings in a low differential pressure range over time, under the installation conditions present in data center cooling systems. That question is central to data center differential pressure sensor accuracy, because small zero shifts or range-related errors can become significant when the measured pressure difference is very low.

Measurement problem

The installed differential pressure sensors were producing measurement errors outside the tolerance considered acceptable for the application. Some reported errors were above 1% of the required accuracy, which was enough to create concern about the usefulness of the readings for cooling control and monitoring. In low differential pressure work, even a small apparent offset can represent a meaningful portion of the measurement span. A reading that looks only slightly wrong in absolute pressure units may still be large enough to affect trend interpretation, alarm thresholds, or balancing decisions.

The operational consequence was repeated service attention. Technicians had to inspect affected devices and re-zero them again and again. Re-zeroing can be a normal part of pressure sensor maintenance, but frequent intervention increases labor, creates inconsistency between sites, and can reduce confidence in the monitoring system. If a sensor must be repeatedly checked before its output can be trusted, it becomes less useful as a continuous monitoring device.

The customer did not want to replace a large installed base without first understanding the available options. Before committing to a broad replacement, the operator needed to compare suppliers, sensor designs, and installation features. The desired replacement had to provide better stability, repeatability, and accuracy appropriate to the actual low-pressure operating range. A local display was also required so technicians could see the measured value at the device without relying only on the building management system or remote interface.

Calibration and verification were also part of the problem. Low-pressure calibration is more difficult than many higher-pressure checks because the test setup must generate and hold very small pressure differences. Stable low-pressure generation, accurate reference standards, and leak-free tubing are essential. Manual methods and improvised setups can introduce small leaks or unstable pressure conditions, which may be mistaken for sensor error or may hide a real sensor problem.

For this reason, the measurement problem had two sides. First, the sensor needed better intrinsic performance in the low differential pressure range. Second, the installation and calibration method needed to support reliable verification without adding unnecessary leak points or service complexity. A technically suitable solution had to address both.

Assessment of the installed sensors

The existing instruments used a multi-range design. This type of device allows one sensor model to cover several selectable pressure ranges, usually through switch settings, jumpers, software configuration, or similar setup options. Multi-range instruments can be attractive for facility work because they simplify purchasing and inventory. A maintenance team can stock fewer part numbers and configure a device for different locations as needed.

That convenience can come with tradeoffs. A sensor that is designed to cover several ranges may not perform equally well at every selected span, especially when the application is near the low end of the device’s capability. When a pressure transducer is optimized for a broader or higher pressure range, it may lose useful resolution or accuracy in ultra-low differential pressure service. In data centers, many important pressure measurements are small enough that zero stability becomes especially important.

Zero stability describes the ability of the sensor output to remain steady when the true differential pressure is zero, or near zero. In a continuously monitored cooling system, the zero point is not just a calibration detail. It is the baseline from which small pressure differences are interpreted. If the zero point drifts, the system may indicate a pressure relationship that does not actually exist, or it may mask a real change.

Accuracy and temperature-related deviations can also become more significant at certain selected ranges. If the same device is configured for a lower span, fixed offsets, temperature effects, and zero shifts may represent a larger percentage of the measurement. This is one reason a data sheet must be read carefully. A general accuracy statement may not fully describe how the device behaves at every range setting, at low pressure, or under changing ambient conditions.

Persistent drift reduced confidence in the airflow-related measurements and in the control decisions based on those readings. A building management system can only respond to the information it receives. If pressure readings are unstable, operators may become unsure whether a trend represents a real airflow condition or a sensor artifact. Over time, this can lead to more manual checks, wider alarm tolerances, and less effective use of the measurement.

A level of instability that might be acceptable in general HVAC service may be unacceptable for critical data center airflow control. In a commercial comfort system, a small pressure offset may have limited operational consequence. In a data center, where pressure relationships help protect cooling distribution and containment performance, the same offset can be more consequential. The assessment therefore focused on whether the installed multi-range sensors were matched to the actual low differential pressure task, not whether they were generally capable HVAC instruments.

Selected measurement approach

The customer tested a differential pressure transducer selected specifically for the operating range required by the data center cooling application. Instead of prioritizing broad configurability, the evaluation focused on range fit, low-pressure stability, repeatability, and field usability. This approach recognized that accurate low differential pressure measurement depends on matching the sensor to the expected measurement span, not simply choosing a device that can be configured to include it.

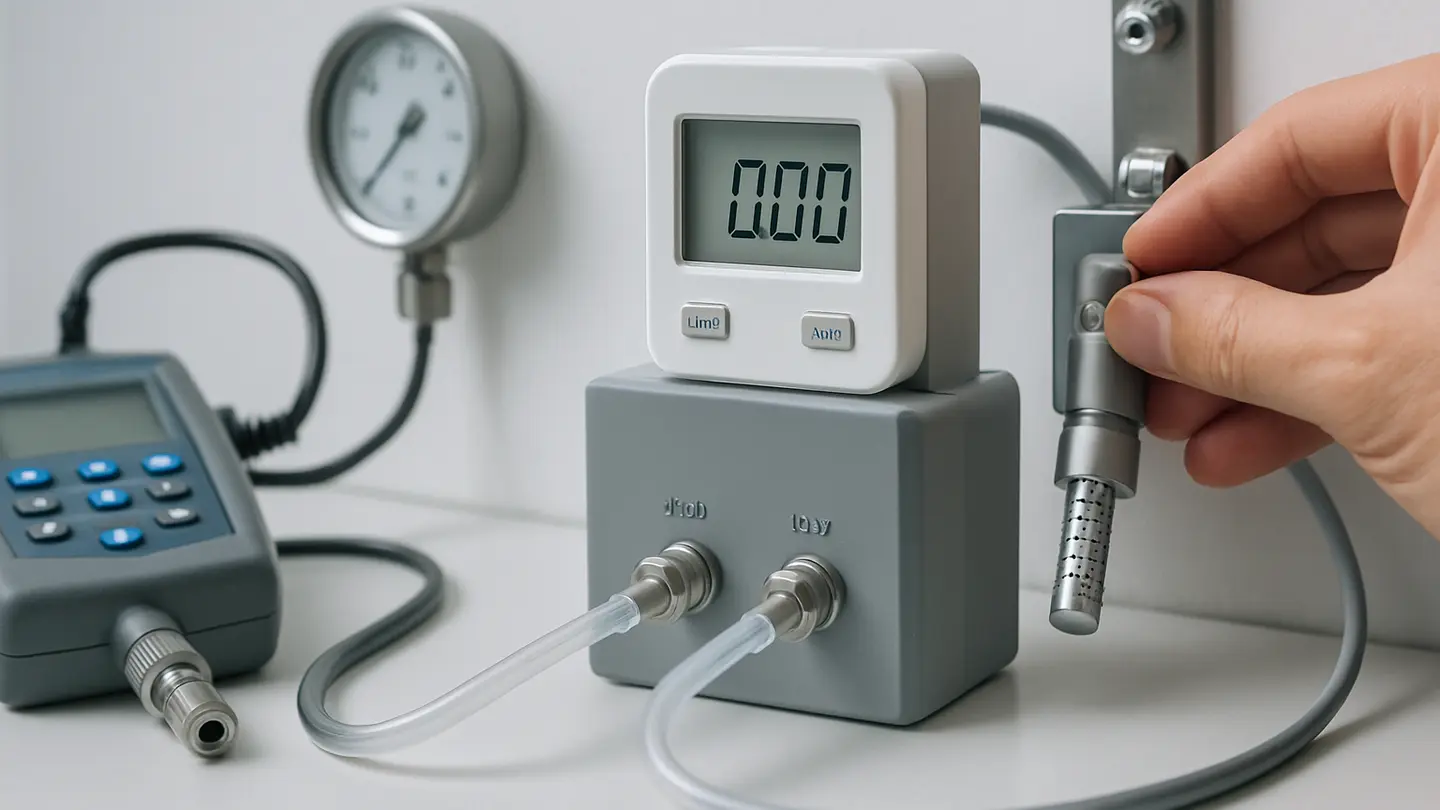

The recommended instrument combined stable low-pressure measurement with an integrated local display. The display mattered because field technicians need immediate visibility during commissioning, troubleshooting, and verification. A local indication allows the technician to compare the device reading with a reference or with the building management system value at the point of installation. This can shorten diagnostic work and reduce uncertainty about whether a problem is in the sensor, wiring, controller scaling, or remote display.

In-place calibration was another important feature. In many installations, removing a differential pressure sensor from service or disconnecting process tubing creates additional work and risk. Tubing may be routed through panels, connected to remote pressure pickup points, or installed in tight mechanical spaces. Each disconnection and reconnection is an opportunity to introduce a leak, reverse a connection, disturb a fitting, or change the installation condition.

An in-place calibration arrangement can support verification while the transducer remains connected to the process tubing. Depending on the installation, this may reduce the need for additional tubing runs, isolation hardware, external shutoff valves, and multiple temporary connections. In low differential pressure measurement, reducing leak points is especially valuable because very small leaks can affect calibration stability and make readings difficult to verify.

The selected sensor technology used a single-crystal silicon diaphragm without organic bonding materials in the sensing element. At a high level, the diaphragm is the element that deflects in response to pressure difference. Its mechanical stability, material properties, and construction influence repeatability and long-term behavior. A sensing element that avoids glues or other organic materials in the pressure-sensing structure may reduce some sources of creep, aging, or bonding-related instability. The practical purpose is not novelty; it is to improve stability and repeatability in a low-pressure measurement where small changes matter.

The selected approach also recognized that calibration quality depends on the whole measurement chain. A stable low-pressure source is needed. A suitable reference standard is needed. The tubing and connections must be leak-free. The calibration method should be practical enough that technicians can perform verification consistently across installations. A highly accurate sensor can still be difficult to maintain if the field calibration setup is awkward or prone to leakage.

By testing an instrument designed for the actual range and maintenance environment, the customer moved from a general-purpose selection process to an application-specific one. This is often the better path for critical low differential pressure applications: define the pressure range, define the acceptable uncertainty and stability requirements, then evaluate sensor technology and installation features against those needs.

Outcome of the evaluation

After testing, the customer standardized on a single-range differential pressure transducer with an integrated display. The move to a single-range device reflected the importance of matching the calibrated span to the actual measurement requirement. Rather than relying on a configurable instrument to serve many possible ranges, the selected device was chosen for the low differential pressure range used in the cooling application.

The selected sensor technology addressed the prior concerns about stability and repeatability. The earlier installation had created recurring doubts because of drift and repeated re-zeroing. A more stable sensing element, combined with range-appropriate calibration, improved confidence that observed changes in pressure were more likely to represent real operating conditions rather than sensor instability.

The integrated display supported field work by giving technicians local access to the measured value. This is useful during commissioning, periodic verification, troubleshooting, and retrofit activity. If the local display and control system value do not agree, the technician can investigate signal scaling, wiring, controller configuration, or communication issues. If the sensor output itself is questionable, the local display provides a direct point of comparison during calibration.

In-place calibration also supported easier verification and servicing for both new installations and retrofit work. In new installations, it can simplify the layout by reducing the need for external calibration hardware. In retrofit work, it can reduce disruption because the technician may not need to disconnect existing process tubing to perform a check. Fewer connections and less tubing disturbance can also reduce the chance of leaks, which is especially important when verifying low differential pressure readings.

The outcome was not based on a single feature alone. The improvement came from better alignment among operating range, sensor technology, display needs, and maintenance requirements. Low-pressure data center applications do not benefit from accuracy specifications that are difficult to maintain in the field. They require an instrument and service method that remain practical across multiple locations and over time.

As a result, the operator gained greater confidence in differential pressure readings and simplified future calibration and service activities. The selected approach made it easier to treat pressure readings as dependable inputs to cooling monitoring and control, rather than as values that frequently required manual confirmation. For a multi-facility operator, that consistency can be as important as the performance of any single device.

Practical lessons

Improving data center differential pressure sensor accuracy starts with application fit. The pressure range, sensor technology, installation arrangement, calibration method, and maintenance workflow all affect the final result. A sensor should not be selected only because its published range includes the desired pressure. It should be evaluated for how well it performs at the actual operating span, especially near zero differential pressure.

Zero stability and repeatability are critical. In many data center cooling measurements, the pressure differences are small, and the control value comes from detecting subtle changes or maintaining a narrow pressure relationship. Instability near zero can create apparent pressure differences that are not real. It can also hide small real changes that should be investigated. When this happens, technicians may compensate by recalibrating more often, widening alarm limits, or relying less on the measurement.

The instrument should be calibrated for the pressure range required by the application. A device that is accurate over a broad span may not provide the best performance at a much smaller selected range. For low differential pressure service, the calibrated range should match the expected operating conditions as closely as practical, while still allowing for expected excursions. This improves usable resolution and reduces the relative effect of fixed offsets.

Single-range low-pressure sensors may be preferable where high stability is required. This does not mean multi-range sensors are unsuitable for all applications. Multi-range instruments can be useful where inventory simplification and flexibility matter more than the highest low-pressure performance. However, when a multi-range device is considered for data center cooling control, the buyer should review accuracy, zero stability, repeatability, and temperature effects across the specific selected range, not only at the broad product-family level.

Calibration method should be part of the selection process. Low-pressure verification requires stable pressure generation, accurate reference standards, and leak-free connections. A calibration setup that works well for higher pressures may be frustrating or unreliable at very low differential pressures. In-place calibration features can reduce tubing disturbance, limit potential leak points, and make routine verification more practical.

A local display can also be valuable. Remote monitoring is essential in modern facilities, but field technicians still benefit from seeing the measurement at the installed device. A display helps during setup, loop checks, troubleshooting, and comparison with reference instruments. It can also reduce unnecessary replacement when the real issue is wiring, scaling, or controller configuration.

For multi-facility deployments, maintenance impact should be considered before standardizing on a sensor. A device that requires frequent re-zeroing at one site can become a significant burden when multiplied across many facilities. Consistent calibration procedures, fewer leak-prone connections, clear local indication, and range-appropriate sensor performance all help reduce long-term service effort.

Differential pressure sensors in data centers support cooling control, containment verification, and early detection of airflow or pressure issues. They do not directly measure airflow volume, but they provide important information about pressure relationships that influence cooling behavior. Because these measurements often operate at very low pressure differences, long-term stability is not a secondary feature. It is a core requirement for dependable monitoring and control.
