ASME Accuracy Grades for Mechanical Pressure Gauges Explained

Why ASME Accuracy Grades Matter

ASME accuracy grades for mechanical pressure gauges provide a common language for describing how closely a gauge indication is expected to match the true pressure under defined reference conditions. Without a standardized grading system, one manufacturer’s “accurate” gauge could be difficult to compare with another manufacturer’s gauge, especially when the instruments have different ranges, dial sizes, or intended uses.

A key reference for this subject is ASME B40.100, which covers pressure gauges, vacuum gauges, and gauge attachments. In the context of mechanical dial gauges, the standard defines accuracy grades that express the allowable variation in indication as a percentage of the gauge span. This does not mean that every gauge performs identically at every point on the dial. Rather, it gives users a structured way to understand the maximum permitted error for a given grade and scale region.

Accuracy grade matters because pressure gauges are used for many different functions. In some installations, a gauge provides only a general local indication that a system is pressurized. In others, it may support process control, troubleshooting, equipment protection, safety-related monitoring, calibration checks, acceptance testing, or regulatory documentation. The accuracy needed for a utility air line is not necessarily the same as the accuracy needed for a calibration bench or a critical verification point.

The grade also affects how a gauge should be interpreted. A technician reading a low-accuracy gauge should avoid treating small pointer changes as meaningful if those changes are within the allowable tolerance of the instrument. Conversely, a high-accuracy test gauge may be suitable for detecting smaller deviations, provided it is used within its intended range and maintained appropriately.

ASME grades are therefore not only purchasing labels. They are part of the measurement specification. They help define whether a gauge is appropriate for the measurement task, how much confidence can be placed in its indication, and whether the instrument can support the decisions being made from that reading.

In industrial settings, this can influence several practical areas:

• Process control: A gauge with insufficient accuracy may hide meaningful pressure changes or suggest changes that are not actually present.
• Safety-related monitoring: Pressure limits may need to be observed with enough confidence to avoid unsafe operation.
• Calibration and verification: Reference or test gauges require tighter tolerances than ordinary indication gauges.
• Compliance and inspection: Documented measurement performance may be needed to demonstrate that pressure readings are reliable enough for the application.

The central principle is that an accuracy grade defines an allowable indication error, not a guarantee that the gauge is ideal in every condition. Real-world performance can also be affected by vibration, temperature, pulsation, mechanical wear, overpressure, installation practices, and readability. The ASME grade is a starting point for comparison, but it must be considered together with the service environment and measurement purpose.

How ASME Gauge Accuracy Is Stated

ASME gauge accuracy is normally stated as a percentage of gauge span. Gauge span is the numerical difference between the lower and upper limits of the scale. For a simple 0 to 100 psi gauge, the span is 100 psi. If that gauge has an accuracy of ±1% of span, the allowable indication error is ±1 psi across the stated range, assuming the grade applies to the full scale.

This distinction is important: percent of span is not the same as percent of reading. With percent-of-span accuracy, the allowed error is based on the total range of the gauge, not the pressure currently being indicated. A 0 to 100 psi gauge with ±1% of span accuracy has an allowable error of ±1 psi whether the pointer is near 20 psi, 50 psi, or 90 psi, if the accuracy applies uniformly across the full scale.

ASME accuracy grades can be stated in two general ways:

1. Single full-scale tolerance
2. Segmented tolerance across different portions of the dial

A single full-scale tolerance applies the same allowable error across the entire span. For example, a gauge specified as ±1% of span has one tolerance value for the full scale. This type of expression is used for higher ASME grades such as 4A, 3A, 2A, and 1A.

A segmented tolerance divides the dial into regions. In ASME grading, some grades use separate tolerances for:

• the lower quarter of the scale,
• the middle half of the scale,
• the upper quarter of the scale.

A common example is ±2%, ±1%, ±2% of span. This means the gauge is allowed a larger error in the lower quarter and upper quarter of the scale, while the middle half has a tighter allowable error. This segmented form reflects the behavior of many mechanical pressure gauges: they are typically most accurate near the middle of their operating range and less accurate near the low and high ends of the dial.

For a 0 to 100 psi gauge with a segmented tolerance of ±2%, ±1%, ±2% of span, the scale regions would be interpreted conceptually as:

The exact reading practice still depends on the gauge scale markings, pointer resolution, and how the instrument is installed and observed. A highly accurate movement cannot overcome a dial that is too small to read clearly from the operator’s position. Similarly, a gauge exposed to vibration or pressure pulsation may be harder to interpret even if its nominal accuracy grade is adequate.

The use of span-based tolerances also explains why range selection affects practical measurement quality. If the pressure of interest is very small compared with the full span of the gauge, the allowable error may be large relative to the reading. For example, a ±1% of span tolerance on a high-range gauge may be acceptable near the middle of the dial but too coarse for precise low-pressure observation. This is one reason mechanical gauges are often selected so that normal operating pressure falls in a readable and accurate portion of the scale rather than at the extreme low end.

In short, ASME accuracy is not just a number. It is a statement about allowable indication error relative to span and, for some grades, relative to position on the dial.

Common ASME Accuracy Grade Examples

ASME grades provide a tiered system ranging from high-accuracy reference-type gauges to lower-cost indication gauges. The grades are commonly identified by letter-number designations such as 4A, 3A, 2A, 1A, A, and B. The tighter grades use one tolerance across the full span, while grades such as A and B use segmented tolerances across the dial.

The following examples summarize several common ASME accuracy grades and their typical measurement roles.

Grade 4A corresponds to ±0.1% of span across the entire dial. This is a very tight accuracy grade for mechanical pressure gauges and is associated with laboratory, metrology, primary reference, or high-accuracy calibration applications. A gauge in this class is typically used where small pressure differences matter and where the instrument’s performance must support traceable or carefully controlled measurement work. The gauge itself is only one part of that measurement system; proper calibration, environmental control, and careful handling are also important.

Grade 3A corresponds to ±0.25% of span across the entire dial. This grade is commonly associated with secondary reference standards, high-accuracy test gauges, and critical process verification. It is less stringent than 4A but still much more precise than ordinary industrial indication gauges. Grade 3A may be used where a technician needs to verify process instruments, compare pressure readings, or make decisions that require a relatively small allowable error.

Grade 2A corresponds to ±0.5% of span across the entire dial. This grade is often used where a higher level of industrial measurement confidence is required but reference-grade accuracy is not necessary. It may fit test, inspection, or process applications where the gauge reading must be more dependable than a basic indicator but does not need to function as a primary standard.

Grade 1A corresponds to ±1% of span across the entire dial. This is a common accuracy level for many industrial and general process measurement uses. Because the tolerance applies across the full span, it is easy to interpret. A 0 to 100 psi gauge with Grade 1A accuracy would have an allowable indication error of ±1 psi across the dial, based on span.

Grade A corresponds to ±2% / ±1% / ±2% of span across the lower quarter, middle half, and upper quarter of the scale. This segmented tolerance reflects the fact that the gauge has better accuracy in the middle half of the dial than at the ends. Grade A can be useful for general industrial service where the normal operating pressure is expected to fall near the middle of the gauge range and where tighter full-scale accuracy is not required.

Grade B corresponds to ±3% / ±2% / ±3% of span across the lower, middle, and upper scale portions. Grade B is generally selected where basic indication, low cost, durability, or readability matters more than high precision. In many applications, the operator only needs to confirm that pressure is present, rising, falling, or within a broad acceptable range. For those cases, a higher-accuracy gauge may add cost without improving the practical decision being made.

These grade examples show why the grade designation should not be read in isolation. A Grade B gauge is not inherently “bad,” and a Grade 4A gauge is not automatically “best.” Each grade represents a different balance between measurement precision, instrument cost, intended use, and operating conditions.

It is also important to remember that the grade describes accuracy as a percentage of span. The same grade produces different absolute error values on different pressure ranges. For example, ±1% of span on a 0 to 100 psi gauge is a different absolute pressure tolerance than ±1% of span on a 0 to 1,000 psi gauge. The grade is the same, but the allowable error in psi is not.

Why the Chosen Accuracy Grade Affects Performance

Selecting the appropriate ASME accuracy grade helps balance measurement reliability, cost, and operational risk. A gauge that is too inaccurate for the task can mislead operators or technicians. A gauge that is much more accurate than necessary can increase procurement, calibration, and maintenance costs without producing a meaningful process benefit.

The most stringent accuracy grade is not automatically the best choice for every pressure measurement application. High-accuracy gauges are valuable when the measurement function requires low uncertainty, but they may also demand more careful handling, more frequent verification, better environmental control, or more expensive calibration support. If the gauge is being used only as a rough local indicator, the extra precision may not improve safety, uptime, or product quality.

Over-specifying accuracy can create several inefficiencies. A plant may pay for a high-grade gauge in a location where the process naturally fluctuates more than the gauge tolerance. A maintenance team may need to calibrate or protect an instrument whose precision is not actually used. A gauge may be installed in a harsh location where vibration, pulsation, or mechanical damage dominates the measurement uncertainty, making the nominal accuracy grade less meaningful in practice.

Under-specifying accuracy can cause more serious technical problems. If the gauge tolerance is too wide for the process requirement, operators may believe pressure is acceptable when it is outside the desired range. In process control, this can contribute to unstable operation, poor repeatability, inefficient energy use, or inconsistent product conditions. In verification work, a low-accuracy gauge may not be suitable for judging whether another instrument is within tolerance.

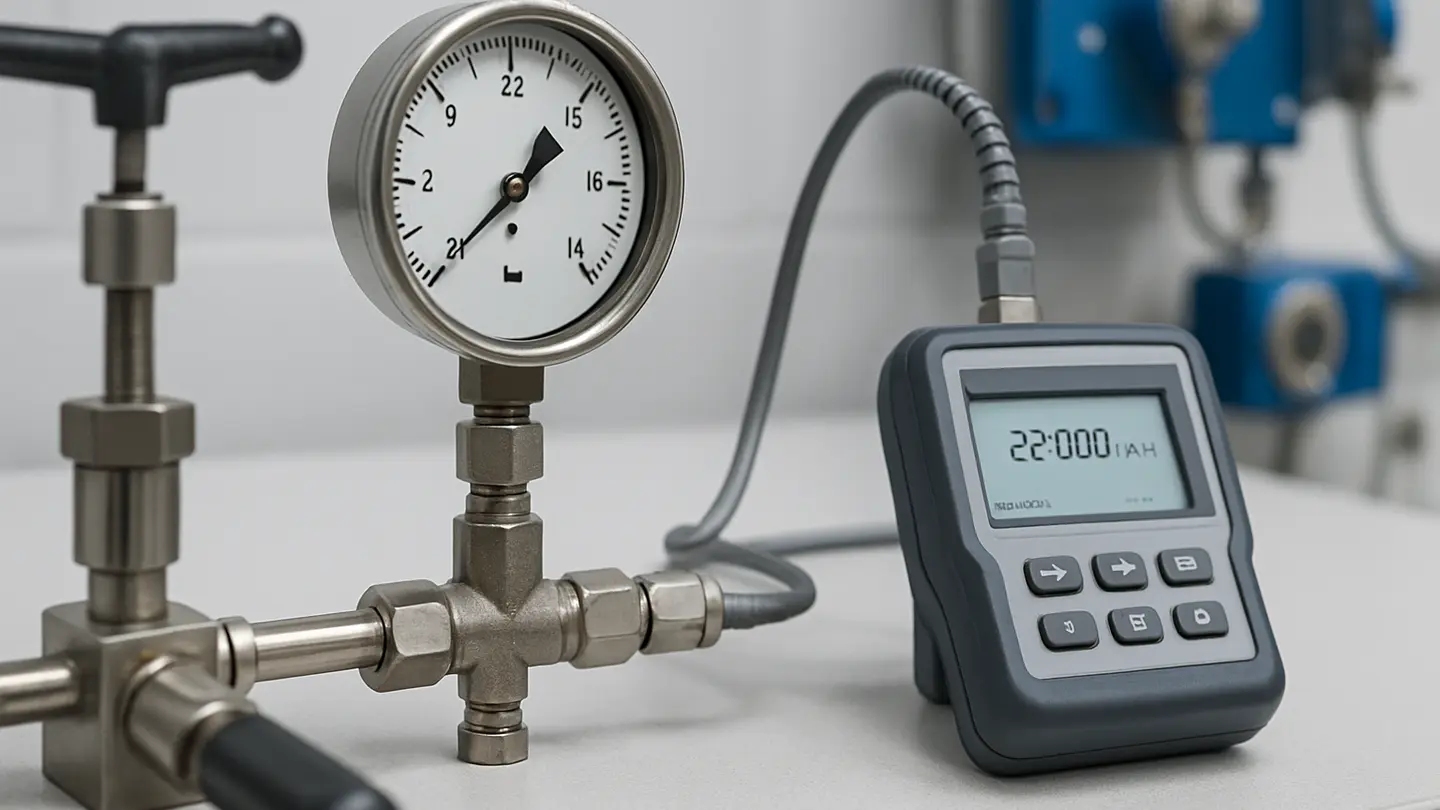

Calibration decisions are especially sensitive to gauge accuracy. If a gauge used as a comparison standard is not accurate enough, it can lead to incorrect acceptance or rejection of other instruments. A pressure transmitter, switch, or relief-related setting may appear acceptable when it is not, or it may be adjusted unnecessarily because the reference indication is not reliable enough. This is why test and reference gauges normally require tighter grades than ordinary field indication gauges.

Audit and inspection outcomes can also be affected. Where pressure readings support documented procedures, compliance checks, or quality records, the instrument’s accuracy must be appropriate for the required decision. A gauge that cannot demonstrate adequate accuracy for the measurement function may weaken the credibility of recorded data or inspection evidence.

The chosen grade also affects how users interpret readings across the dial. With segmented grades such as A and B, the middle of the scale has a tighter tolerance than the lower and upper portions. If normal operating pressure occurs in the lower quarter of the scale, the practical measurement uncertainty may be larger than expected. A gauge may appear suitable based on its middle-scale accuracy but be less suitable if the process normally operates near the low end.

This does not mean every system needs the tightest grade available. Instead, the grade should match the consequence of measurement error. A noncritical visual indicator can tolerate more uncertainty than a calibration reference. A gauge used to monitor a narrow control band needs better accuracy than one used only to confirm that pressure is approximately present. A gauge used in a harsh field environment may need ruggedness, vibration resistance, chemical compatibility, or readability as much as it needs a tight tolerance.

Accuracy grade is therefore one part of performance, not the entire performance story. Mechanical pressure gauges are physical instruments with elastic elements, linkages, pointers, dials, and cases. Their real-world behavior depends on both the stated grade and the conditions under which they are used.

Main Point to Remember

ASME accuracy grades give users a standardized basis for comparing mechanical pressure gauges. They define allowable indication error as a percentage of span and, for some grades, show how that allowable error changes across the lower, middle, and upper portions of the dial.

Understanding these grade definitions helps match a gauge to its intended measurement function. Grade 4A and Grade 3A are associated with reference, calibration, and high-accuracy verification roles. Grade 2A and Grade 1A support industrial and general process measurement where full-scale accuracy is useful. Grade A and Grade B use segmented tolerances and are often applied where mid-scale indication or basic local readability is sufficient.

The best choice is not simply the tightest tolerance. Gauge selection should balance accuracy, ruggedness, readability, maintainability, and cost. Over-specifying accuracy can add expense without improving the process, while under-specifying accuracy can contribute to poor control, failed inspections, or incorrect calibration decisions.

Accuracy grade should also be evaluated alongside pressure range, construction materials, process compatibility, environmental conditions, vibration, pulsation, dial size, installation location, and applicable standards. When these factors are considered together, ASME accuracy grades become a practical tool for selecting and interpreting mechanical pressure gauges rather than just a label on a datasheet.
